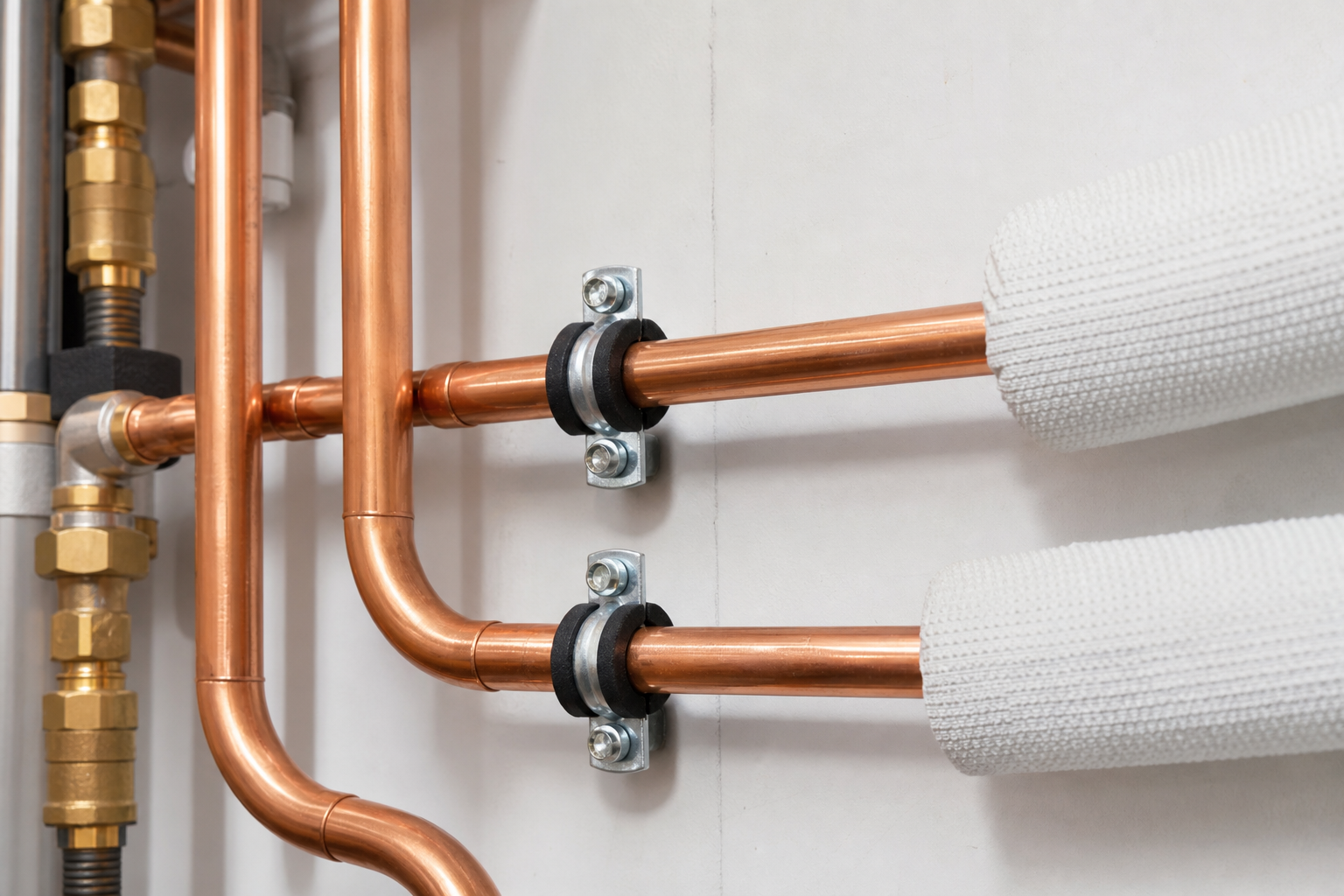

Soft Drawn Copper Tube: ACR Installation Best Practices

Understanding ACR Copper Tubing Fundamentals

Air conditioning and refrigeration (ACR) copper tubing represents a specialised category of copper pipework engineered explicitly for HVAC-R applications. Unlike standard plumbing copper, ACR tubing arrives in a dehydrated and nitrogen-charged state, ensuring internal cleanliness and preventing oxidation during storage. This distinction proves paramount for refrigeration circuits where even minute contaminants can compromise system efficiency and longevity.

Soft drawn copper tube exhibits exceptional malleability, permitting field bending without specialised equipment whilst maintaining structural integrity. The annealing process during manufacture renders the copper ductile, facilitating installation in confined spaces where rigid pipework would prove impractical. HVAC engineers and refrigeration technicians must appreciate these fundamental characteristics before commencing any installation work.

The material's inherent properties include superior thermal conductivity, corrosion resistance, and compatibility with refrigerants and lubricants employed in contemporary systems. These attributes make ACR copper tubing the predominant choice for connecting condensing units, evaporator coils, and ancillary components within air conditioning installations.

Pre-Installation Preparation and Planning

Meticulous preparation constitutes the cornerstone of successful ACR copper tube installation techniques. Before manipulating any tubing, technicians should verify that all materials remain sealed and contamination-free. Examining the tube ends for cleanliness and ensuring protective caps remain intact prevents ingress of moisture, particulates, or atmospheric contaminants that could jeopardise refrigeration circuit integrity.

Route planning demands careful consideration of several factors: accessibility for future maintenance, thermal expansion allowances, vibration dampening requirements, and compliance with building regulations. Sketching the proposed pipework route whilst identifying potential obstacles minimises rectification work later. Consideration must extend to securing adequate clearances from heat sources, electrical conduits, and structural elements that might induce mechanical stress on the installation.

Assembling the appropriate tooling represents another critical preparatory step. Quality pipe cutters, deburring implements, bending springs or formers, flaring tools, and brazing equipment should be inspected and staged before commencement. Substandard tools invariably yield substandard results, potentially compromising joint integrity or introducing contaminants into the refrigeration system.

Material Selection Considerations

Selecting the correct tube diameter, wall thickness, and temper for the specific application requires understanding system pressures, refrigerant type, and installation environment. Soft drawn copper proves ideal for installations requiring bends and flexibility, whilst hard drawn variants suit long straight runs where rigidity provides structural advantage. Consulting manufacturer specifications and refrigerant circuit design calculations ensures optimal material selection.

Premium ACR Copper Solutions for Professional Installations

For HVAC engineers seeking reliable, specification-compliant copper tubing, the Lawton Refrigeration Copper Coil represents an exemplary choice for soft drawn ACR installations. This product arrives fully dehydrated and sealed, maintaining the pristine internal condition essential for refrigeration applications. The soft temper facilitates field bending whilst retaining the dimensional stability required for creating leak-free brazed connections.

Manufactured to BS EN 12735 standards, this copper coil eliminates concerns regarding material compliance and quality assurance. The consistent wall thickness and concentricity ensure predictable performance when forming, flaring, or brazing connections. For technicians undertaking multiple installations or maintenance contracts, having dependable stock from a supplier offering fast UK delivery proves invaluable for maintaining project schedules and client satisfaction.

ACR Copper Tube Installation Techniques

Executing proper cutting methodology establishes the foundation for quality installations. Employing a sharp, purpose-designed tube cutter ensures perpendicular cuts with minimal deformation. Gradual tightening whilst rotating the tool around the tube produces clean cuts without work-hardening the copper or creating excessive burrs. Hacksaw usage should be avoided as it introduces swarf, distorts tube geometry, and compromises joint quality.

Deburring constitutes a non-negotiable step following every cut. Internal burrs create turbulence in refrigerant flow, generate pressure drops, and can dislodge to circulate within the system as contaminants. External burrs interfere with fitting seating and prevent proper capillary action during brazing. A dedicated deburring tool removes these imperfections swiftly whilst maintaining tube roundness.

Bending Without Compromising Integrity

Achieving smooth, kink-free bends in soft drawn copper requires technique and appropriate tooling. For tubes up to 15mm outside diameter, quality bending springs provide adequate support when inserted fully into the tube. The spring prevents collapse whilst permitting gradual arc formation. Bends should be executed slowly, avoiding exceeding the minimum bend radius specified for the tube diameter—typically five times the outside diameter for soft temper copper.

Lever-type tube benders offer superior control and consistency, particularly for larger diameter tubes or when multiple identical bends are required. These tools cradle the tube whilst applying force through calibrated leverage, producing uniform bends without flattening or wrinkling. Regardless of method employed, verifying tube roundness post-bending ensures unrestricted refrigerant flow.

Flaring and Swaging Procedures

Creating flared connections demands precision to achieve leak-proof mechanical joints. The tube end must be cut square, thoroughly deburred, and inserted into the flaring tool block at the precise projection distance specified by the tool manufacturer. Under-projection yields insufficient flare material; over-projection results in thin, crack-prone flares.

Applying a thin film of refrigeration-grade oil to the flaring cone facilitates smooth metal flow and prevents galling. Advancing the cone gradually whilst checking flare formation ensures even material distribution. The completed flare should exhibit a smooth, bell-shaped profile without cracks, splits, or irregular thickness. Any imperfections necessitate cutting back and reflaring.

Swaging operations, which enlarge tube ends to accept direct insertion of same-diameter tubes, require similar attention to cleanliness and gradual tool advancement. Lubricating the swaging punch and working incrementally prevents splitting whilst achieving the slight interference fit necessary for strong brazed joints.

Brazing Excellence in ACR Applications

Brazing constitutes the preferred permanent joining method for ACR copper installations, offering superior strength and leak resistance compared to soft soldering. The process involves heating the joint area until the brazing alloy flows through the precisely dimensioned gap between fitting and tube via capillary action, creating a metallurgical bond.

Joint preparation determines brazing success. Both tube and fitting surfaces must be cleaned to bare metal using abrasive cloth or purpose-designed cleaning tools. Chemical cleaners should be avoided as residues can contaminate the refrigeration circuit. The tube should slide into the fitting with minimal resistance—excessive tightness prevents proper filler metal penetration; excessive clearance causes weak joints.

Filler Metal Selection

Selecting appropriate brazing alloy depends on refrigerant type, system pressures, and joint configuration. Phosphorus-copper alloys (BCuP) prove suitable for copper-to-copper joints in many ACR applications, offering the advantage of being self-fluxing. Silver-bearing alloys (BAg) provide superior flow characteristics and lower working temperatures but require flux application for copper joints.

Heating and Joint Execution

Applying heat uniformly around the joint circumference whilst avoiding localised overheating preserves copper properties and prevents oxidation. Oxy-acetylene or MAPP gas torches provide adequate temperature control for most installations. The flame should be directed primarily at the fitting rather than the tube, as the heavier mass requires more energy to reach brazing temperature.

Introducing filler metal at the joint gap—not into the flame—once proper temperature is achieved allows capillary action to draw the alloy through the entire joint circumference. A properly executed joint exhibits a complete fillet around the fitting edge without excessive accumulation or voids. Overheating degrades the copper's mechanical properties and oxidises internal surfaces.

Nitrogen purging during brazing prevents internal oxidation scale formation, which would otherwise detach and contaminate the refrigeration circuit. Maintaining positive nitrogen pressure (typically 2-3 psi) through the tube being brazed forces oxygen out whilst preventing oxidation. This practice proves particularly critical for systems using synthetic refrigerants and polyolester lubricants, which exhibit poor tolerance for contaminants.

Support, Securing, and Protection Measures

Adequately supporting ACR pipework prevents stress concentration, vibration fatigue, and excessive movement during operation. Support spacing depends on tube diameter, orientation, and insulation presence. Horizontal runs generally require supports at intervals not exceeding 1.5 metres for tubes up to 22mm diameter, with closer spacing for larger sizes.

Copper-lined or plastic-coated brackets prevent galvanic corrosion whilst cushioning vibration transmission. Rigid clamping should be avoided; supports must permit thermal expansion whilst constraining excessive movement. At connection points to compressors or other vibrating components, vibration isolation using flexible sections or anti-vibration mountings protects pipework integrity.

Protection against mechanical damage, UV exposure (for external installations), and thermal cycling requires considered specification of insulation and cladding. ACR installations conveying refrigerant at temperatures below ambient must be insulated to prevent condensation formation, which causes corrosion and energy losses. Closed-cell elastomeric foam represents the standard choice, offering moisture resistance and thermal performance.

Pressure Testing and Leak Detection

Following installation completion, rigorous pressure testing verifies system integrity before refrigerant introduction. Pressurising with oxygen-free nitrogen to 150% of design working pressure or the pressure specified by system manufacturer, whichever proves greater, stresses all joints and connections sufficiently to reveal weaknesses.

Maintaining test pressure for a minimum of 24 hours, with continuous monitoring, ensures leak detection even in slowly-developing faults. Temperature compensation calculations may prove necessary for installations subject to significant ambient temperature variation during the test period. Pressure drops exceeding manufacturer-specified tolerances indicate leakage requiring rectification.

Electronic Leak Detection Methods

Whilst pressure holding tests verify overall system integrity, electronic leak detectors provide precise leak localisation. Halide-sensitive detectors, heated diode sensors, and infrared analysers each offer specific advantages depending on refrigerant type and installation environment. Methodically probing all joints, fittings, and brazed connections whilst maintaining detector sensitivity appropriate to the refrigerant charge size ensures comprehensive verification.

Soap solution testing, though seemingly rudimentary, provides visual confirmation at suspect locations identified through electronic detection. The formation of bubbles unambiguously indicates gas escape, facilitating pinpoint accuracy before rectification work commences.

Common Installation Pitfalls and Avoidance Strategies

Several recurring errors compromise ACR copper installations, many stemming from inadequate preparation or technique shortcuts. Contamination introduction through failure to maintain tube cleanliness represents perhaps the most consequential error. Even brief exposure to atmospheric conditions allows moisture ingress, which subsequently reacts with refrigerants and lubricants to form corrosive acids.

Inadequate joint penetration depth causes weak connections prone to failure under vibration or thermal cycling. Conversely, excessive penetration reduces internal bore diameter, creating pressure drops and flow restrictions. Measuring and marking insertion depth before assembly prevents both extremes.

Compliance, Documentation, and Quality Assurance

Professional ACR installations must comply with applicable standards including BS EN 378 for refrigeration systems, F-Gas regulations governing refrigerant handling, and building regulations pertinent to the installation environment. Maintaining current knowledge of regulatory requirements ensures installations meet legal obligations whilst protecting installer liability.

Comprehensive documentation creates an invaluable resource for future maintenance and troubleshooting. Recording tube sizes, routing, joint locations, test pressures achieved, and refrigerant charge quantities provides essential information for subsequent technicians. Photographic documentation supplements written records, particularly for concealed pipework sections.

Implementing systematic quality assurance protocols—joint inspection checklists, pressure test certification, and cleanliness verification procedures—elevates installation standards whilst building client confidence. For contractors handling multiple projects, standardised procedures ensure consistency across installations regardless of which technician executes the work.

Frequently Asked Questions

What distinguishes ACR copper tube from standard plumbing copper?

ACR copper arrives cleaned, dehydrated, sealed, and often nitrogen-charged to prevent internal oxidation and contamination. Standard plumbing copper lacks these preparations and may contain manufacturing residues or moisture unsuitable for refrigeration circuits. The cleanliness standards for ACR applications far exceed those for water distribution systems.

Can soft drawn copper tube be work-hardened through manipulation?

Excessive bending, particularly repeated forming in the same location, does strain-harden copper, reducing ductility and increasing brittleness. Proper technique—gradual bending with appropriate tooling and avoiding rework—minimises work hardening. Once installed, the copper stabilises and performs reliably within its design parameters.

How does refrigerant type influence installation technique?

Modern HFC and HFO refrigerants paired with polyolester lubricants exhibit far greater sensitivity to moisture and contaminants than traditional refrigerants. This necessitates stringent cleanliness protocols, mandatory nitrogen purging during brazing, and rigorous leak testing. R410A systems, for instance, operate at significantly higher pressures, demanding impeccable joint quality and appropriate pressure ratings throughout the installation.

Is mechanical flared connection suitable for all ACR applications?

Flared connections suit low-pressure applications and locations requiring periodic disconnection for maintenance. High-pressure refrigerant lines, particularly discharge lines from scroll compressors in R410A systems, mandate brazed connections due to superior strength and vibration resistance. System design specifications dictate appropriate joint methods for each connection point.

Advancing Professional Standards in ACR Installation

Mastery of ACR copper tube installation techniques distinguishes competent technicians from exceptional craftspeople. The discipline demands theoretical understanding of refrigeration principles, practical skill in metalworking techniques, and unwavering attention to cleanliness and quality. As refrigerant technologies evolve and efficiency standards tighten, installation precision becomes increasingly critical to system performance and longevity.

Continuous professional development—engaging with updated standards, emerging materials, and refined techniques—ensures installers remain at the forefront of industry practice. For HVAC engineers and refrigeration technicians committed to excellence, investing time in perfecting ACR installation fundamentals yields dividends through reduced callbacks, enhanced reputation, and the professional satisfaction of executing exemplary work.

The integration of proven techniques with quality materials from reliable suppliers creates installations that perform flawlessly throughout their service life. Whether executing new builds, system upgrades, or maintenance interventions, adherence to best practices in ACR copper tube installation establishes the foundation for reliable, efficient air conditioning and refrigeration systems.
