R410A Tools & Equipment for HVAC Engineers
R410A is the most widely installed refrigerant in residential and light commercial air conditioning systems across the UK — found in the majority of split systems, multi-splits, and VRF installations from Daikin, Mitsubishi, Fujitsu, Toshiba, and Samsung. R410A operates at significantly higher pressures than R22, requiring tools specifically rated for high-pressure refrigerant work. Airconspares stocks the full range of R410A-compatible tools from Mastercool and Javac. Same-day dispatch from UK stock. Rated Excellent 4.8/5 on Trustpilot.
Why R410A Requires Specialist Tools

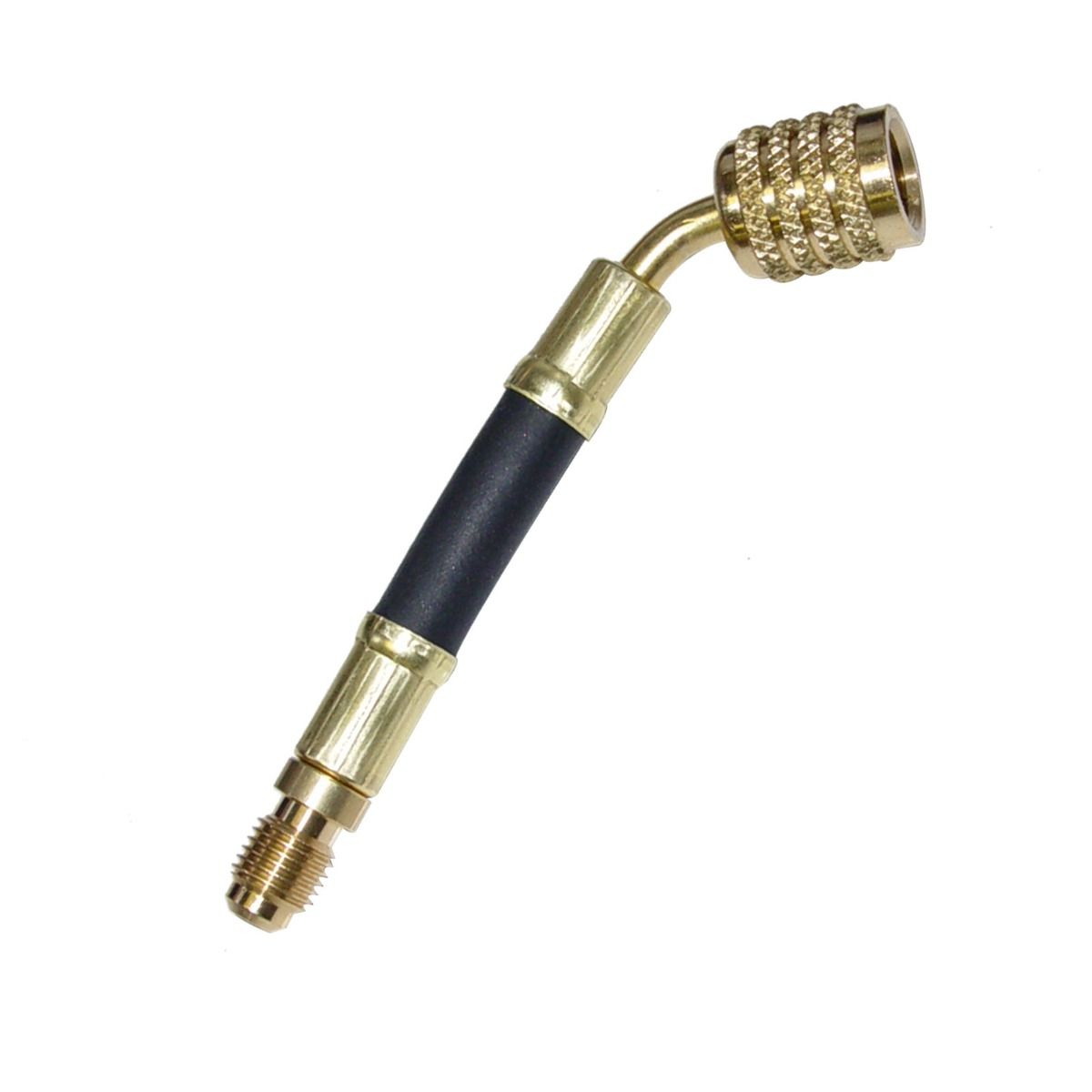

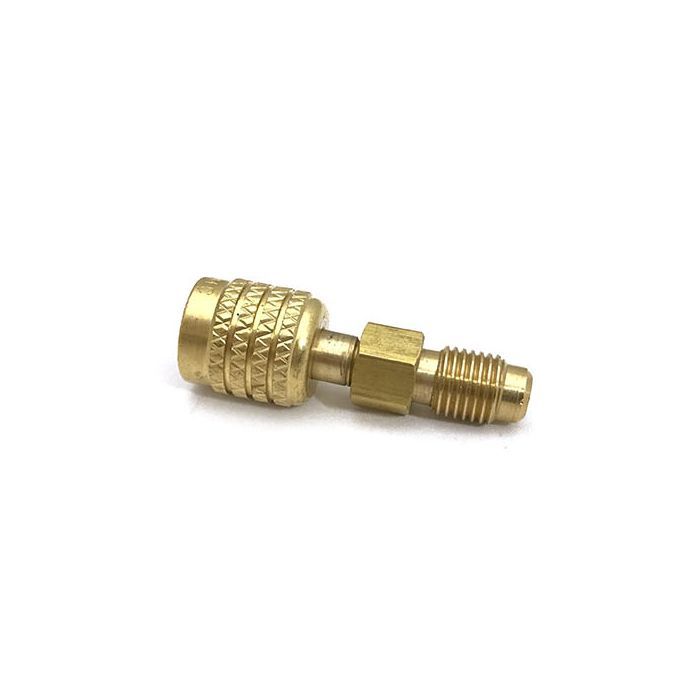

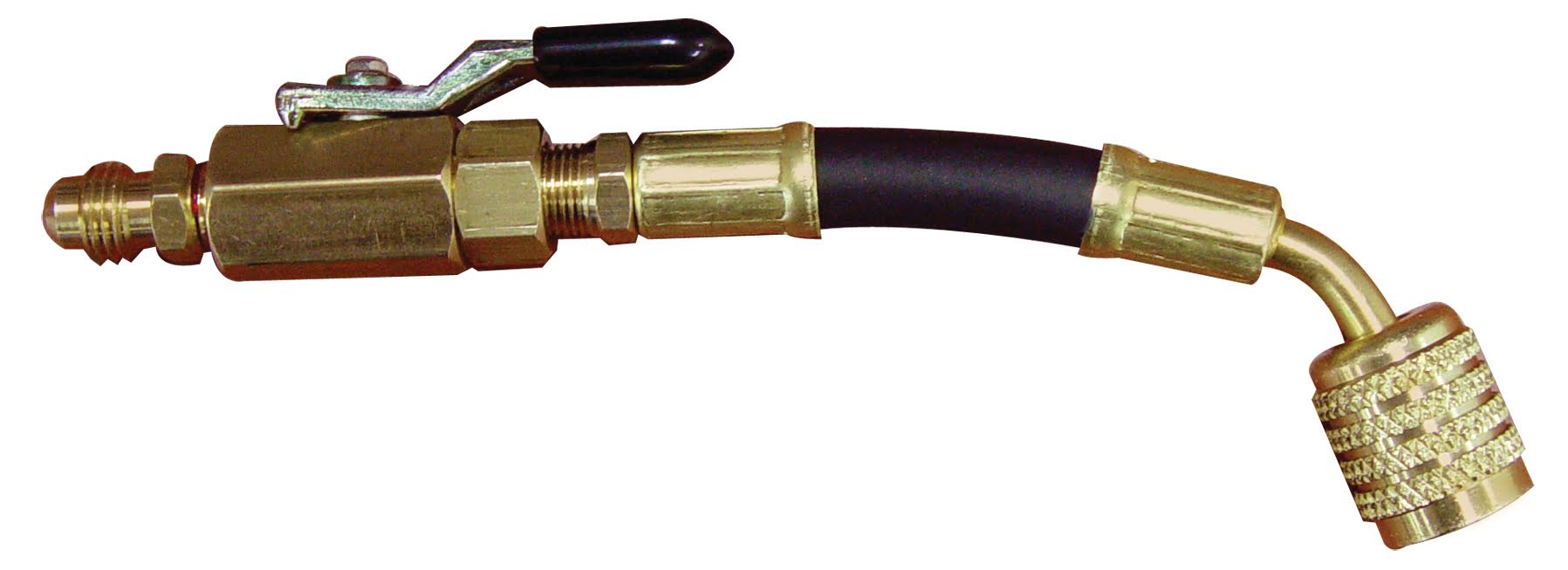

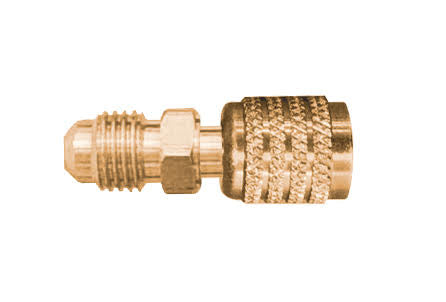

R410A operates at up to 490 PSI (34 Bar) on the high side — significantly higher than R22. All tools must be rated for these pressures. Many R410A systems use 1/2"-20UNF Japanese standard fittings on the high-side service port rather than the standard 1/4" SAE. Using R22-rated tools on R410A systems is unsafe and non-compliant.

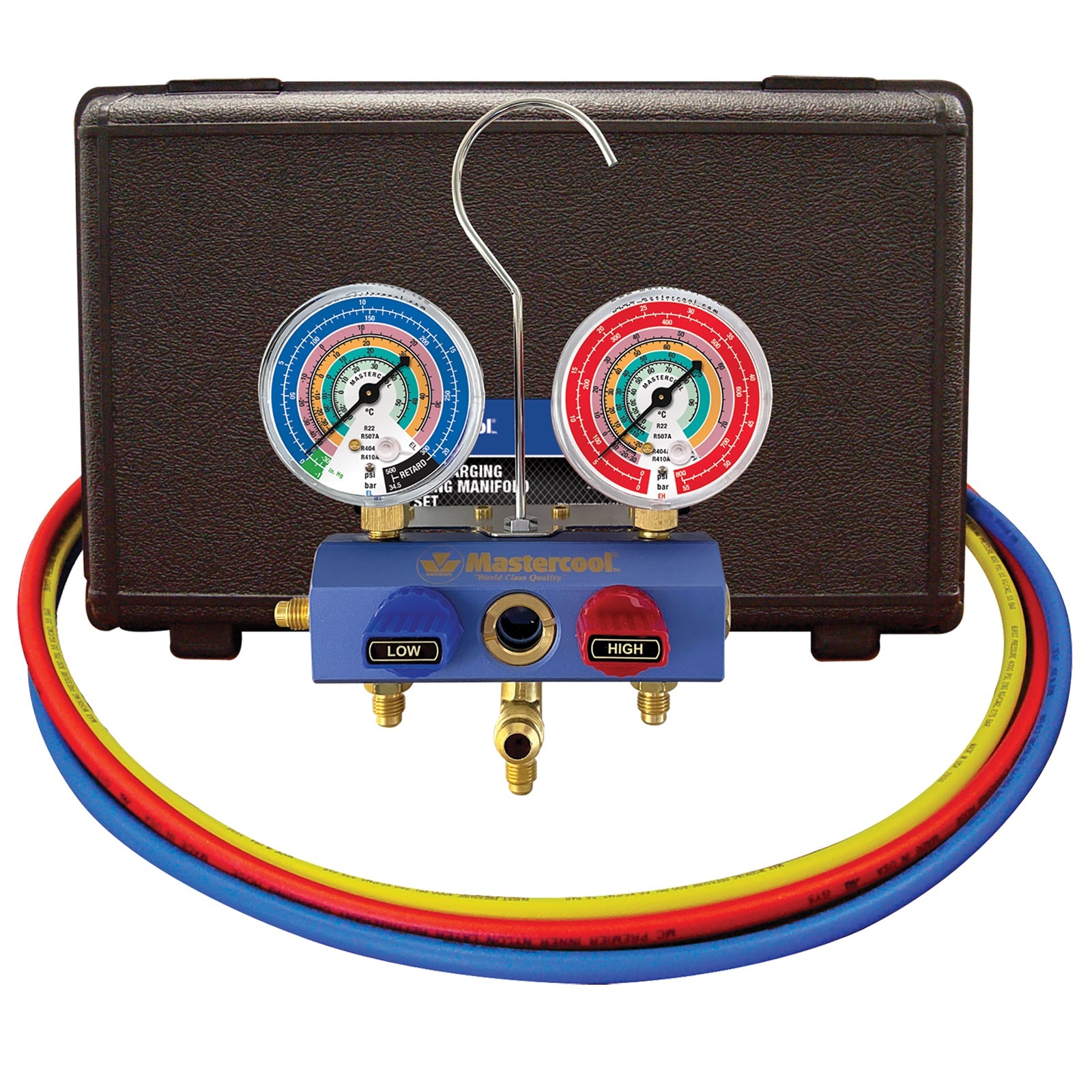

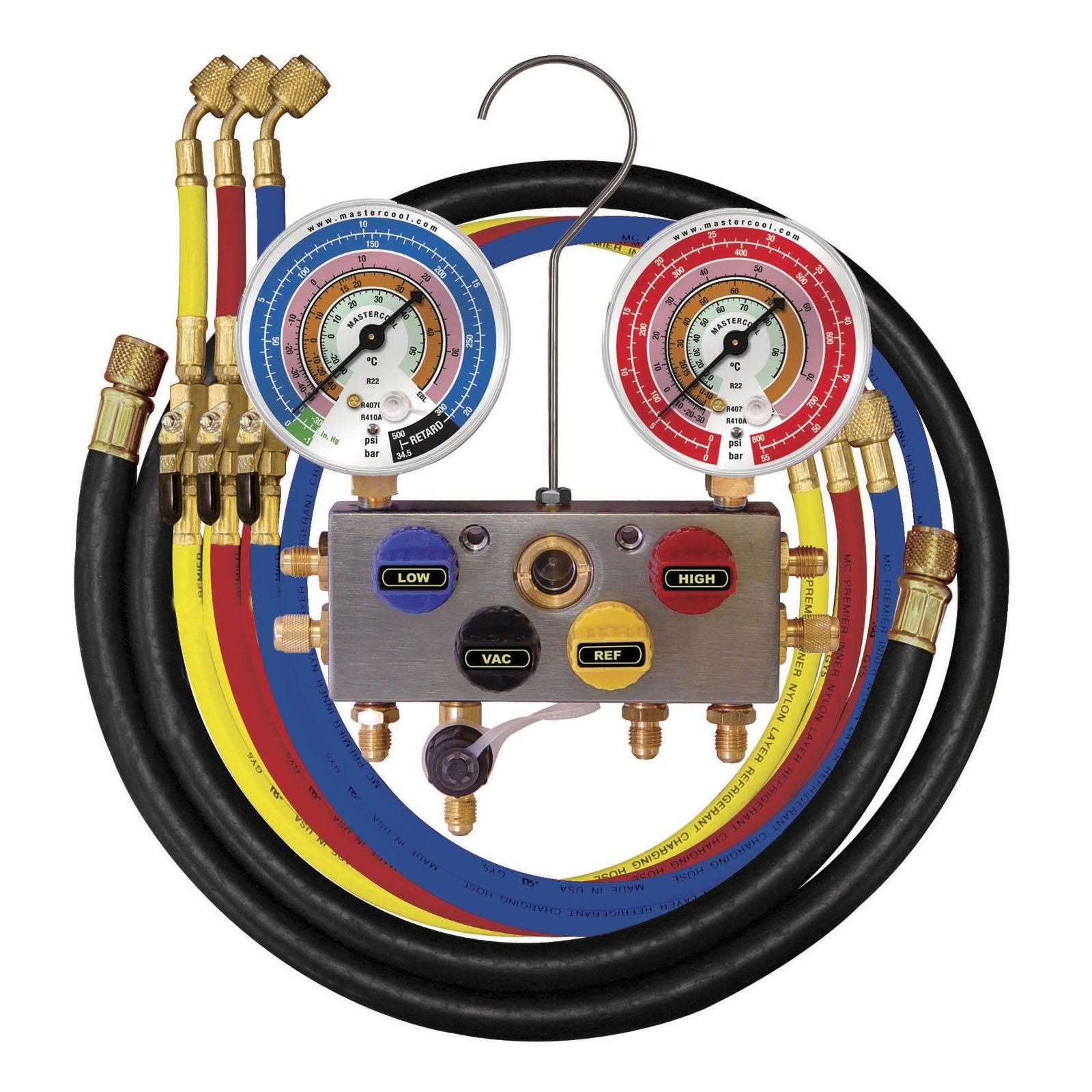

Manifold Sets & Gauges

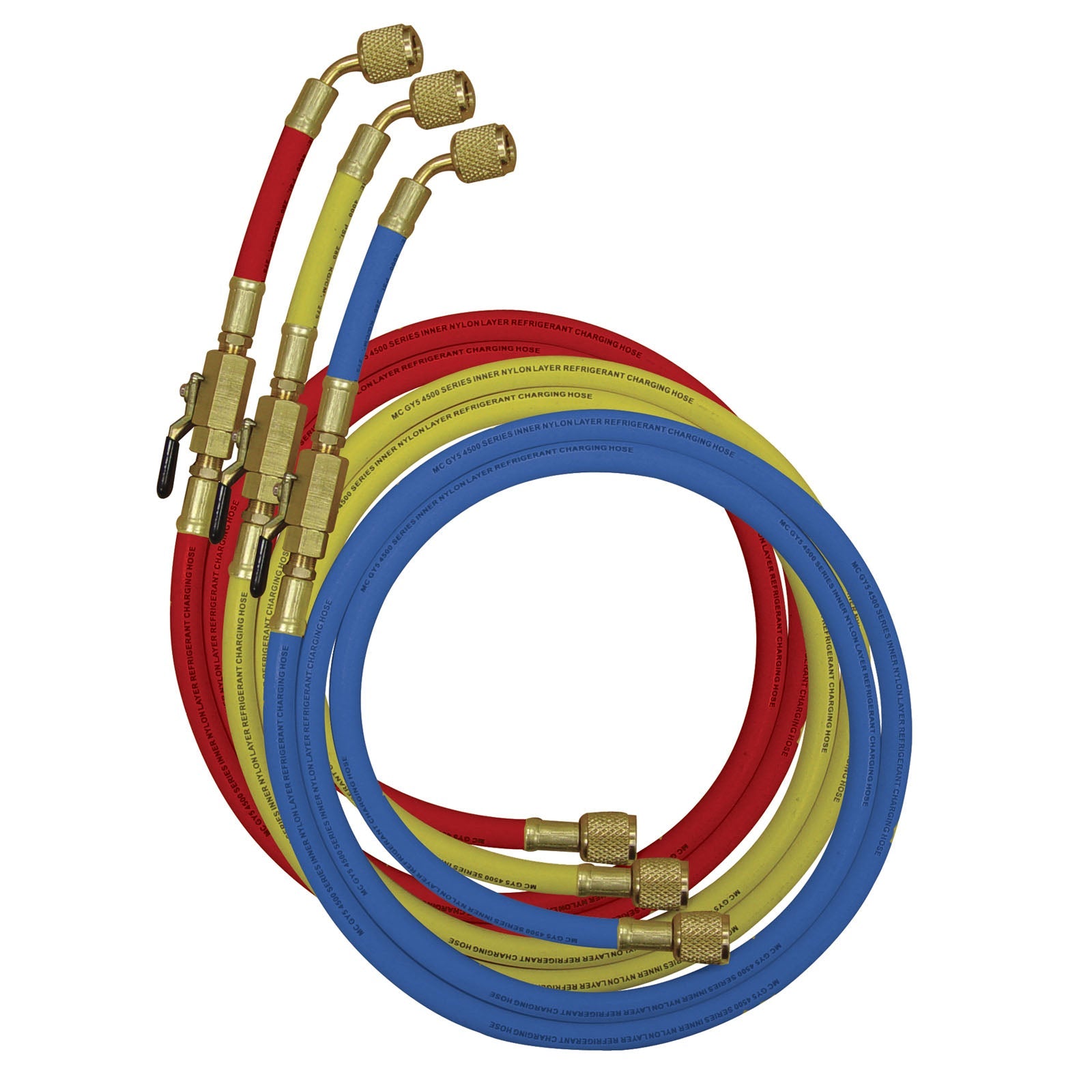

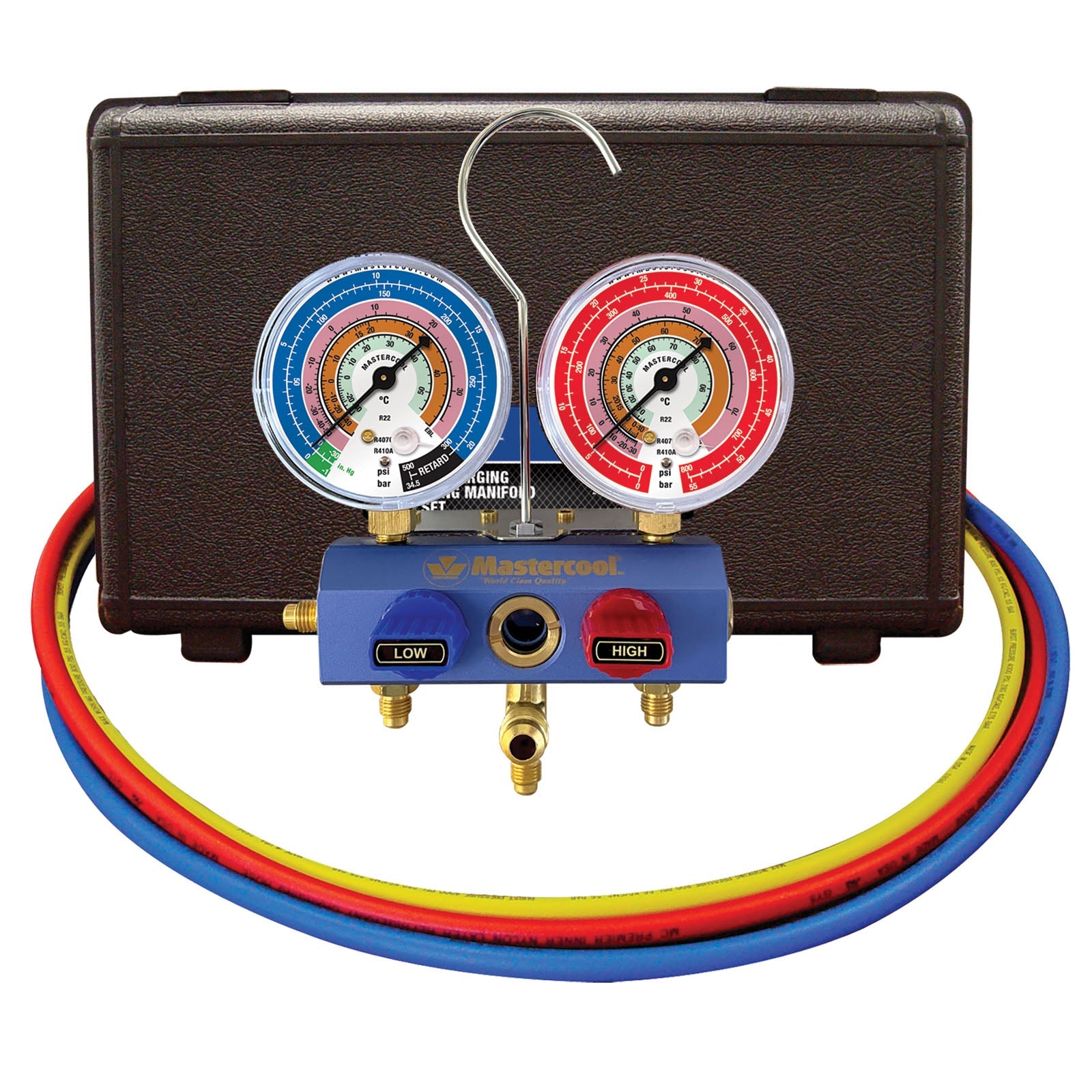

R410A manifold sets must be rated to at least 56 Bar (800 PSI) with gauges calibrated for R410A pressure/temperature relationships. The Javac 2-Valve R410A/R32 Manifold covers both R410A and R32 systems. R410A manifold sets with precision ball valves are stocked for engineers requiring tighter flow control. R410A specialist hoses in 1/2"-20UNF are stocked separately. Browse all manifold sets.
Vacuum Pumps
R410A systems require deep evacuation to 500 microns or below before charging. Two-stage vacuum pumps are the minimum standard for R410A work. The Mastercool Black Series range covers 6 CFM to 12 CFM for residential through commercial applications. Browse all vacuum pumps.
Recovery Machines & Scales
F-Gas regulations require refrigerant recovery before any system work. Recovery machines rated for R410A high-side pressures are stocked for same-day dispatch. R410A must be charged by weight — refrigerant scales are essential for accurate charging and warranty compliance.
Leak Detection
Post-charge leak checks are mandatory under F-Gas regulations. Electronic leak detectors calibrated for R410A and R32 are stocked across the Mastercool and Javac ranges.
Note: R410A is being phased down under F-Gas regulations and replaced by lower-GWP alternatives including R32 and R454B on new installations. For R32-compatible tools, see our R32 Tools & Equipment hub. Trade accounts available — call 0161 775 1190 for volume pricing.
