R744 (CO2) Refrigeration Tools & High-Pressure Equipment
Specialist tools and equipment designed for R744 (carbon dioxide) refrigeration systems. R744 is a natural refrigerant used in commercial refrigeration, operating at extremely high pressures that require purpose-built, high-pressure rated equipment.
Why R744 (CO2) is Growing
Carbon dioxide is increasingly popular as a natural refrigerant:
- Ultra-low GWP: Global Warming Potential of just 1 (baseline reference)
- Zero ODP: No ozone depletion potential
- Natural refrigerant: Abundant, non-toxic, non-flammable
- Excellent efficiency: Superior thermodynamic properties in transcritical systems
- Future-proof: Not subject to F-Gas phase-down regulations
- Supermarket standard: Becoming the norm for large commercial refrigeration
R744 System Pressures
CO2 operates at significantly higher pressures than traditional refrigerants:
- Subcritical operation: Up to 60 Bar (870 PSI)
- Transcritical operation: Up to 140 Bar (2,030 PSI) on high side
- Critical point: 31°C at 73.8 Bar
- Equipment requirements: All tools must be rated for extreme pressures
- Safety critical: Standard HVAC tools are completely unsuitable
R744 Specialist Tools & Equipment

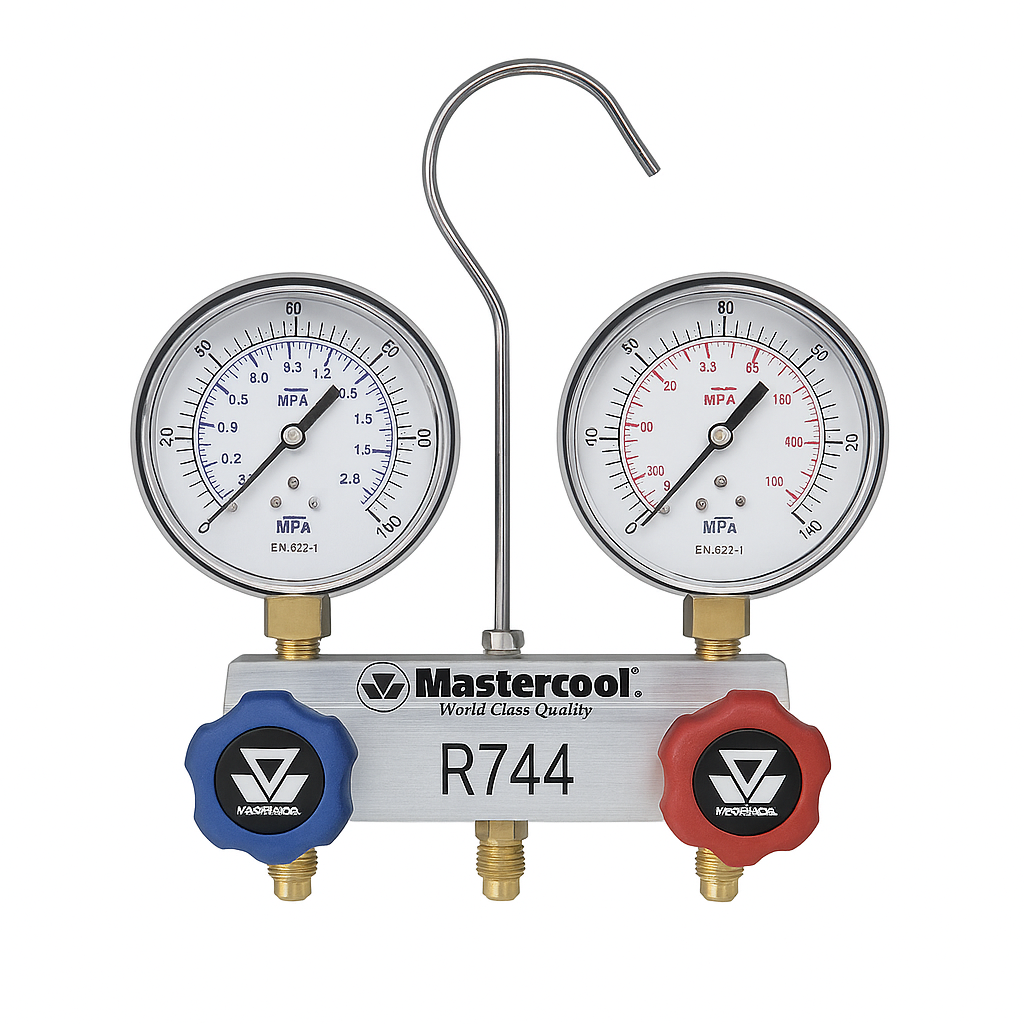

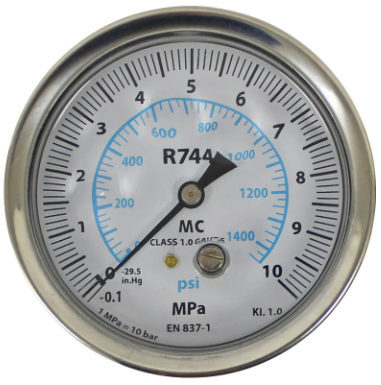

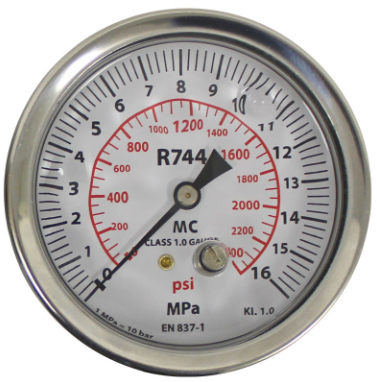

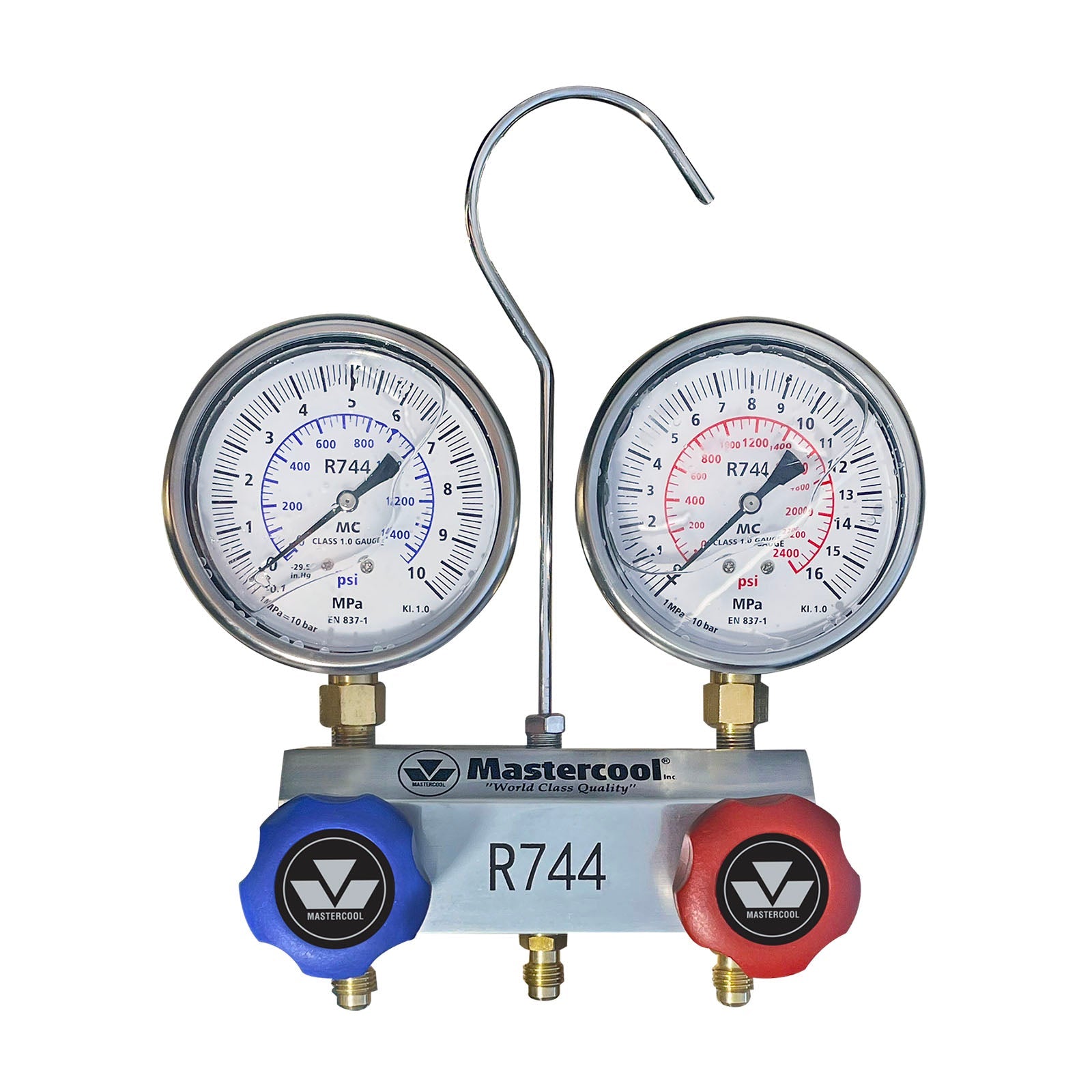

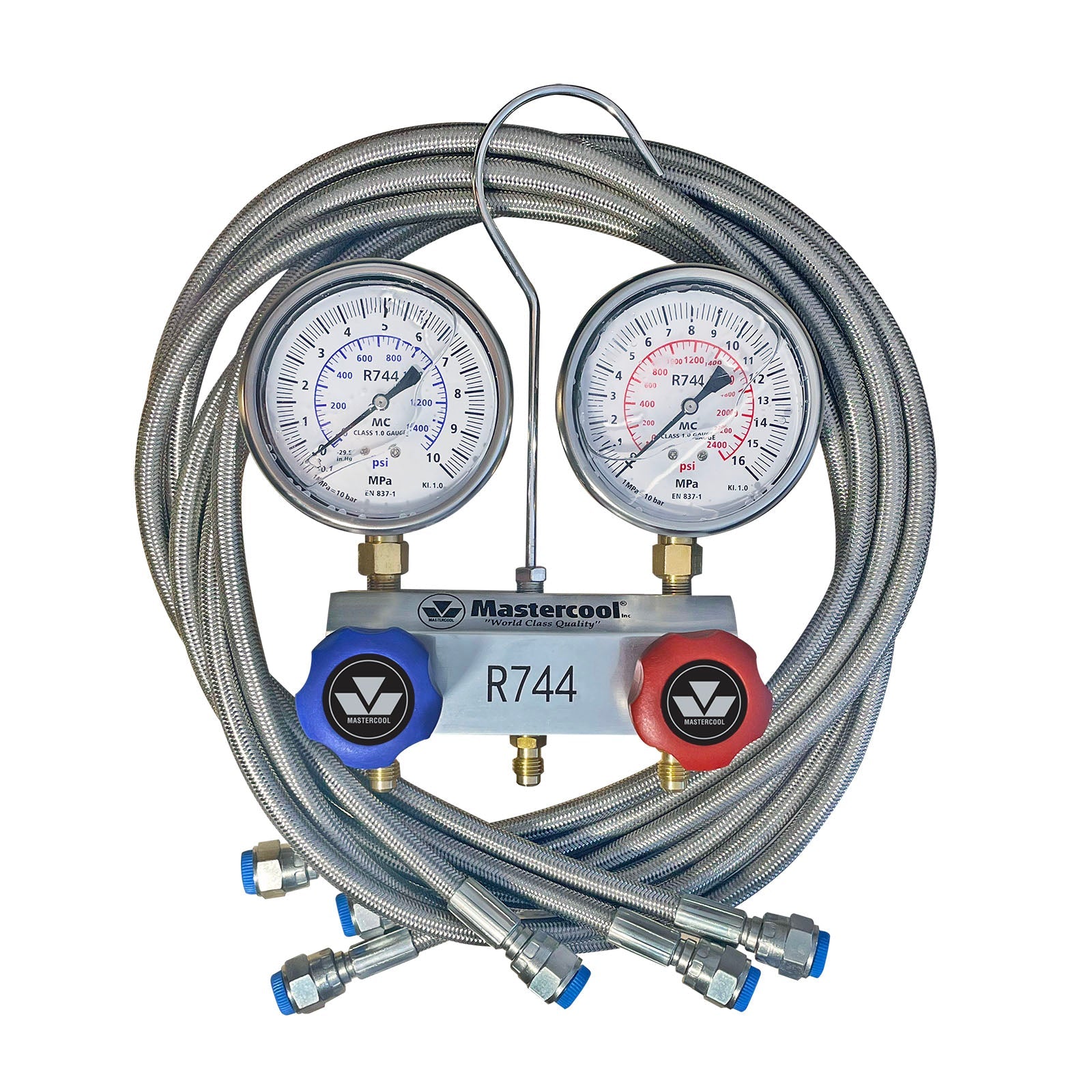

High-Pressure Manifolds & Gauges
Purpose-built manifold gauge sets rated for CO2 pressures:
- Pressure rating: Minimum 140 Bar (2,030 PSI) for transcritical systems
- Specialized gauges: Scales showing CO2 saturation temperatures and transcritical pressures
- Robust construction: Heavy-duty materials to withstand extreme pressures
- Safety features: Pressure relief valves and reinforced connections

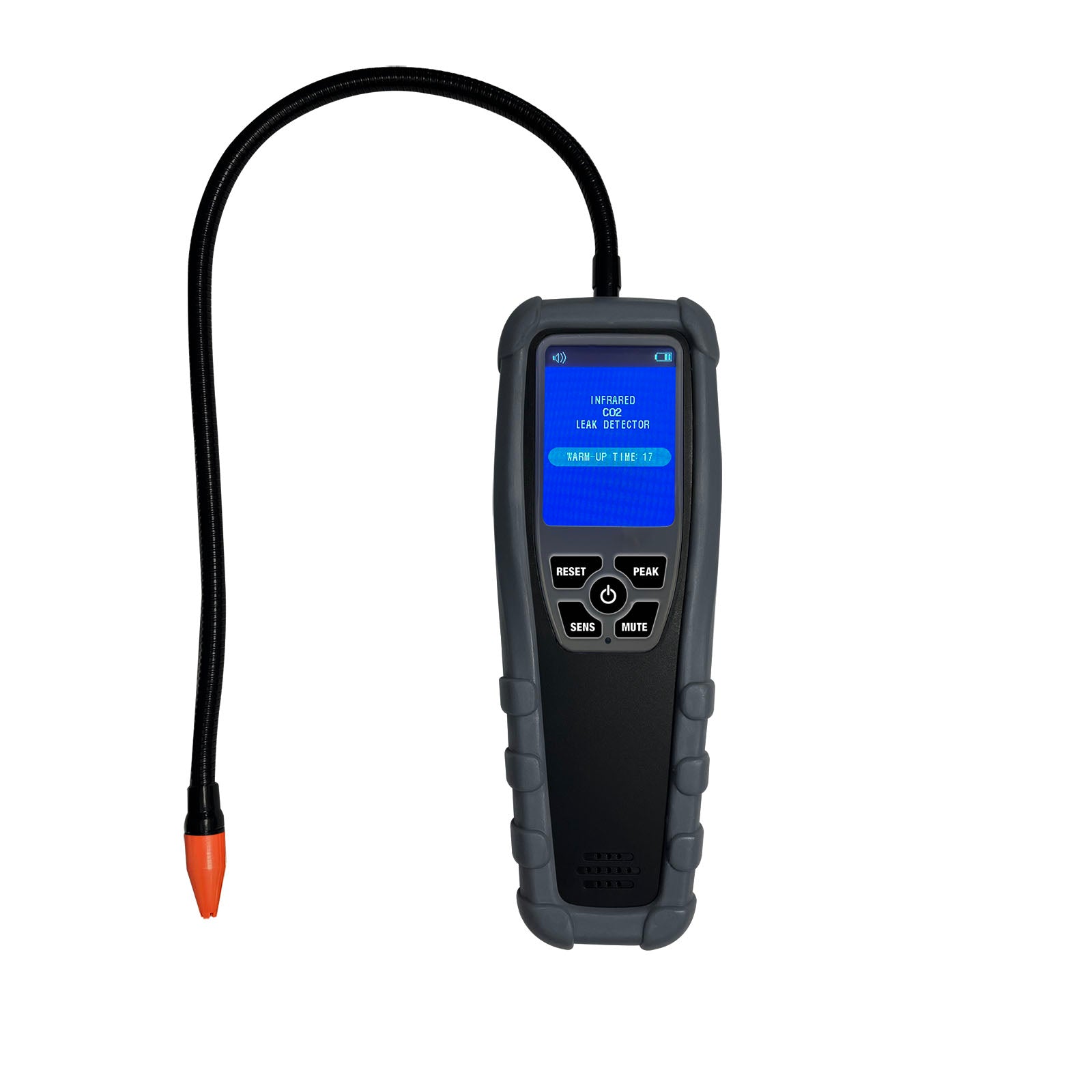

CO2 Leak Detectors
Specialized leak detection equipment for carbon dioxide:
- Infrared or heated diode sensors for CO2 detection
- High sensitivity for trace leak detection
- Essential for system commissioning and maintenance
- Different technology than HFC leak detectors
Recovery & Charging Equipment
High-pressure recovery machines and charging equipment:
- Rated for CO2 operating pressures
- Specialized pumps and compressors
- High-pressure cylinders and storage
- Safety equipment for high-pressure handling

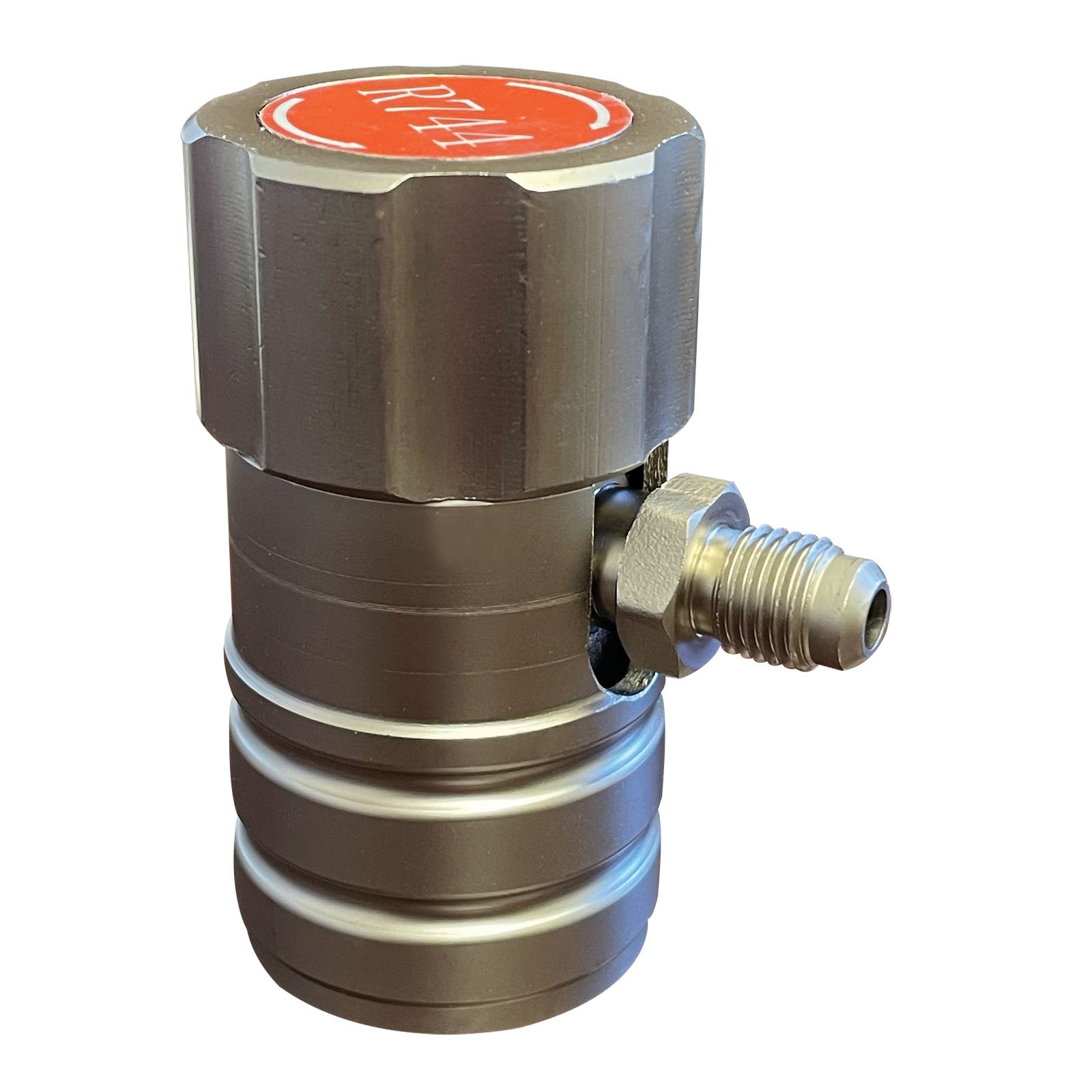

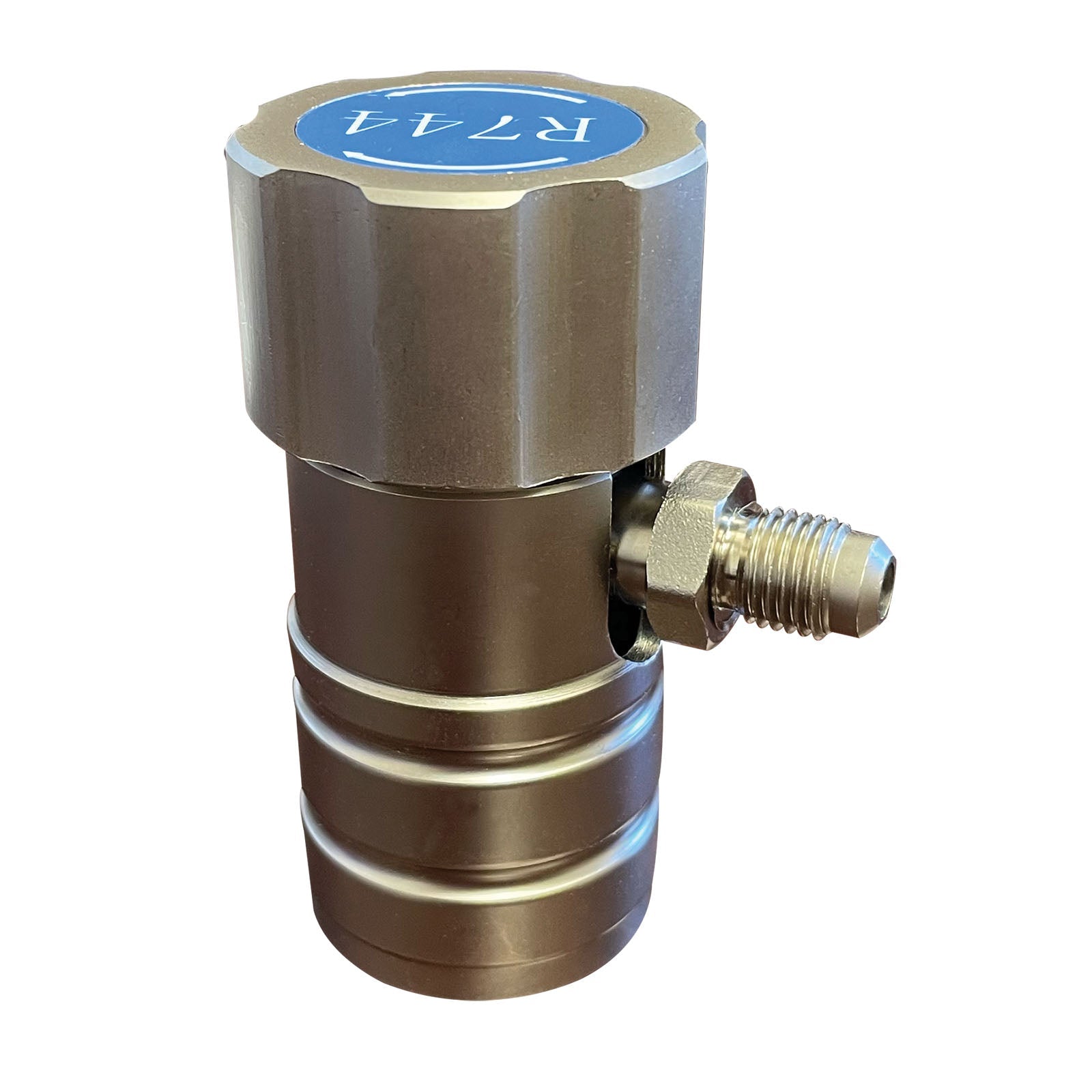

High-Pressure Hoses & Fittings
Reinforced hoses and fittings rated for CO2 pressures:
- Minimum 140 Bar pressure rating
- Specialized fittings for CO2 systems
- Burst-resistant construction
- Regular inspection and replacement critical
Safety Equipment
Essential safety equipment for CO2 systems:
- High-pressure rated tools and accessories
- CO2 gas detectors for workspace safety
- Pressure relief devices
- Personal protective equipment (PPE)
- Emergency procedures and training
R744 Applications
- Supermarket refrigeration: Centralized CO2 systems for food retail
- Cold storage: Industrial cold rooms and warehouses
- Food processing: Commercial food production facilities
- Ice rinks: CO2 refrigeration for ice skating facilities
- Heat pumps: CO2 heat pump water heaters (residential and commercial)
- Transport refrigeration: CO2 systems in refrigerated vehicles
Transcritical vs Subcritical CO2
Subcritical CO2 Systems
Operate below the critical point (31°C):
- Lower pressures (up to 60 Bar)
- Traditional vapour-compression cycle
- Suitable for cold climates or low-temperature applications
- Simpler system design
Transcritical CO2 Systems
Operate above the critical point on high side:
- Very high pressures (up to 140 Bar)
- Gas cooler instead of condenser
- Better efficiency in warm climates
- More complex system design
- Requires specialized high-pressure equipment
R744 Refrigerant Facts
- Chemical name: Carbon dioxide (CO₂)
- ASHRAE number: R744
- GWP: 1 (baseline reference)
- ODP: 0
- Flammability: Non-flammable (A1 classification)
- Toxicity: Low toxicity (asphyxiant in high concentrations)
- Critical point: 31°C at 73.8 Bar
- Colour code: Grey or aluminium cylinder
R744 vs Traditional Refrigerants
| Property | R404A | R744 (CO2) |
|---|---|---|
| GWP | 3,922 | 1 |
| ODP | 0 | 0 |
| Operating pressure | Standard (up to 30 Bar) | Very high (up to 140 Bar) |
| Equipment cost | Standard | Higher (specialized equipment) |
| Efficiency | Standard | Higher (in transcritical systems) |
| Environmental impact | High GWP | Minimal (natural refrigerant) |
Safety Considerations
High Pressure Hazards
- Equipment failure risk: Extreme pressures can cause catastrophic failure if equipment not rated correctly
- Proper training essential: Technicians must be trained in high-pressure systems
- Regular inspections: Hoses, fittings, and equipment require frequent inspection
- Pressure relief: Systems must have adequate pressure relief devices
Asphyxiation Risk
- Heavier than air: CO2 accumulates in low areas
- Ventilation critical: Adequate ventilation essential in plant rooms
- Gas detection: CO2 monitors required in enclosed spaces
- Emergency procedures: Clear procedures for CO2 leaks
Regulatory & Standards
- EN 378: European standard for refrigerating systems (includes CO2)
- Pressure Equipment Directive: High-pressure CO2 systems subject to PED
- F-Gas exempt: CO2 not subject to F-Gas regulations (natural refrigerant)
- Training requirements: Specialist training required for CO2 systems
Important Notes
- Specialist equipment mandatory: Standard HVAC tools cannot be used on CO2 systems
- Pressure ratings critical: All equipment must be rated for minimum 140 Bar
- Training essential: CO2 systems require specialist knowledge and training
- Safety first: High-pressure systems demand strict safety protocols
Need help with R744 CO2 tools and equipment? Contact our technical team for expert advice on CO2 refrigeration equipment and safety requirements.
