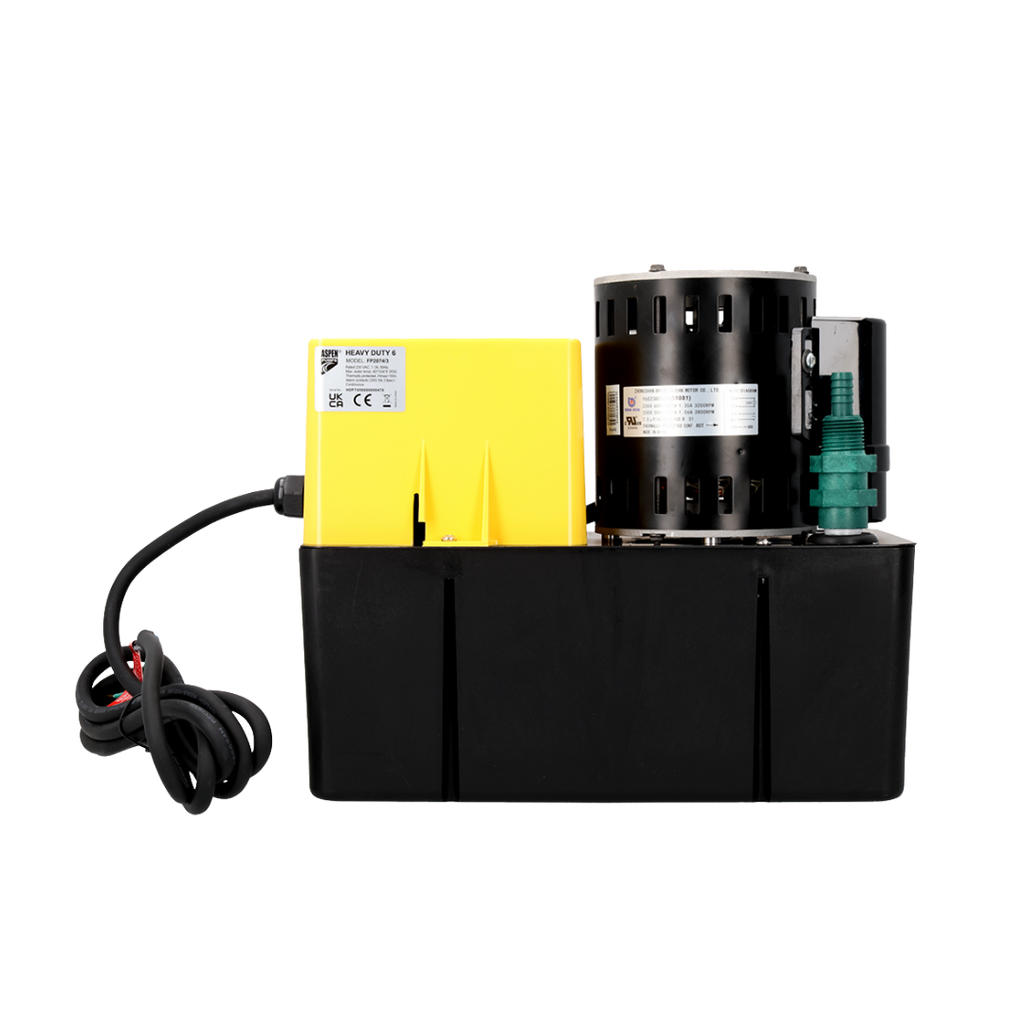

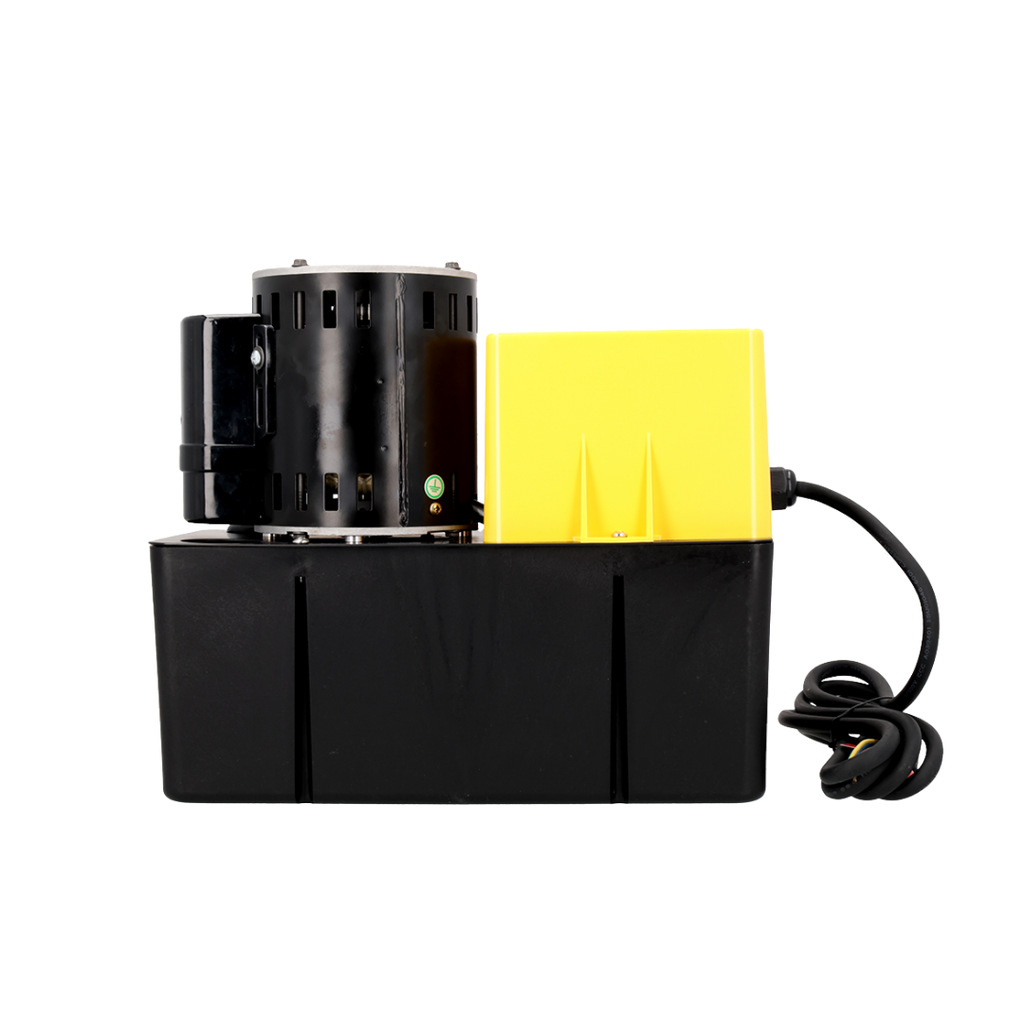

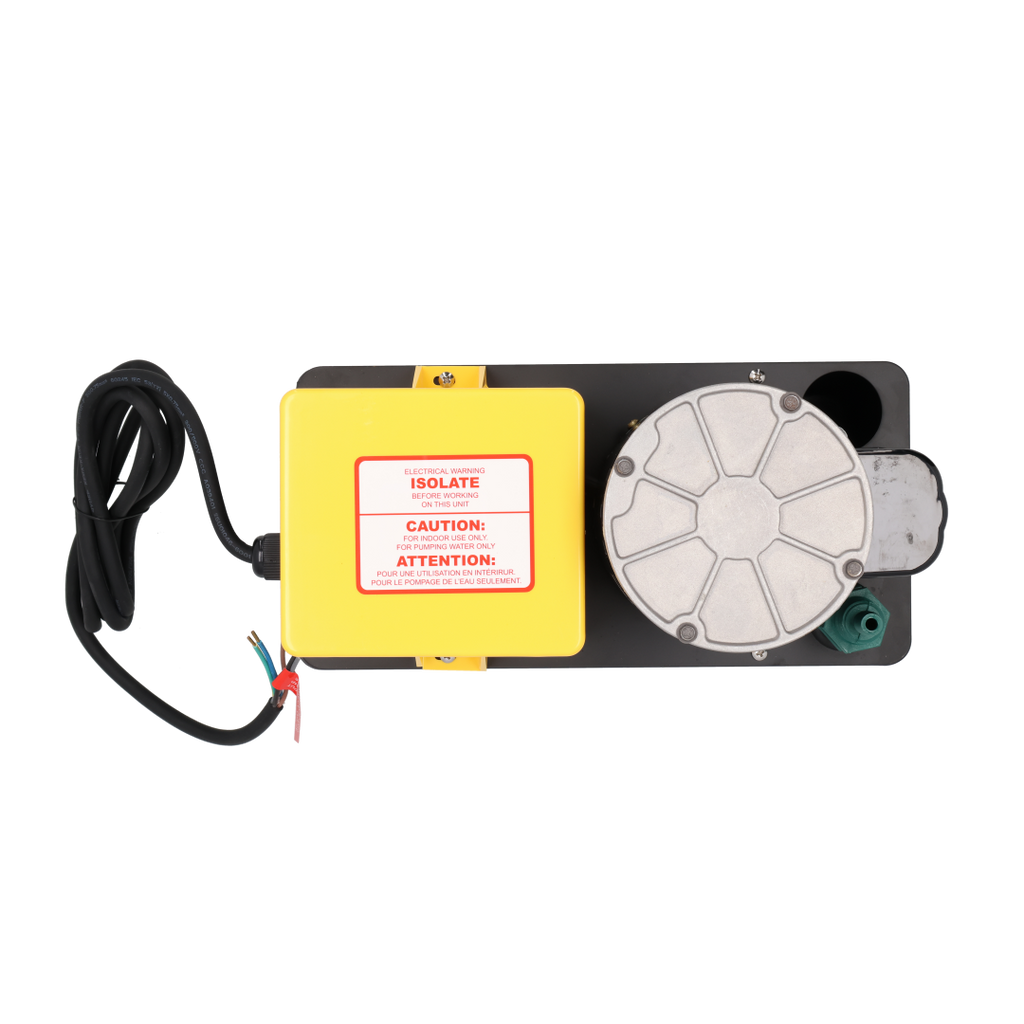

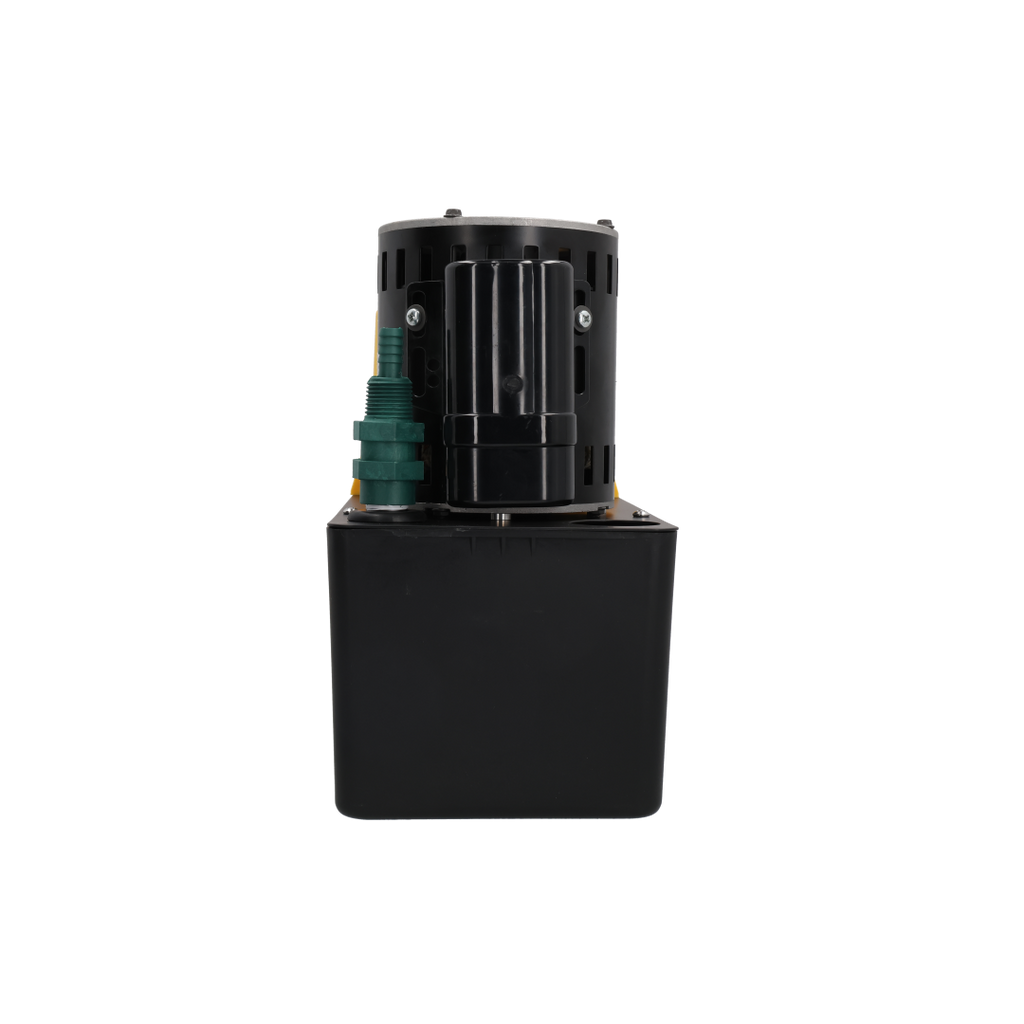

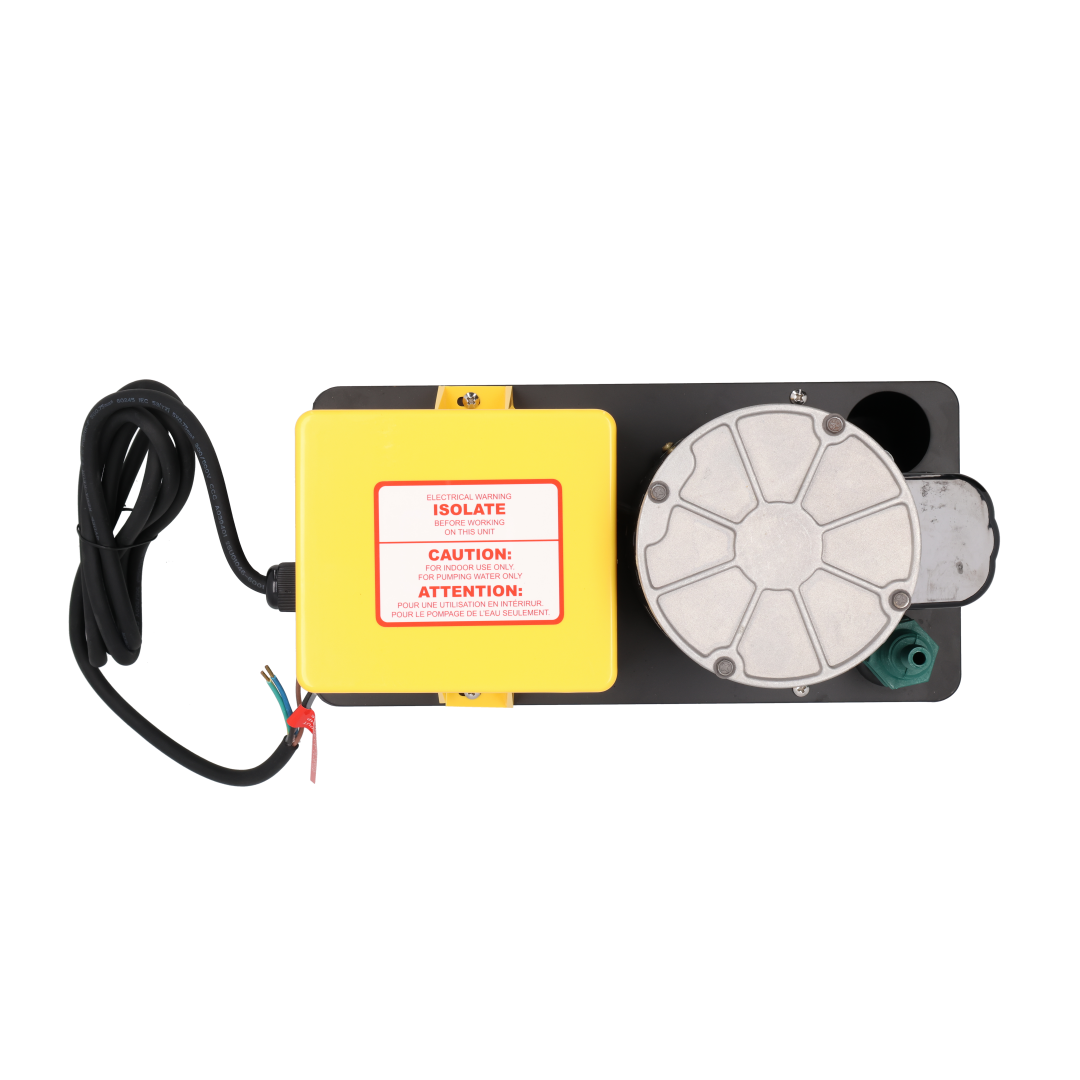

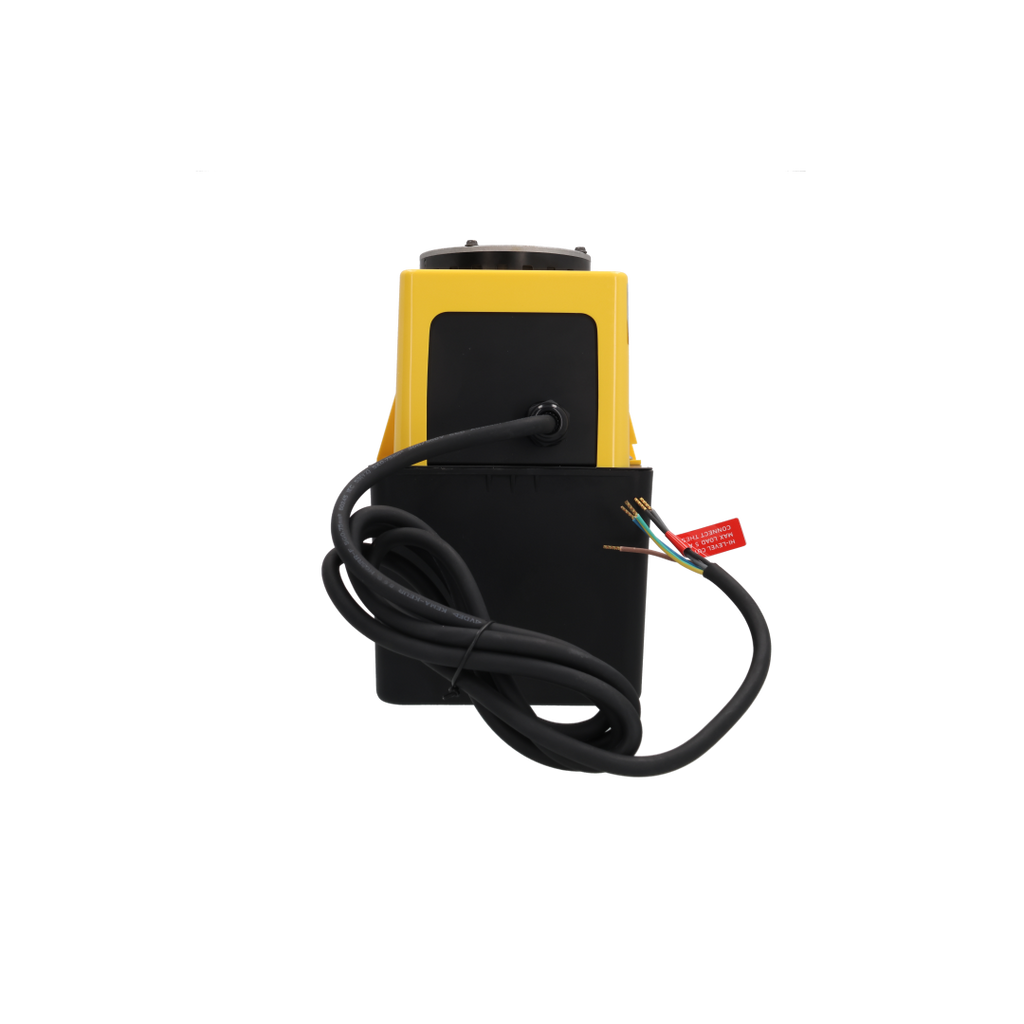

Aspen FP2074/3 Heavy Duty 6 Condensate Removal Tank Pump
The Aspen FP2074/3 Heavy Duty 6 is a high-capacity condensate removal pump designed for high-demand HVAC systems handling large condensate loads. Built to withstand the toughest commercial and industrial environments, it combines power, reliability and durability with easy installation.
With a 900 L/h max flow rate, 6m maximum recommended head, and a 4-litre tank capacity, the HD6 is ideal for dehumidifiers, air handling units (AHUs), and any application requiring large volumes of water removal.
Key Features & Benefits
- High flow rate — 900 L/h max flow
- Non return valve included
- Easy installation
- 4 litre tank capacity
- High level safety switch — 5.0A Normally Closed
- Hard wired with 2m power cable
- IP20 protection
- Continuous rated, Class I appliance
What's in the Box
- Heavy Duty 6 pump
- Hard wired 2m power cable
- Install manual
Suggested Accessories
- FP2007 — Rubber Adaptors 3/4" (19mm) – 1-1/2" (38mm)
- FP2038 — Tube to Soil Stack Adaptor
- AX5101 — Vinyl Tube Braided 3/8" (10mm)
Specifications
| SKU / Part No. | FP2074/3 |
| Max flow | 900 L/h |
| Max recommended head | 6m (at flow rate 780 L/h) |
| Tank capacity | 4L |
| Sound level | 64dB(A) @ 1m |
| Power supply | 230V AC, 50Hz, 1.1A |
| Rating | Continuous |
| Class | I Appliance |
| Max unit output | Up to 1200kW (4m Btu/h) |
| Max ambient temp | 40°C (104°F) |
| Max water temp | 40°C (104°F) |
| Inlet/Outlet | 40mm in, 10mm out |
| IP Protection | IP20 |
| Safety switch | 5.0A Normally Closed |
| Weight | 5.2kg |
| Brand | Aspen Pumps |
| Country of origin | United Kingdom |
Suitability
- Up to 1200kW (4m Btu/h) systems
- Dehumidifiers and air handling units (AHUs)
- Large volumes of water removal
- High-demand commercial and industrial HVAC
Also Available
- FP2066/3 — Heavy Duty 10, 1070 L/h, 4.9m head
