Aspen Mini Aqua Condensate Pump | FP2406/2

Aspen Mini Aqua Condensate Pump | FP2406/2

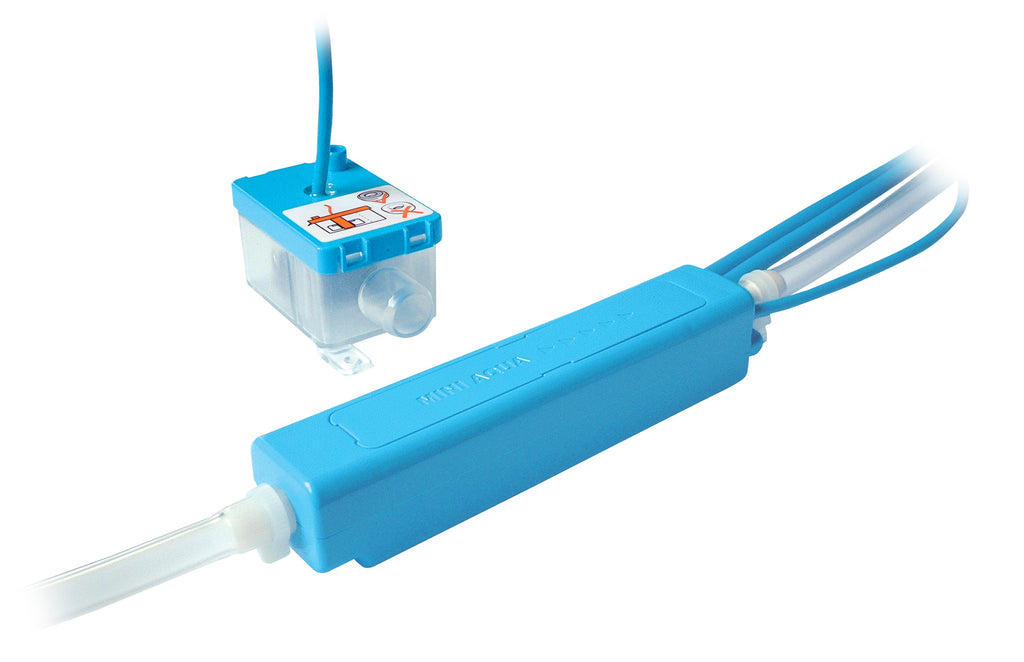

The Aspen Mini Aqua FP2406/2 is a compact, reliable condensate removal pump designed for wall mounted split system air conditioners, fan coil units, and other HVAC equipment where gravity drainage is not possible. With a 25 L/h flow rate, 5-metre maximum lift, and a compact footprint, the Mini Aqua is one of the most widely installed condensate pumps in the UK HVAC trade.

Supplied ready to install with inlet and outlet connections, the FP2406/2 is suitable for indoor use and compatible with the vast majority of residential and light commercial split systems.

Key Features

• 25 L/h flow rate — suitable for most residential split systems
• 5m maximum lift — handles most standard installation configurations
• 230V AC power supply — standard UK single-phase
• Compact design — fits neatly behind or beside indoor units
• Float switch with safety cut-out — protects against overflow
• Low noise operation — 25 dB(A)
• 10mm inlet / 6mm outlet connections
• Suitable for R32, R410A and R22 condensate

Benefits

• Trusted trade product — the Mini Aqua is one of the most widely specified condensate pumps in the UK, with a proven track record across thousands of installations
• Simple installation — compact body fits in tight spaces behind indoor units; flexible inlet hose included
• Safety cut-out protection — float switch triggers system shutdown if pump fails or condensate level rises, preventing water damage
• Quiet operation — 25 dB(A) makes it suitable for bedrooms, offices and noise-sensitive environments
• Wide compatibility — works with all major AC brands including Daikin, Mitsubishi Electric, Samsung, LG, Panasonic and Fujitsu

Suitable Applications

• Wall mounted split system air conditioners
• Cassette and ceiling-mounted fan coil units
• Light commercial HVAC installations
• Any installation where gravity drainage from the indoor unit is not available

Technical Specifications

What's Included

• Aspen Mini Aqua condensate pump unit (FP2406/2)
• Flexible inlet hose
• Outlet tubing
• Mounting bracket
• Installation instructions

Compatible Systems

Compatible with all major residential and light commercial split system brands including Daikin, Mitsubishi Electric, Samsung, LG, Panasonic, Fujitsu, Hitachi, Toshiba and Midea. Suitable for use with R32, R410A and R22 refrigerant systems.

Frequently Asked Questions

What is a condensate pump used for?
A condensate pump removes the water produced by an air conditioning system's indoor unit during cooling operation. It is required when the indoor unit cannot drain by gravity to a suitable waste point.

What is the maximum pipe run for the outlet?
The FP2406/2 can lift condensate up to 5 metres vertically. Horizontal runs reduce effective lift — consult the installation guide for combined run calculations.

Does this pump include a safety cut-out?
Yes. The float switch triggers a safety signal to shut down the air conditioning system if the condensate level rises above normal, preventing overflow and water damage.

Is this pump suitable for R32 systems?
Yes. The FP2406/2 is compatible with condensate from R32, R410A and R22 refrigerant systems.

What is the difference between the FP2406/2 and the Silent+ Mini Aqua FP3420?
The FP3420 is the current generation replacement with a higher flow rate (35 L/h), quieter operation (15 dB(A)) and IP24 splash-proof rating. The FP2406/2 remains a proven, cost-effective option for standard residential installations.
