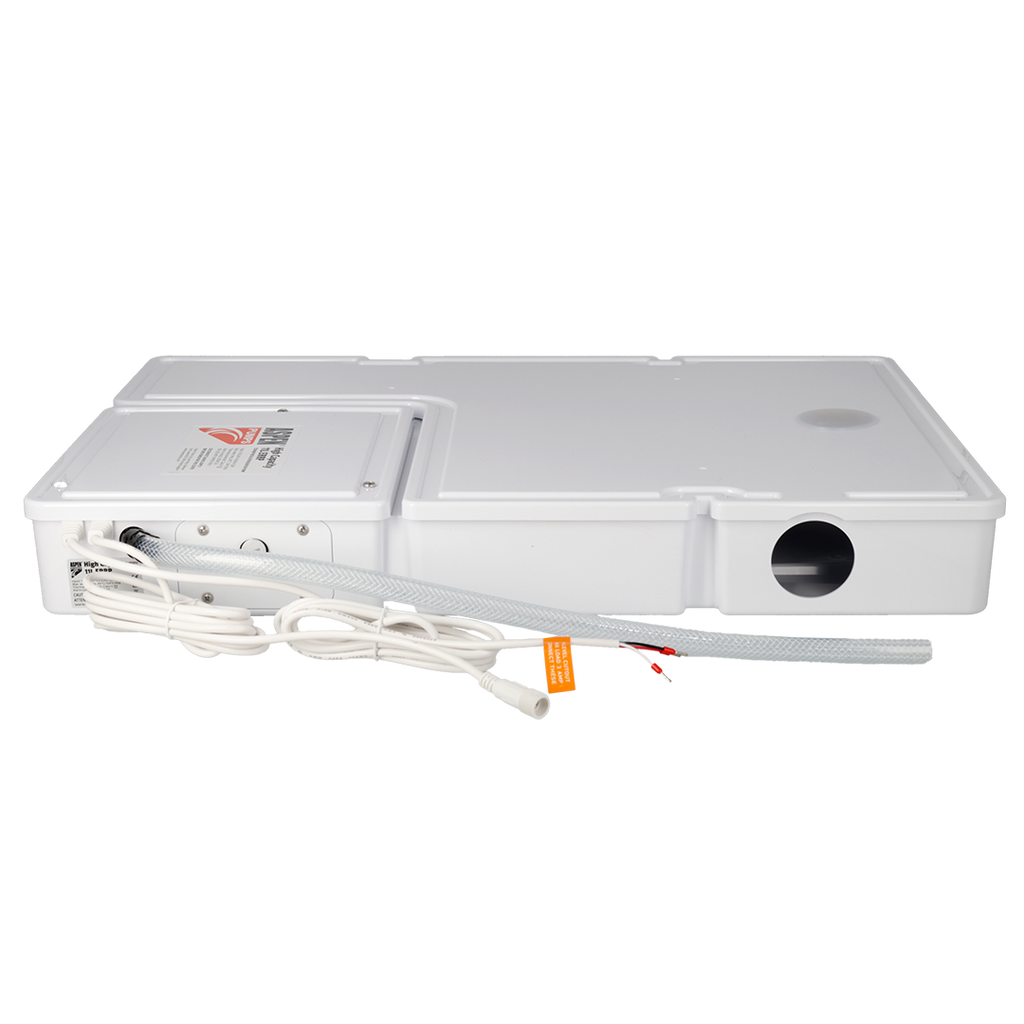

Aspen FP3552 High Capacity 11L ERRP Condensate Removal Pump | Side Inlet
The Aspen FP3552 High Capacity 11L ERRP (Economy Retail Refrigeration Pump) is designed for multiple refrigeration unit installations in supermarkets and cold stores. Sharing the same ultra-slim 75mm profile as the Compact 4L ERRP, it offers a significantly larger 11.1L tank and higher 230 L/h flow rate — making it ideal for demanding multi-cabinet installations where condensate volumes are high.
With a 35m maximum head, a 2-stage biofilm filter, and a Plug & Play installation, it handles defrost and contaminated water removal efficiently and safely.
Key Features & Benefits
- High capacity 11.1L tank – ideal for multiple refrigeration unit installations
- Ultra-slim 75mm profile – fits underneath standard retail refrigeration cabinets
- 2-stage filter – catches debris and prevents growth and spread of biofilm
- Low voltage at point of use – safe for retail environments
- Plug & Play – 2m Plug & Play power cable included
- Universal voltage – 100–240V AC 50/60Hz
- IP44 protection – suitable for wet environments
- Thermal protection included
- Flammable refrigerant compatible – designed to minimise spark risk
- 3A NC/NO safety switch
- Modbus RTU compatible – option available (FP3565)
- Non-continuous rated, Class II appliance
What's in the Box
- Aspen FP3552 High Capacity 11L ERRP pump
- 2m Plug & Play power cable
- 1-1/2" BSP connector (for 40mm ID waste pipe)
- Install manual
Suggested Accessories
- AX5101 – Vinyl tube braided 3/8" (10mm)
- S010371 – Jallystrips
- FP3565 – Modbus RTU option (extra)
Specifications
SKU / Part No. |
FP3552 |
Max flow |
230 L/h @ 0 head |
Max head |
35m |
Tank capacity |
11.1L |
Inlet type |
Side inlet (40mm in, 10mm out) |
Power supply |
100–240V AC, 50/60Hz |
Rating |
Non-continuous, Class II appliance |
Safety switch |
3A NC/NO |
IP protection |
IP44 |
Thermal protection |
Yes |
Flammable refrigerant compatible |
Yes (minimises spark risk) |
Max ambient temp |
40°C / 104°F |
Sound level |
60dB(A) at 1m |
Weight |
3.91kg |
Dimensions |
592 x 487 x 75mm |
Brand |
Aspen Pumps (Aspen Pumps Group) |
Also Available
- FP3550 – Compact 4L ERRP, side inlet (190 L/h, 4.2L tank)
- FP3551 – Compact 4L ERRP, top inlet
- FP3553 – High Capacity 11L ERRP, top inlet
- FP3565 – High Capacity 11L ERRP with Modbus RTU
Ideal Applications
- Multiple retail refrigeration cabinet condensate removal
- Supermarket cold store defrost water removal
- High condensate volume installations
- Any application requiring an ultra-slim, high-capacity under-cabinet condensate pump
