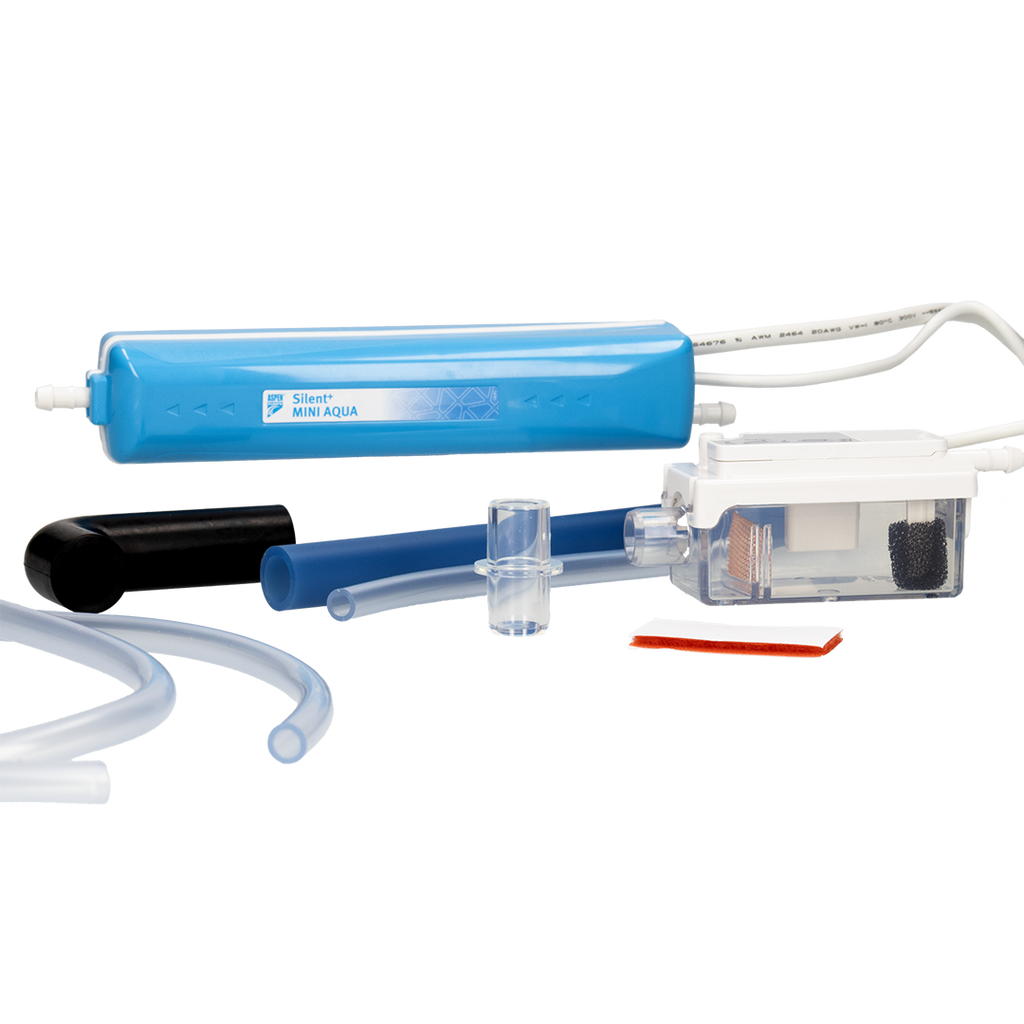

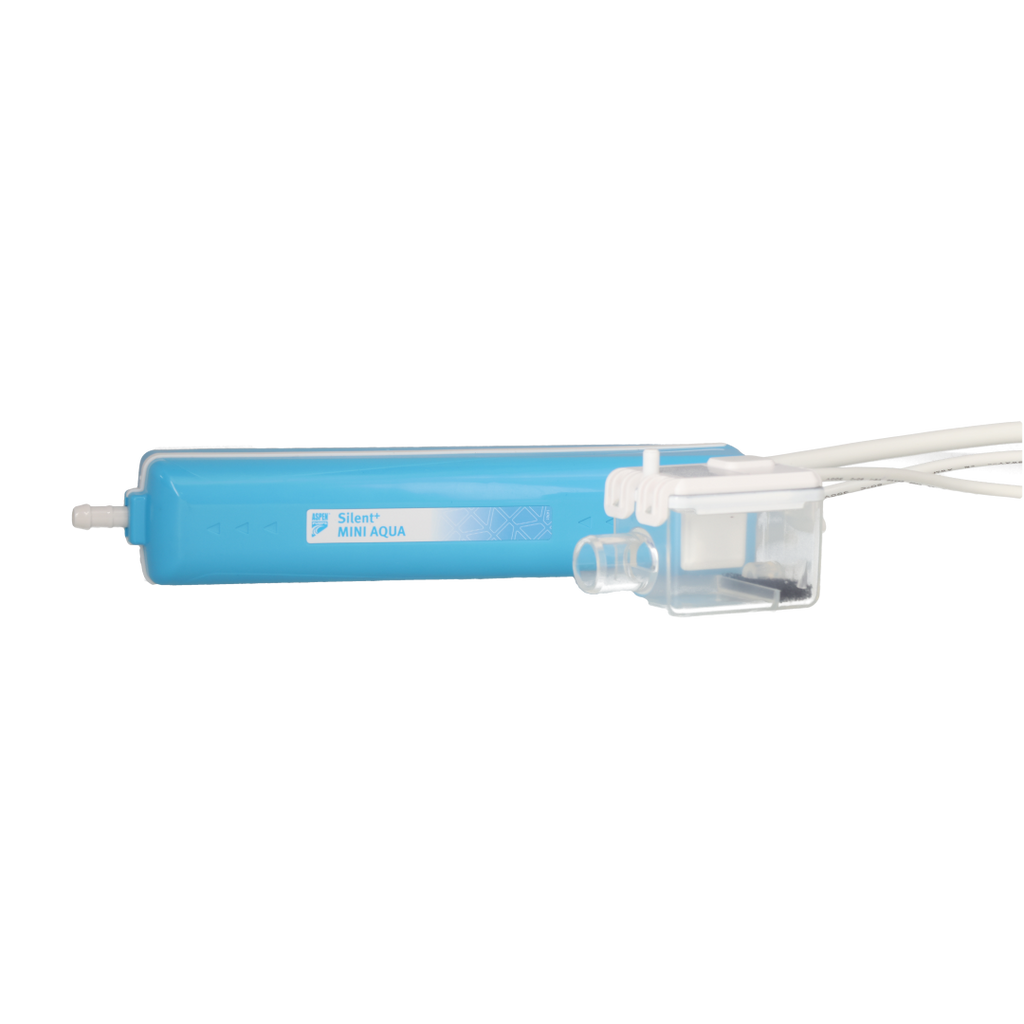

Aspen Silent+ Mini Aqua Gen 5 Condensate Pump – FP3420
The Aspen Silent+ Mini Aqua Gen 5 (FP3420) is a high-capacity ultra-quiet condensate removal pump designed for larger split and multi-split air conditioning systems up to 16kW. Delivering 35 L/h at just 15 dB(A), the Mini Aqua handles higher condensate volumes while remaining virtually inaudible — ideal for larger residential rooms, open-plan offices, and light commercial spaces.
The distinctive aqua blue housing differentiates it instantly from the 12kW Mini Orange on site, reducing installation errors. Gen 5 brings improved motor reliability and a refined compact design.
Replaces: Aspen Mini Aqua FP2406 (discontinued). The FP3420 is the current generation replacement.
Key Features
- Ultra-quiet operation — 15 dB(A)
- Suitable for AC systems up to 16kW
- Max flow rate: 35 L/h
- Max head: 10m
- IP24 — splash proof rated
- Outlet connection: 6mm (1/4")
- Includes 6mm and 8mm inlet adaptors
- Plug-and-play installation — no tools required
- Alarm output for system shutdown on pump failure
- UK plug included
- Made in the United Kingdom
Typical Applications
- Larger residential and light commercial split AC systems
- Wall-mounted and cassette indoor units up to 16kW
- Multi-split installations with higher condensate volumes
- Installations where noise levels are critical
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FP3420 |
| Replaces | FP2406 (discontinued) |
| Max flow rate | 35 L/h |
| Max head | 10m |
| Noise level | 15 dB(A) |
| IP Rating | IP24 |
| Power supply | 220–240V / 50Hz |
| AC system capacity | Up to 16kW |
| Inlet diameter | 6mm / 8mm (adaptors included) |
| Outlet diameter | 6mm OD (1/4") |
| Max ambient temp | 40°C |
| Max water temp | 40°C |
| Dimensions (L×W×H) | 328 × 140 × 59mm |
| Weight | 0.408kg |
| Colour | Aqua Blue |
| EAN | 5060144949844 |
| Country of Origin | United Kingdom |
