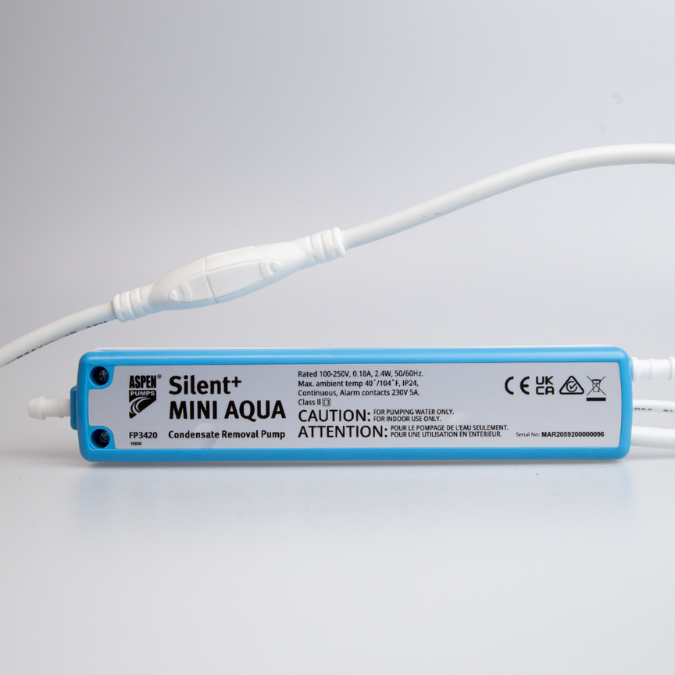

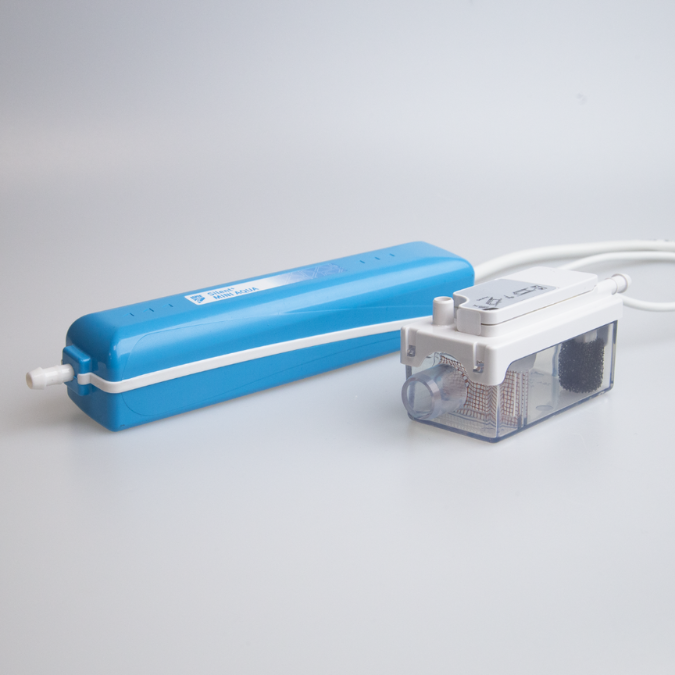

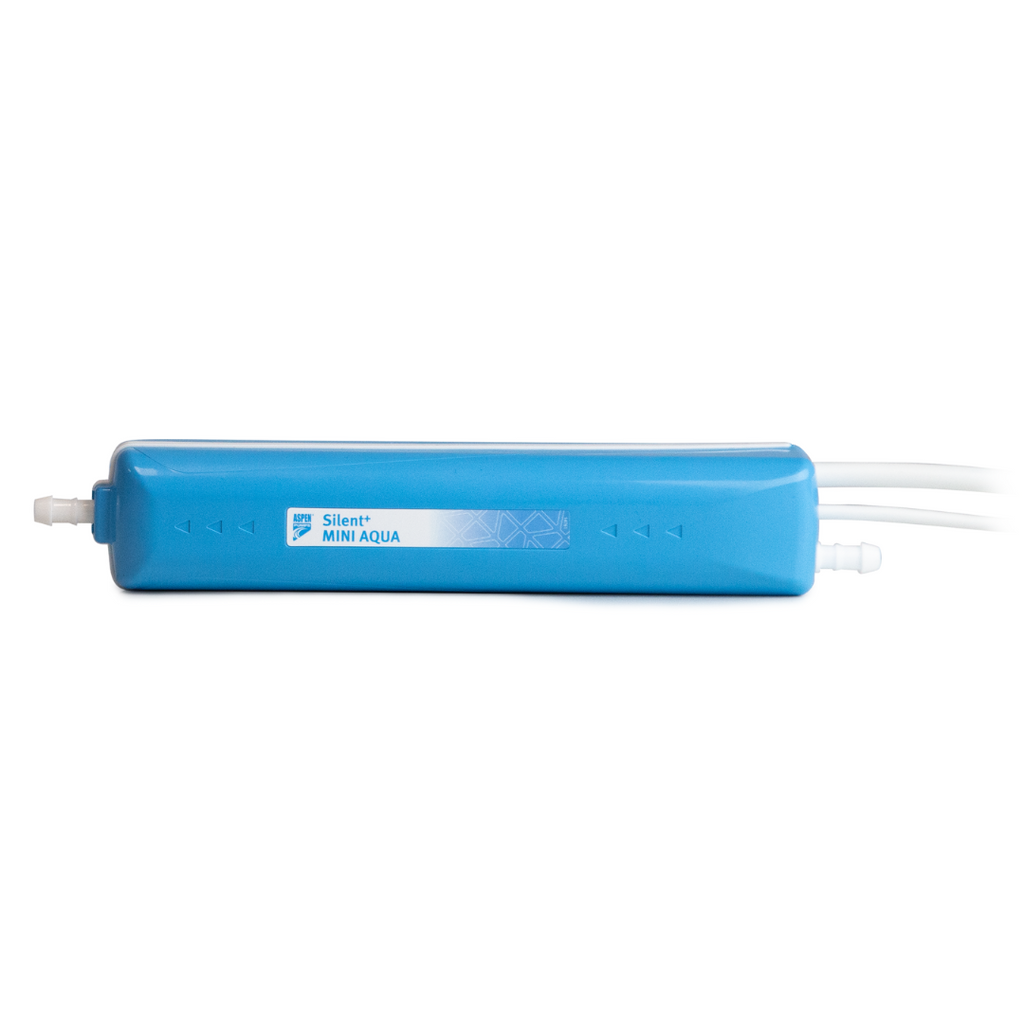

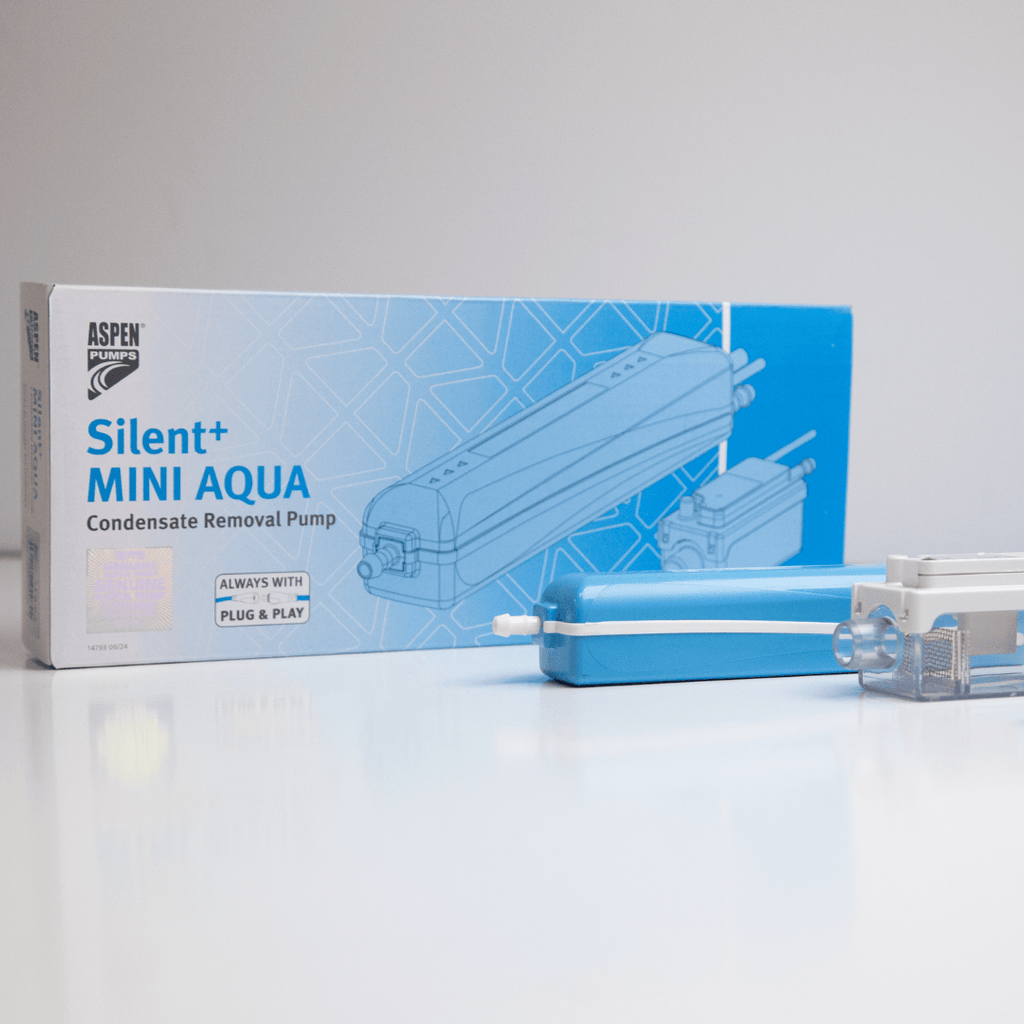

Aspen Silent+ Mini Aqua Gen 5 Condensate Pump – FP3420
The Aspen Silent+ Mini Aqua Gen 5 is a high-capacity ultra-quiet condensate removal pump designed for larger split and multi-split air conditioning systems up to 16kW. Delivering 20 L/h at less than 25dB(A), the Mini Aqua handles higher condensate volumes while remaining virtually silent — ideal for larger residential rooms, open-plan offices, and light commercial spaces.
The distinctive aqua blue housing differentiates it instantly from the 12kW Mini Orange on site, reducing installation errors. Gen 5 brings improved motor reliability and a refined compact design.
Key Features
- Ultra-quiet operation — less than 25dB(A)
- Suitable for AC systems up to 16kW
- Max flow rate: 20 L/h
- Max head: 10m
- Plug-and-play installation — no tools required
- Compact design — fits behind most indoor units
- Includes 6mm and 8mm inlet adaptors
- Alarm output for system shutdown on pump failure
- UK plug included
Typical Applications
- Larger residential and light commercial split AC systems
- Wall-mounted and cassette indoor units up to 16kW
- Installations where noise levels are critical
Technical Specifications
| Model | FP3420 |
| Max flow rate | 20 L/h |
| Max head | 10m |
| Noise level | < 25 dB(A) |
| Power supply | 220–240V / 50Hz |
| Power consumption | 18W |
| AC system capacity | Up to 16kW |
| Inlet diameter | 6mm / 8mm (adaptors included) |
| Outlet diameter | 6mm OD |
| Colour | Aqua Blue |
| Brand | Aspen Pumps |
