ITE TEC-7 Complete Tube Expander Kit | 7 Heads | 3/8" to 1-3/8" | Inch Sizes | Metal Case

ITE TEC-7 Complete Tube Expander Kit | Inch Sizes

The ITE TEC-7 is a professional complete tube expander kit in a metal carry case, designed for inch size copper tubing used in HVAC and refrigeration installations. Featuring ITE's proven concentric swage technology, it requires 40% less force than conventional expanders and produces consistently accurate, regular wall thickness expansions every time.

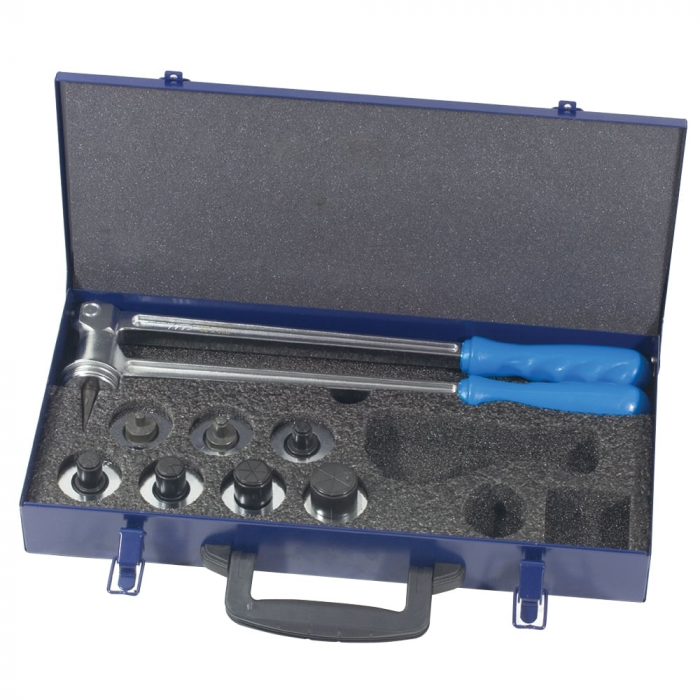

What's in the Kit

• ITE TE-6-01 Expander tool
• 7 expander heads: 3/8", 1/2", 5/8", 3/4", 7/8", 1-1/8" + extra 1-3/8"
• Metal carry case

Key Features & Benefits

• 40% less force required – rotation point is out of centre so all expansions up to 1-5/8" can be made in one step
• Faster operation – spring-loaded push rod always follows the eccentric end of the lever and never sticks
• Concentric swage – faceted cone ensures equal linear expansion of all segments and regular wall thickness
• Floating head segments – circular spring ring keeps segments together yet allows for free travel
• No special tool required for disassembly of heads
• Rerounds deformed tube ends – restores out-of-round tube ends before expanding

Specifications

• SKU: Q024
• Size range: 3/8" to 1-3/8" (inch)
• Heads included: 3/8", 1/2", 5/8", 3/4", 7/8", 1-1/8", 1-3/8"
• Case: Metal carry case
• Brand: ITE (Diversitech)

Individual Heads Available Separately

Replacement and additional heads available individually for inch sizes: H-3/8, H-1/2, H-5/8, H-3/4, H-7/8, H-1, H-1-1/8, H-1-3/8, H-1-5/8

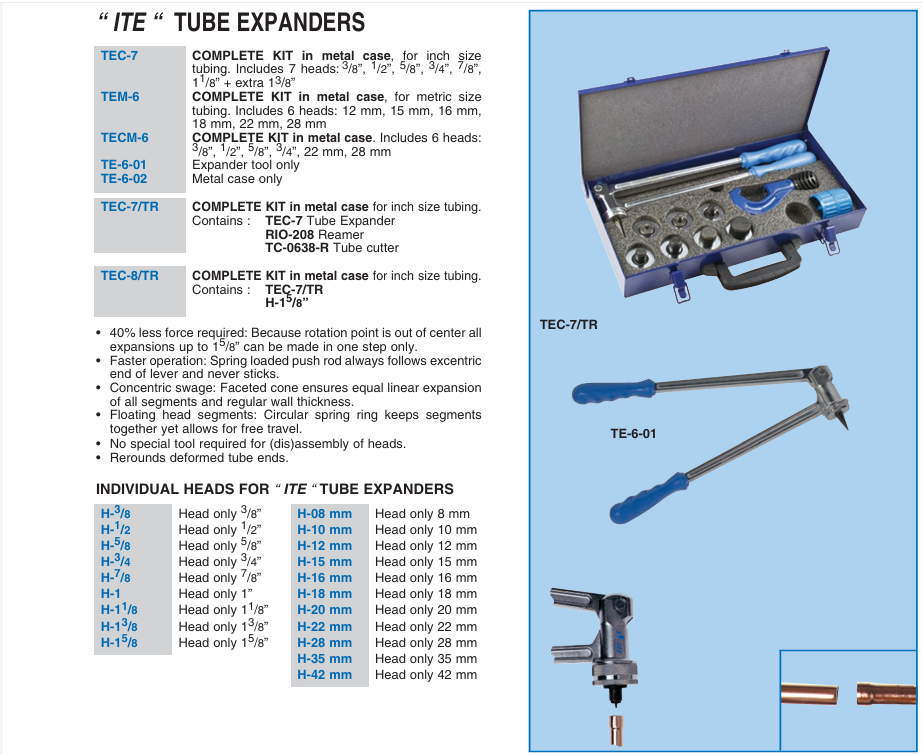

Also Available — ITE Tube Expander Range

• TEM-6 – Complete kit, metric sizes (12, 15, 16, 18, 22, 28mm)
• TECM-6 – Complete kit, mixed inch/metric (3/8", 1/2", 5/8", 3/4", 22mm, 28mm)
• TEC-7/TR – TEC-7 + RIO-208 Reamer + TC-0638-R Tube Cutter
• TEC-8/TR – TEC-7/TR + H-1-5/8" head
• TE-6-01 – Expander tool only

Ideal Applications

• Copper tube expansion for HVAC and refrigeration pipework
• Brazed joint preparation on inch size tubing
• Rerounding deformed tube ends on site
• Residential and commercial HVAC installation
