JAVAC Portable Lifter 120kg 3.7m

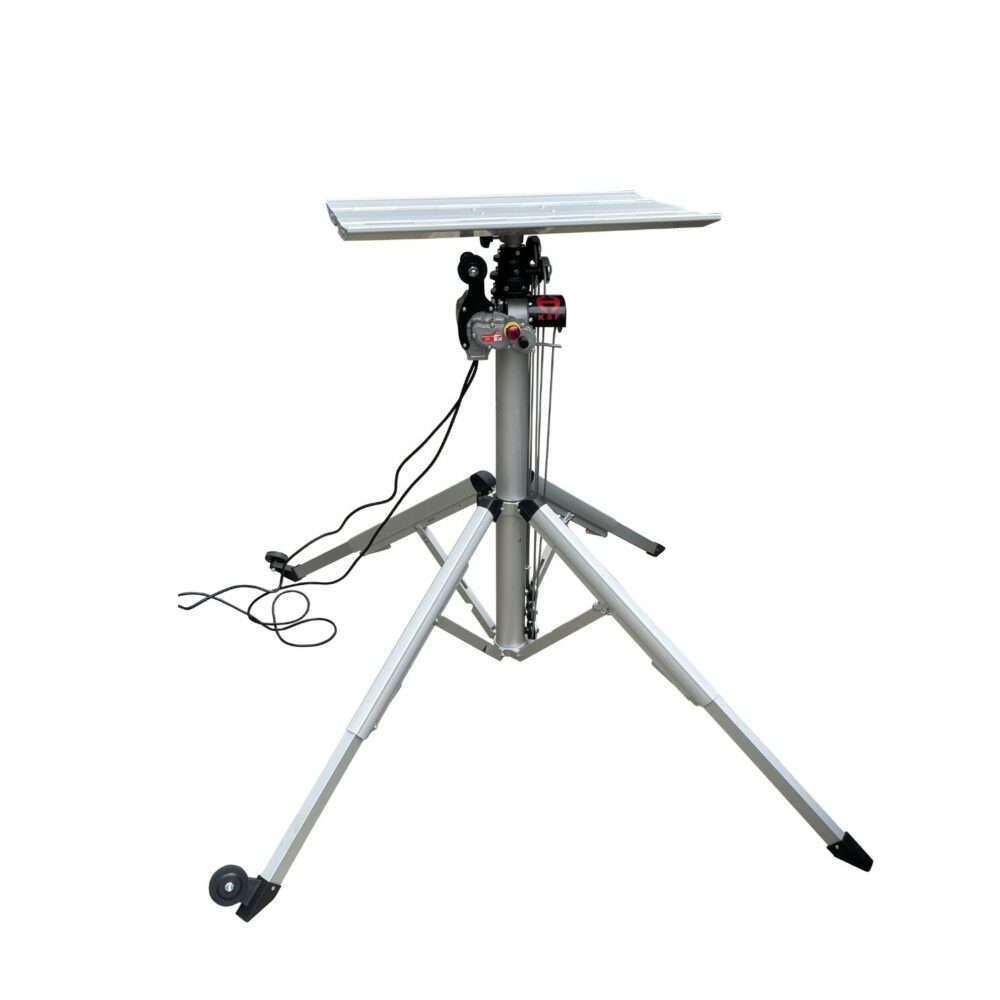

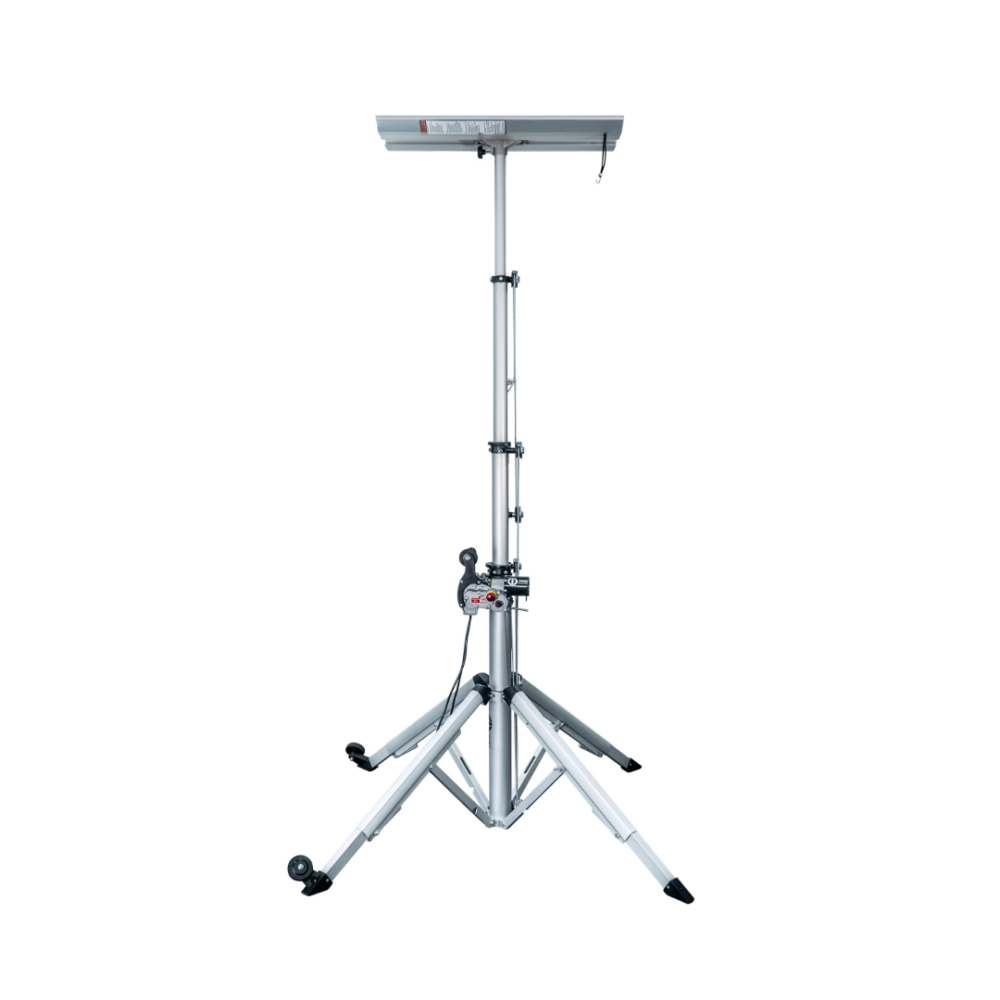

Javac EDGE JAV-1353 240V Portable Lifter — The Ultimate HVAC Lifting Solution

The Javac EDGE JAV-1353 is a professional-grade 240V electric portable lifter designed specifically for the HVAC industry. Built to assist with the safe lifting and positioning of heavy equipment including condensers, evaporators, ductwork, air handling units, and pipework, the JAV-1353 delivers unparalleled versatility across virtually all HVAC lifting and positioning requirements.

With extendable legs, a wide platform base, and robust construction, this lifter is engineered to endure tough site conditions — allowing engineers to work safely, securely, and efficiently. Supplied complete with everything needed to get straight to work on site.

Key Features

• 130kg maximum load capacity at 3.0m height
• 3.69m maximum lifting height
• Suitable for condensers, evaporators, ductwork, AHUs, pipework, and more
• Extendable legs and wide platform base for stability on site
• 240V electric motor — 220–240V @ 50/60Hz
• Emergency stop push button for safe operation
• IP43 rated — suitable for outdoor and site use
• WEEE / CE / UKCA compliant
• Supplied with EU plug and UK plug adaptor

Kit Contents

• 1 × Platform (75 × 44cm)
• 1 × Telescoping mast
• 1 × Pulley with pulley cover
• 1 × Steel cable

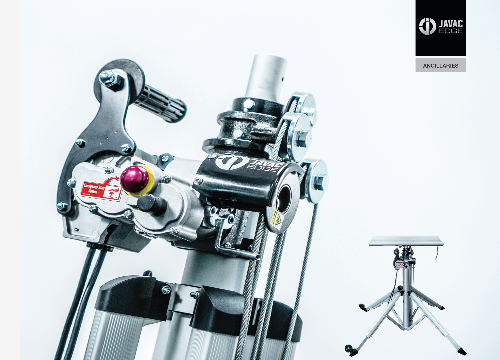

• 1 × Motor and gearbox
• 1 × Sliding ring
• 4 × Legs, 2 × Wheel
• 1 × Lever (select up or down)
• 1 × Emergency stop push button
• 1 × Trigger button to control speed
• 1 × Manual handle
• 1 × Wheeled bag

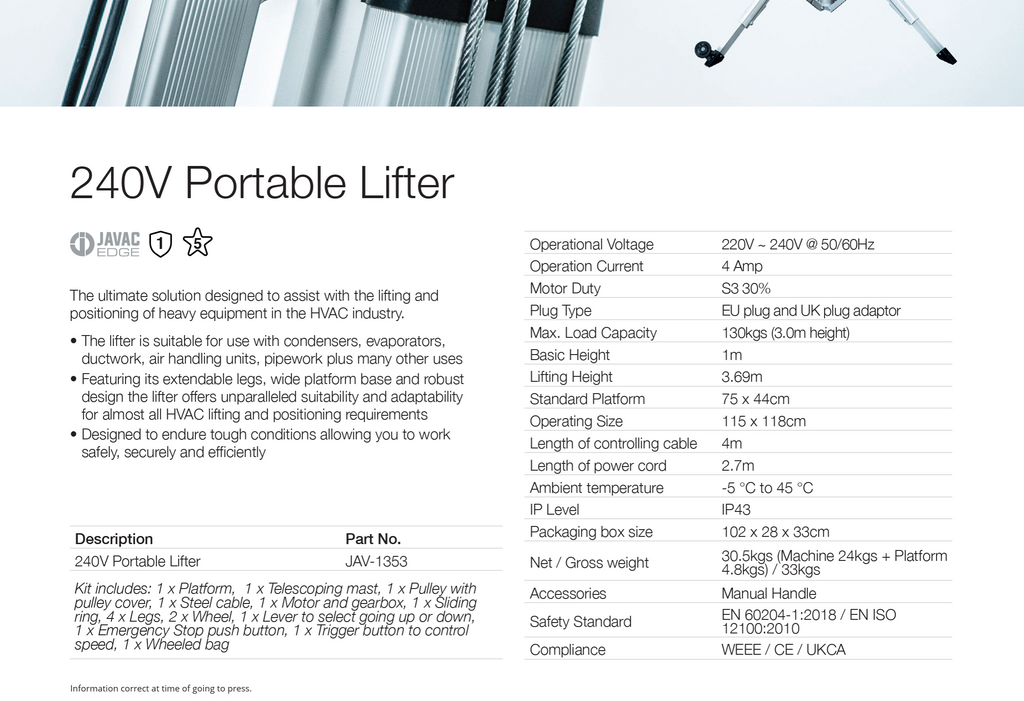

Technical Specifications
