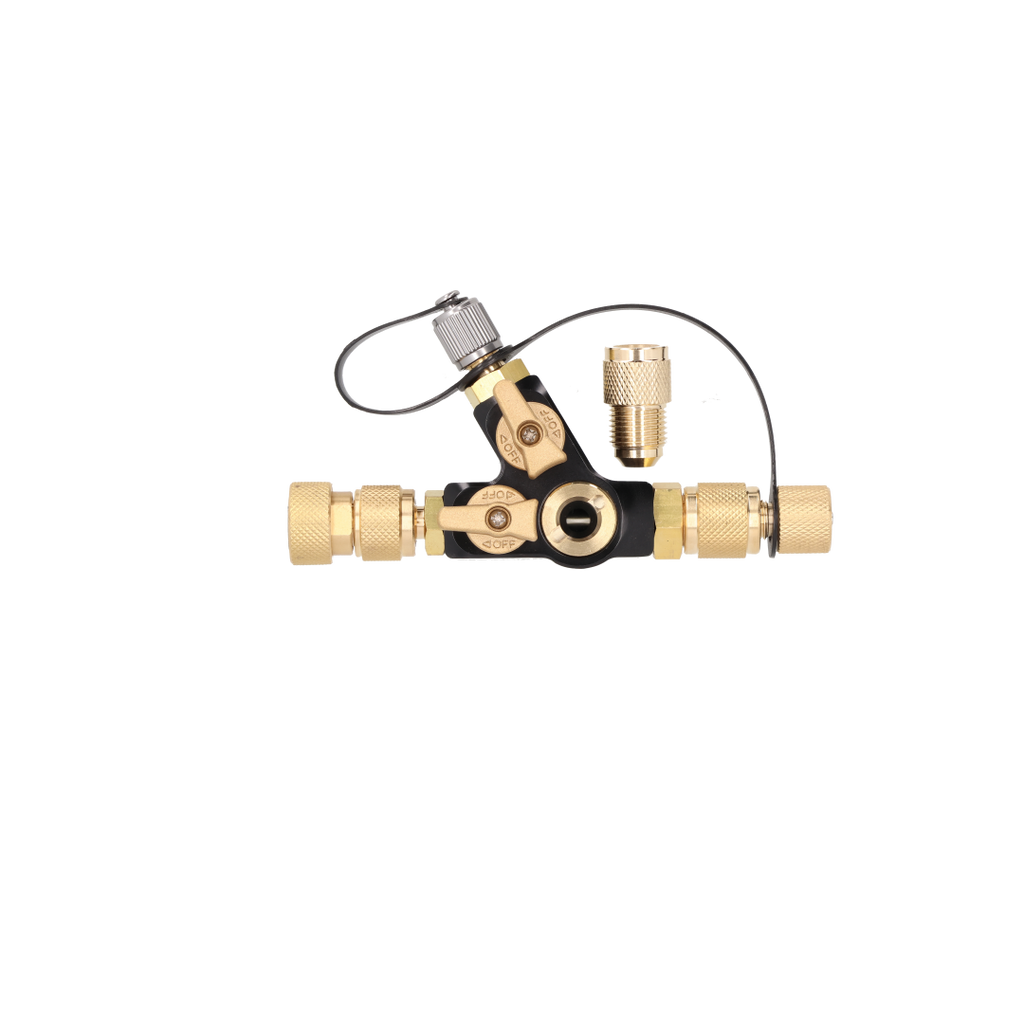

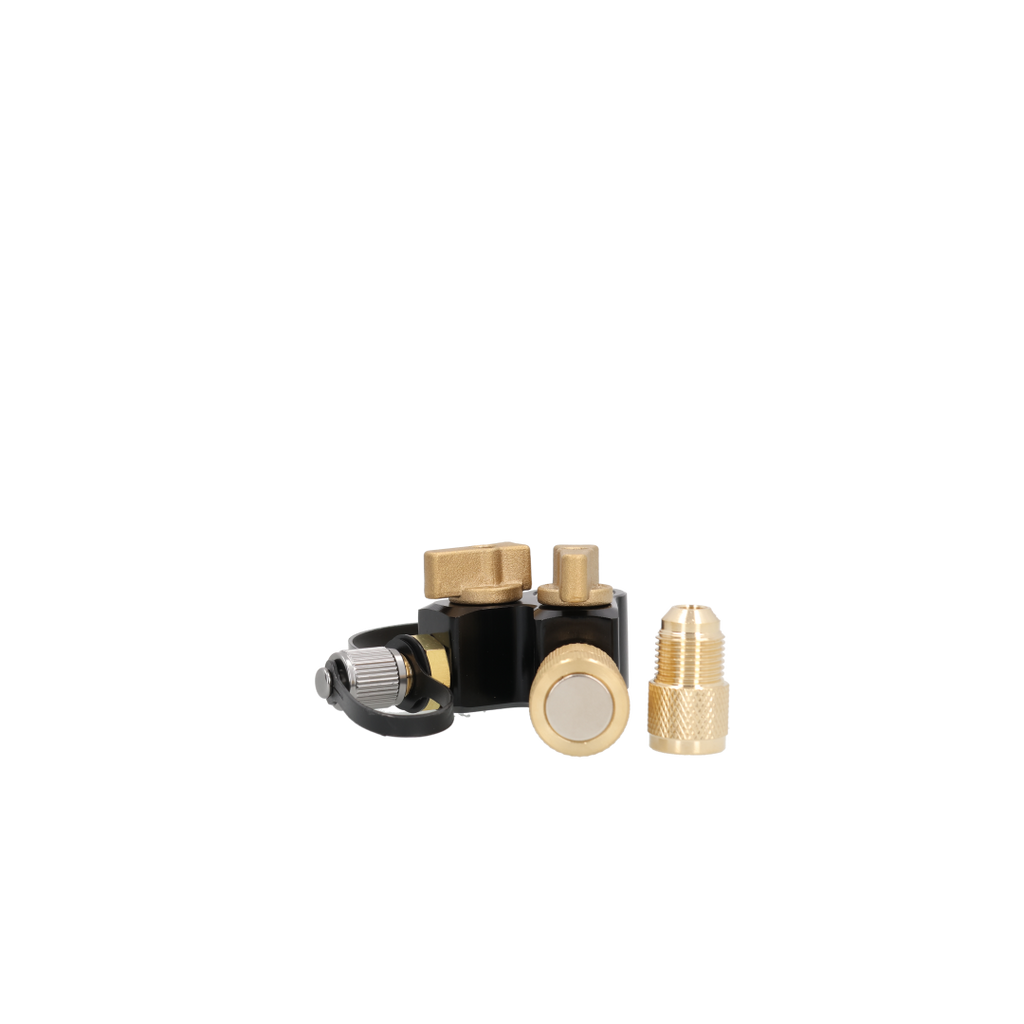

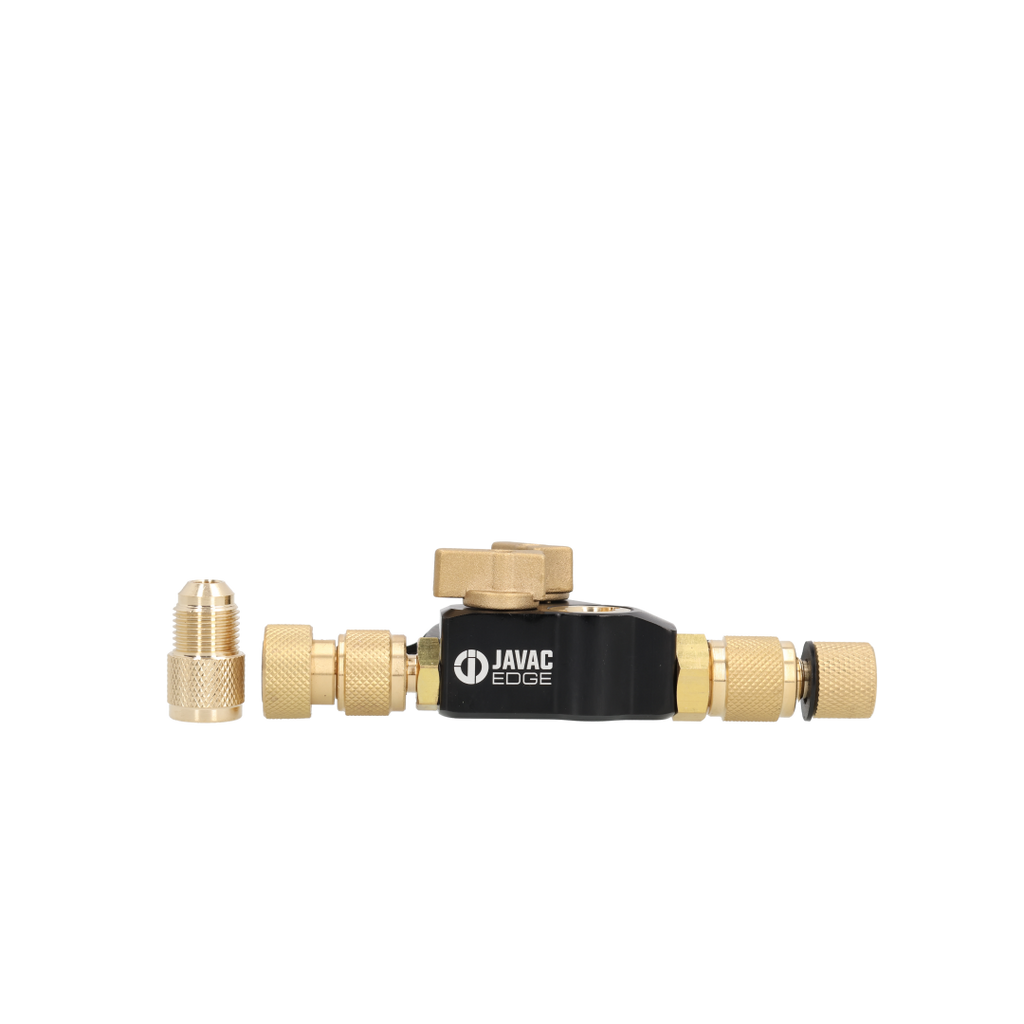

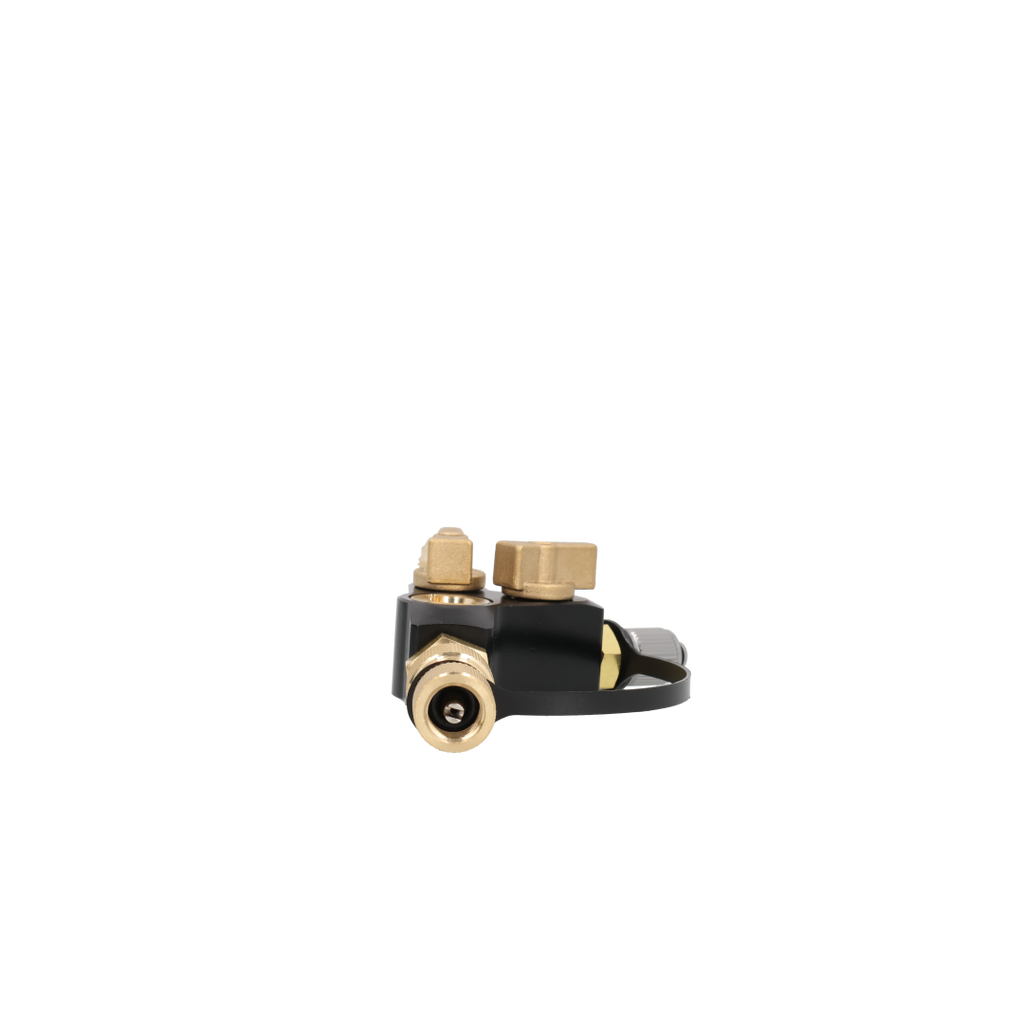

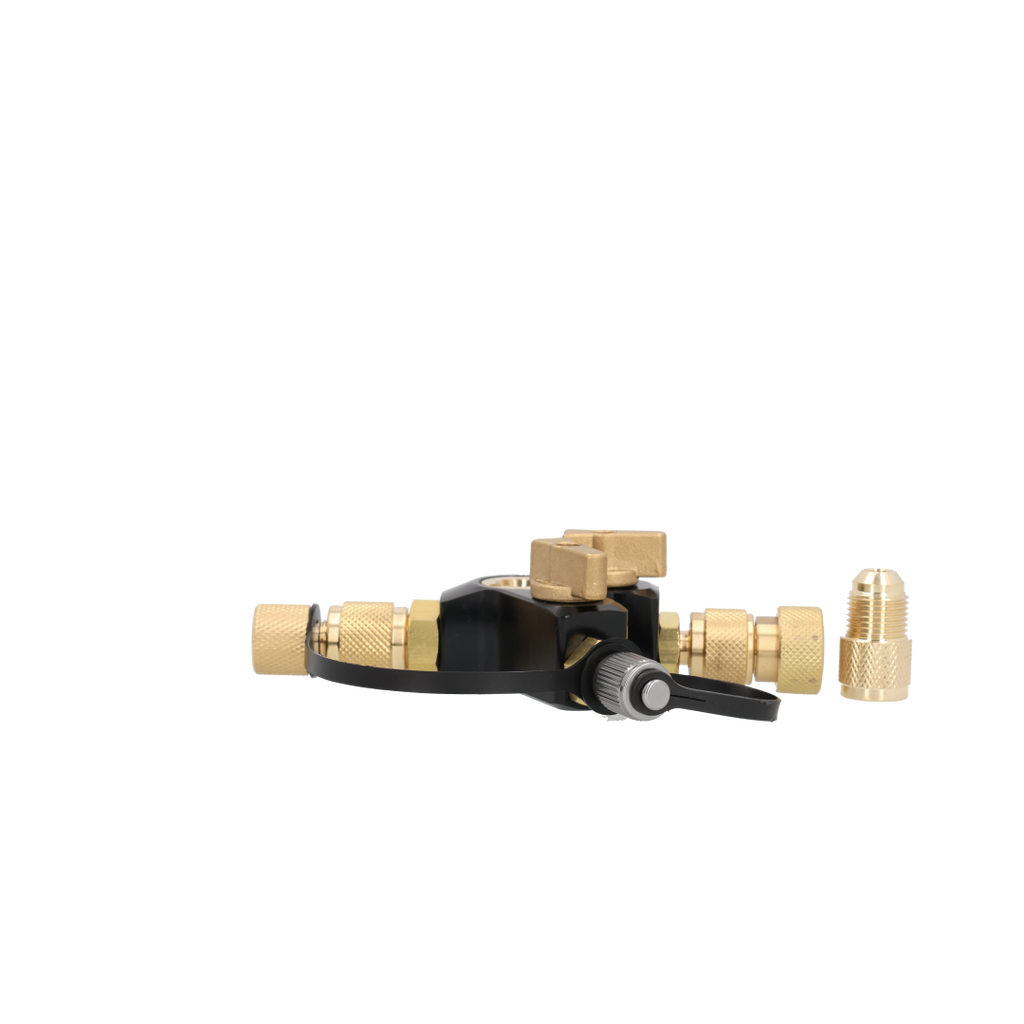

Javac EDGE Core Removal Y with Single Valve 1/4 and 5/16

The Javac EDGE Core Removal Y with Single Valve (1/4" & 5/16") is a premium refrigeration service tool combining a high-flow Y-body with an integrated core removal arm and single ball valve shut-off. Remove and replace Schrader valve cores from 1/4" and 5/16" service ports without losing refrigerant or breaking vacuum. Supplied in a moulded carry case with a 1/4" SAE to 3/8" adapter included.

• Y-body design — 3/8" x 3/8" inline flow path with 90° core removal arm
• Single ball valve shut-off on core removal arm — remove cores without refrigerant loss
• Compatible with 1/4" and 5/16" SAE service ports
• Vacuum rated to 20 microns
• Includes 1/4" SAE to 3/8" adapter
• Tethered magnetic cap on core removal port
• Aircraft-grade aluminium and brass construction
• A2L and A3 refrigerant compatible
• Supplied in moulded carry case
• Part of the Javac EDGE Ultimate Hi-Flow system
