Javac Edge Tube Expander Set Multi-Size

Javac Edge Tube Expander Set – 7 Sizes 1/4" to 1-1/8" (JAV-1025)

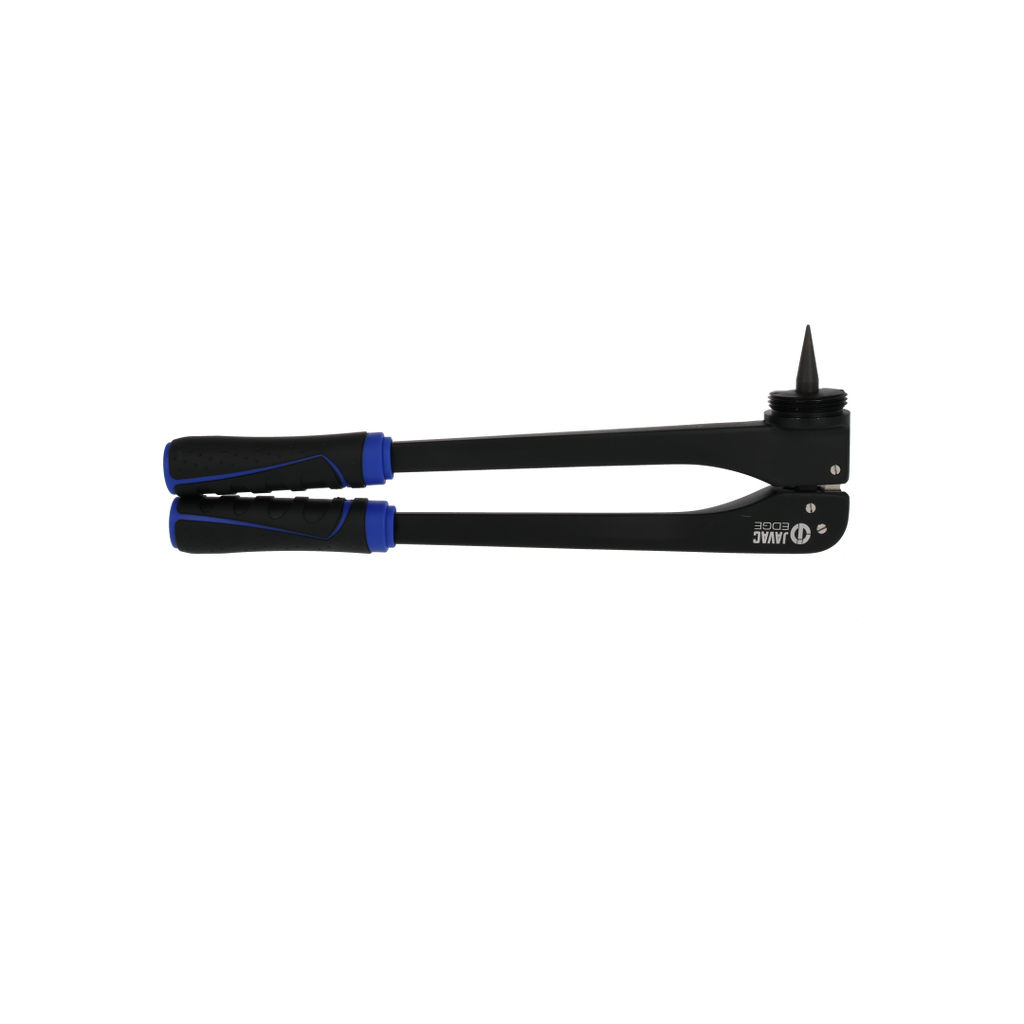

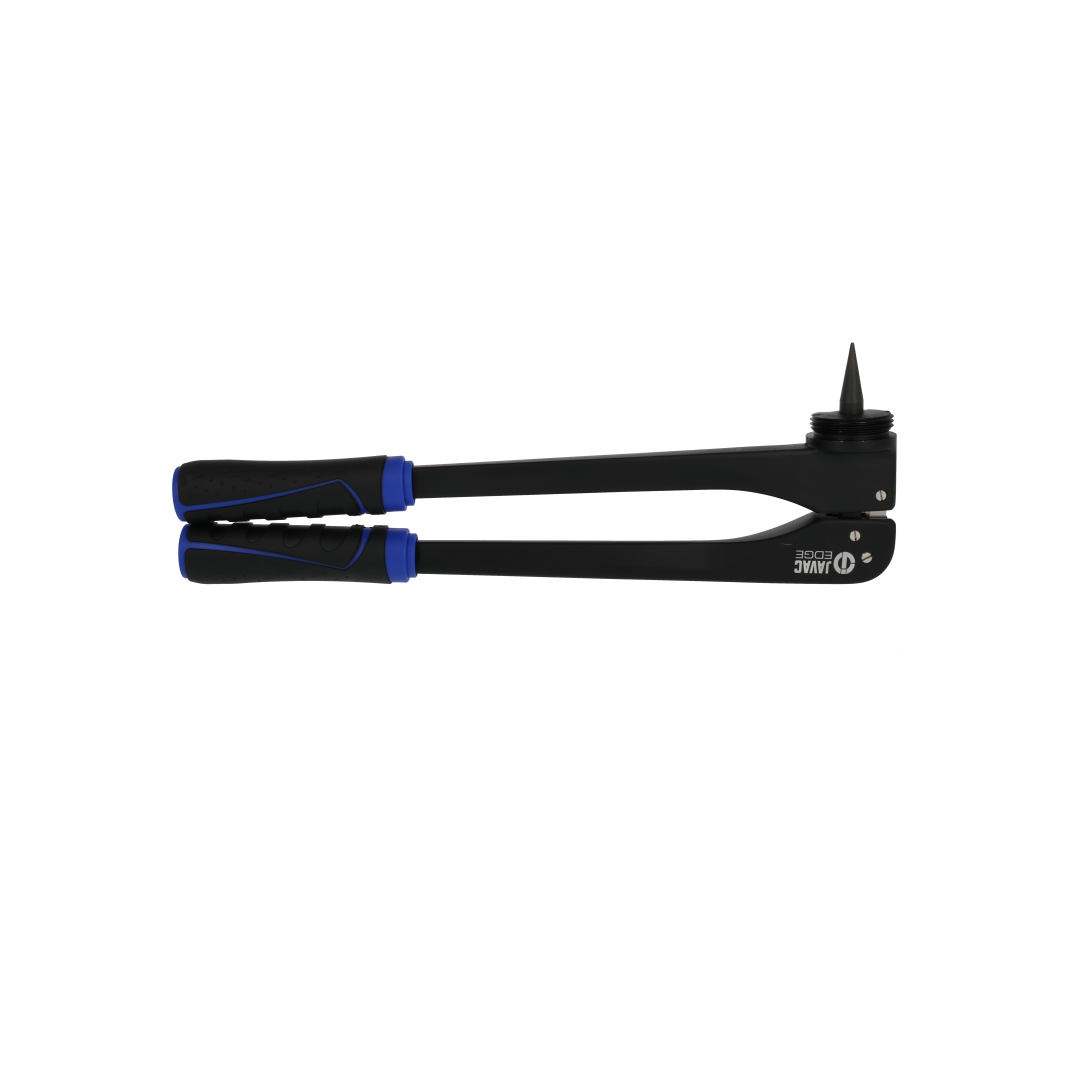

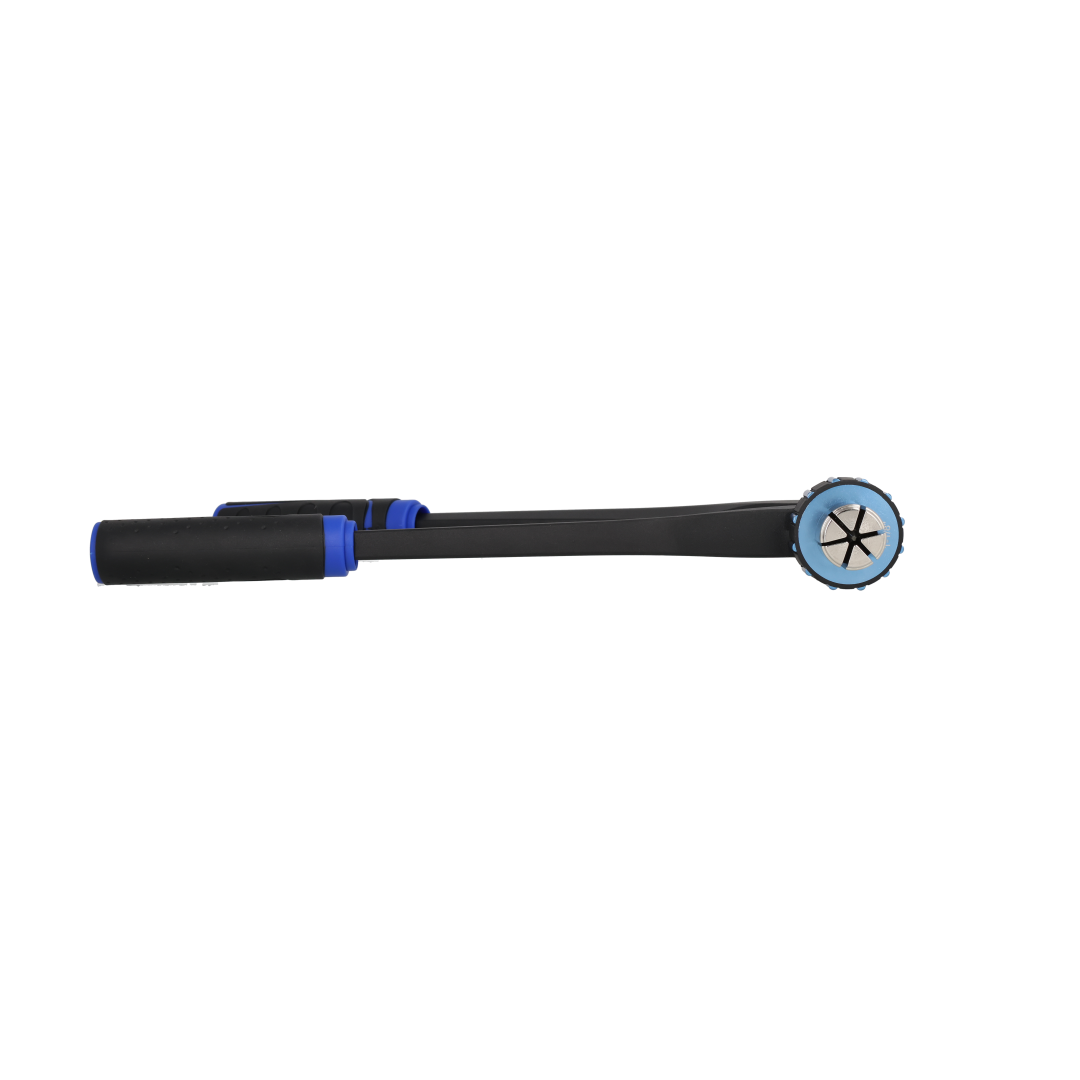

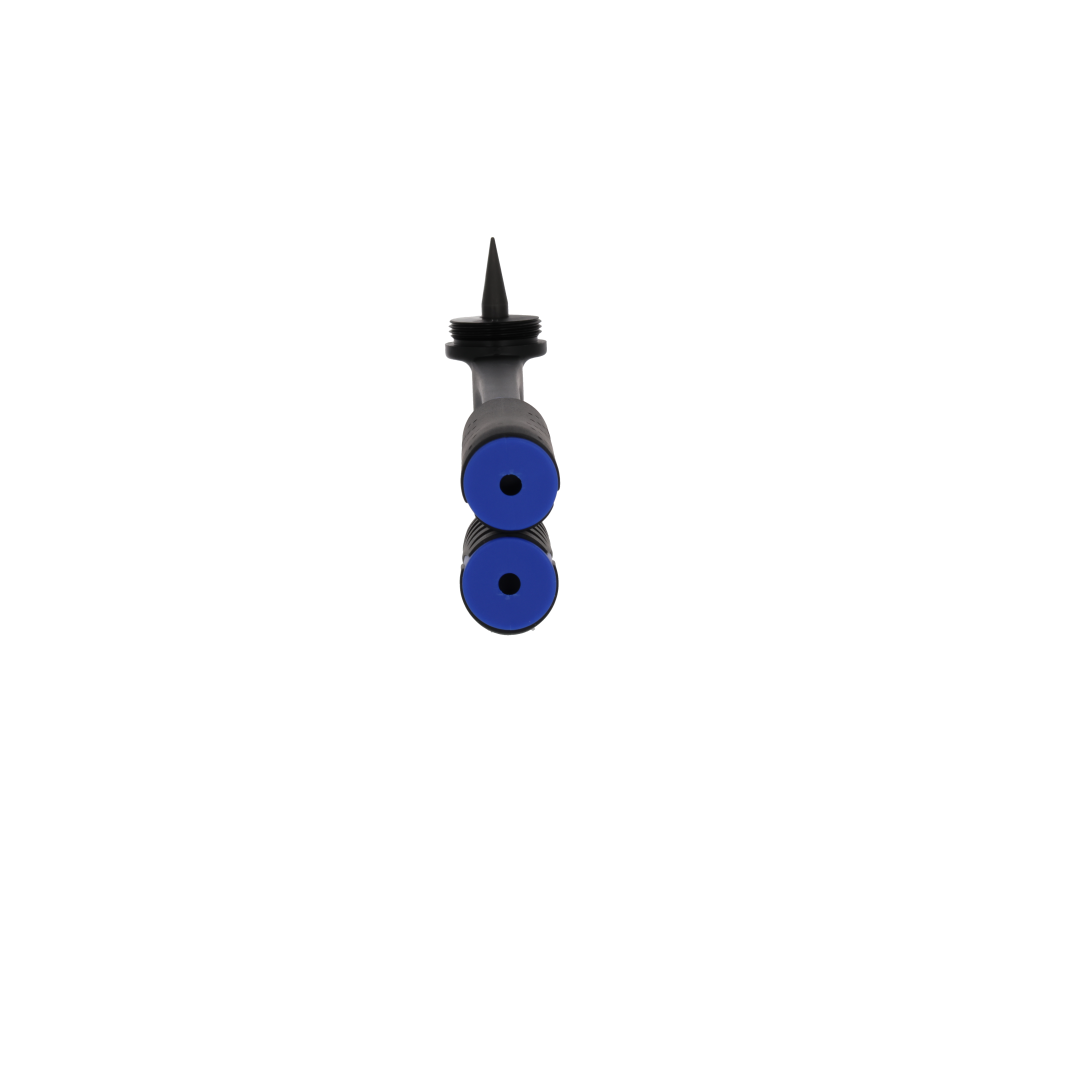

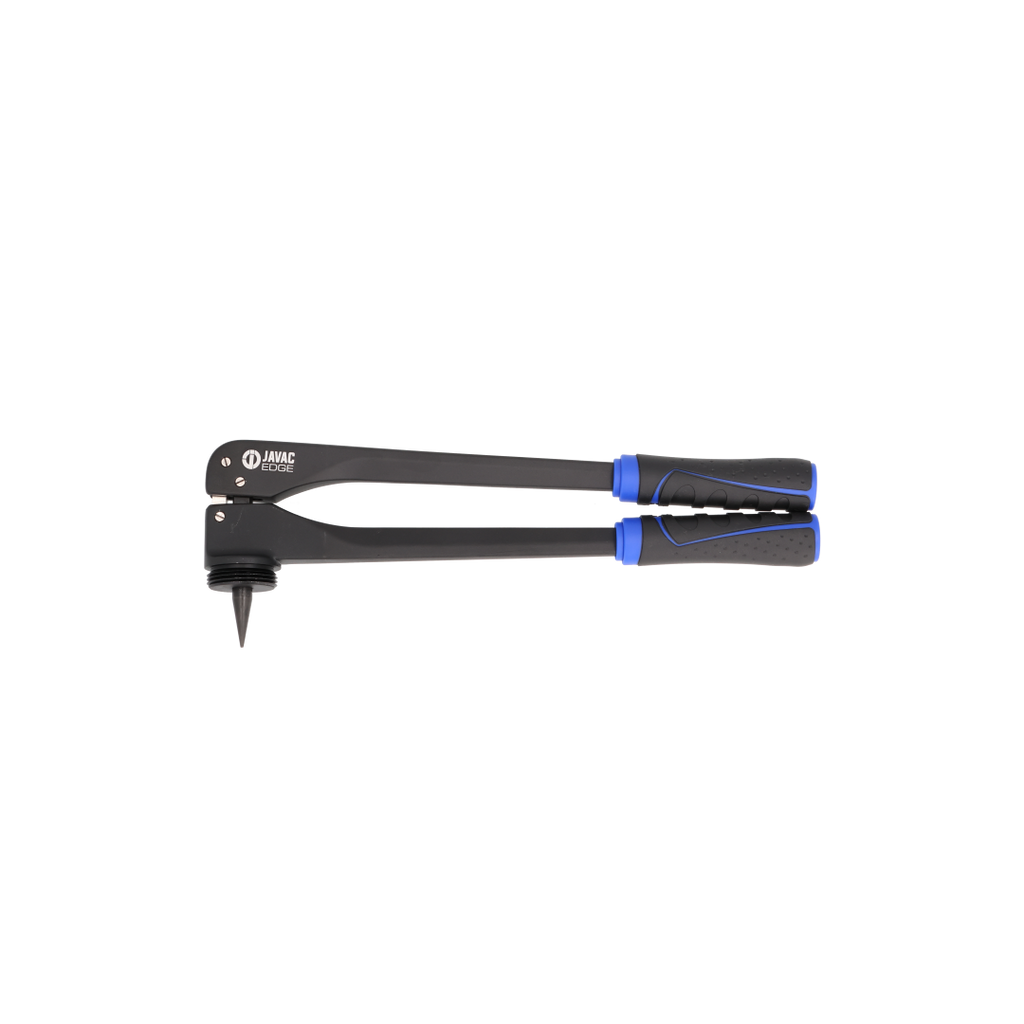

The Javac JAV-1025 Edge Expander Set is a professional lever-type tube expander set covering 7 imperial sizes from 1/4" to 1-1/8", designed for clean, accurate bell-mouth expansions in soft drawn copper tubing. Part of the Javac Edge range, featuring a patented design for reliable, repeatable results on site.

⚠️ Important: This tool is suitable for soft drawn coiled copper only. For hard tubes, the tip of the tube must be heated first to facilitate expansion. Do not use on hard drawn straight copper without pre-heating.

Key Features & Benefits

• 7 expander heads – covers the most common HVAC copper tube sizes from 1/4" to 1-1/8"

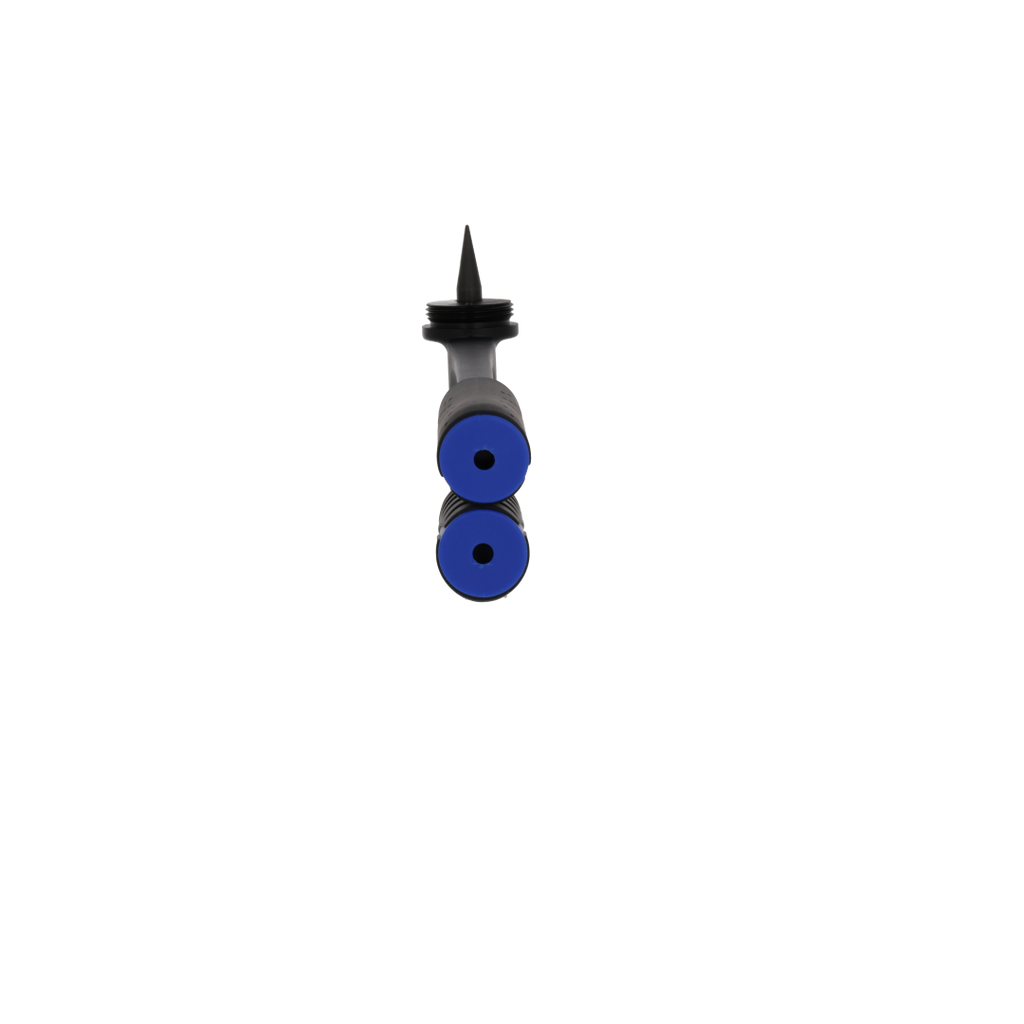

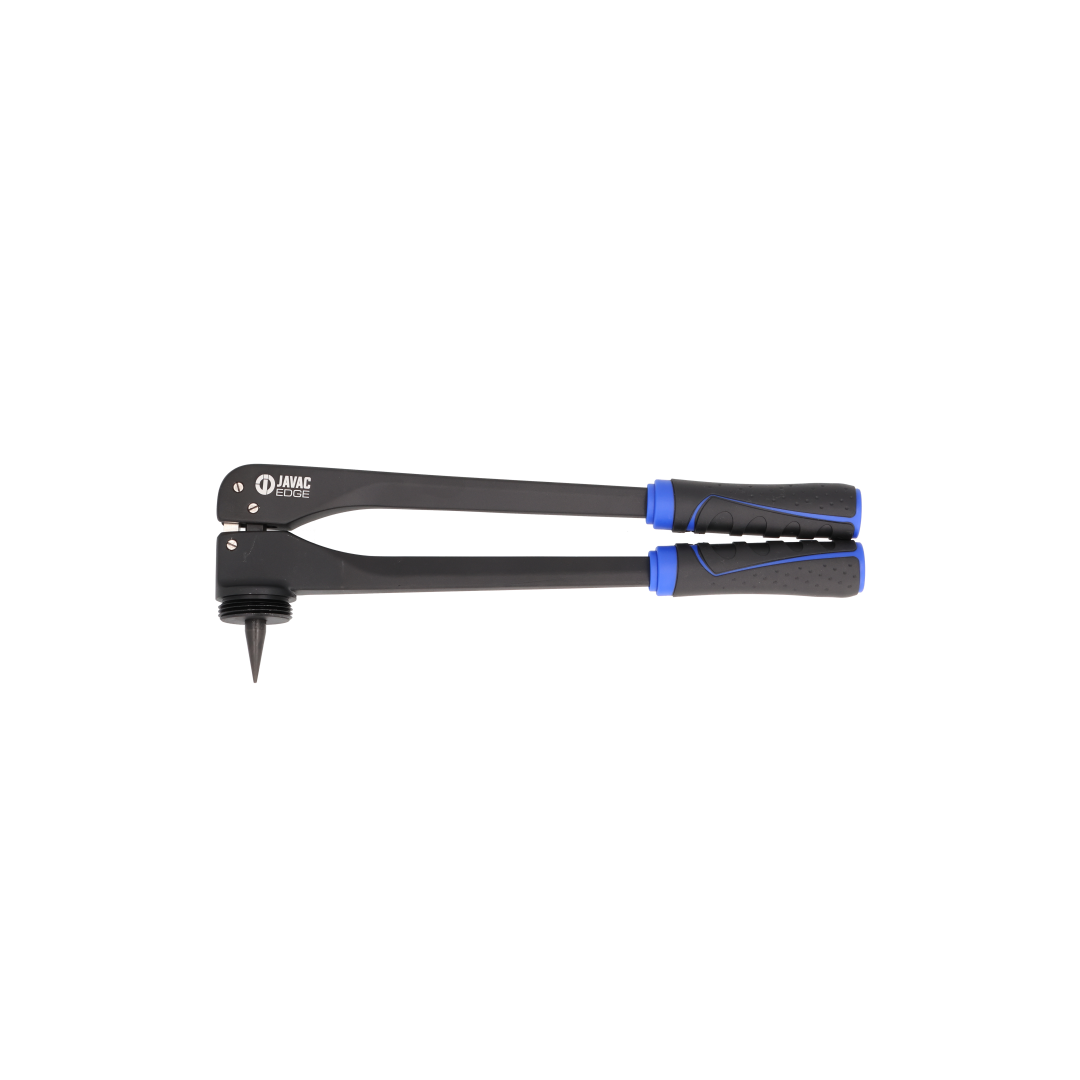

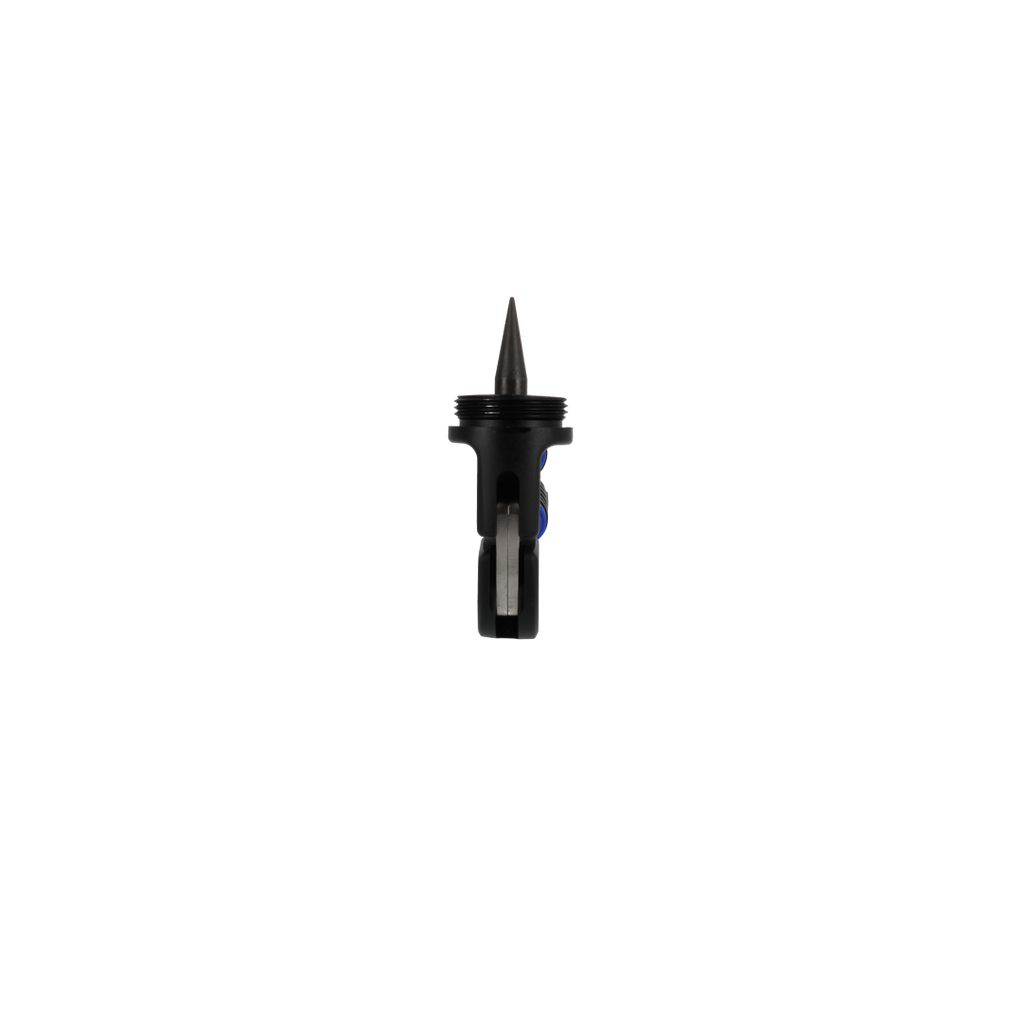

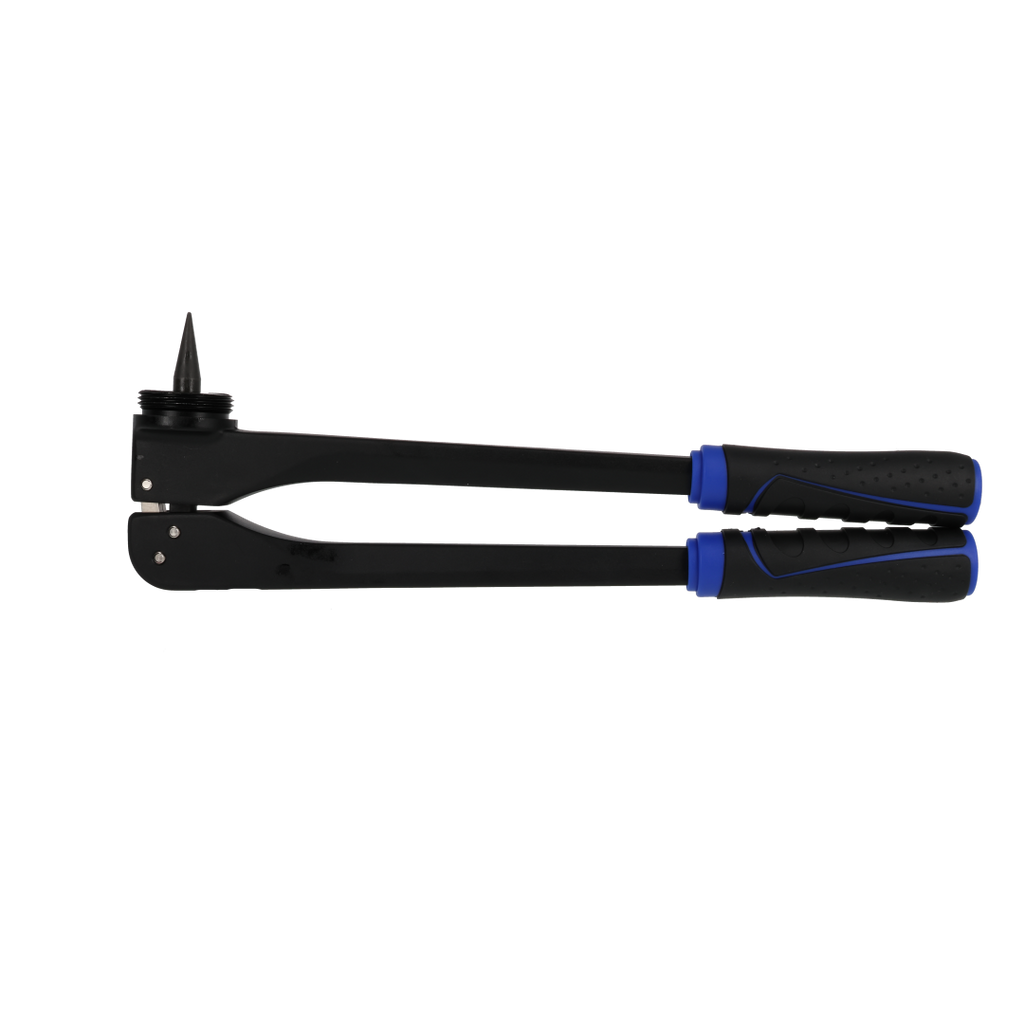

• Lever-type operation for smooth, controlled expansion with minimal effort
• Produces clean bell-mouth expansions for leak-free brazed joints
• Patented Javac Edge design for improved reliability and ease of use
• Laser-engraved heads for quick size identification on site
• Suitable for soft drawn coiled copper only
• Supplied in a protective carry case
• Spare heads available separately

What's Included

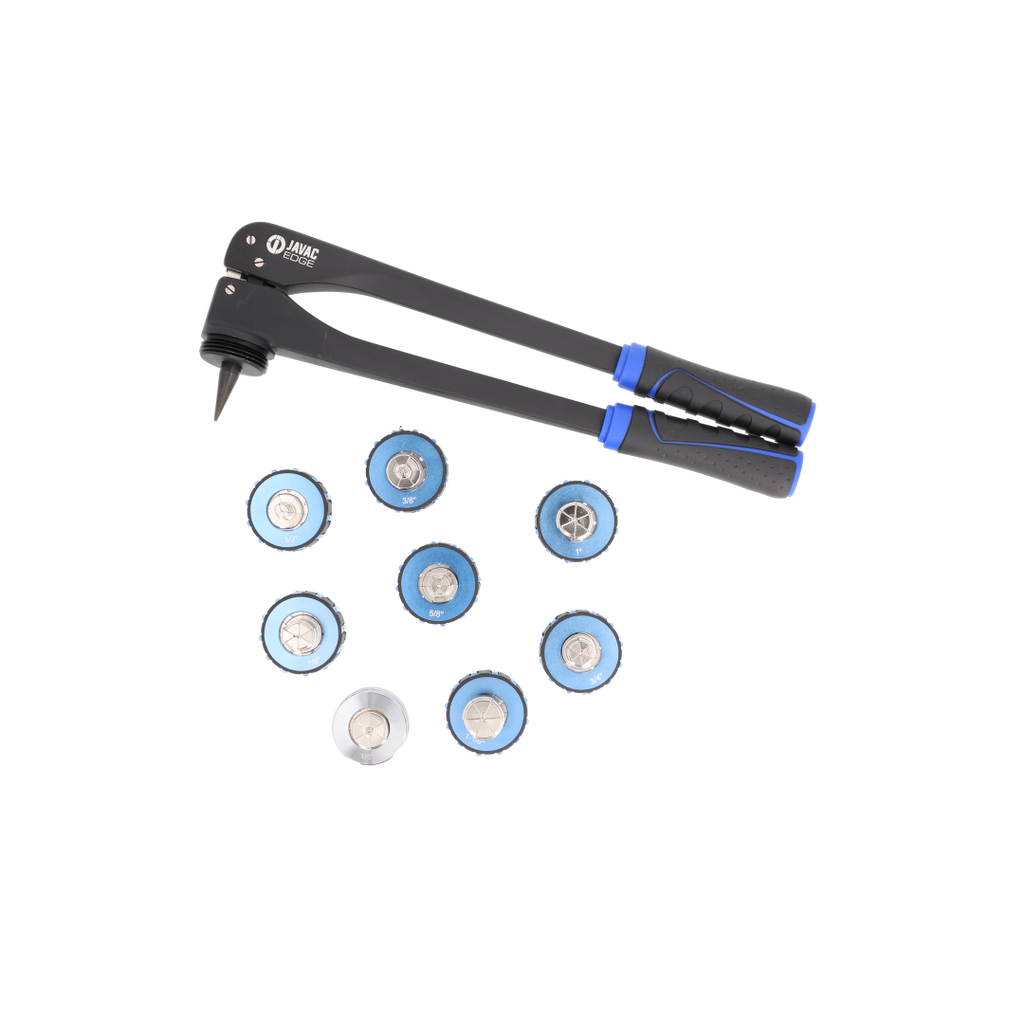

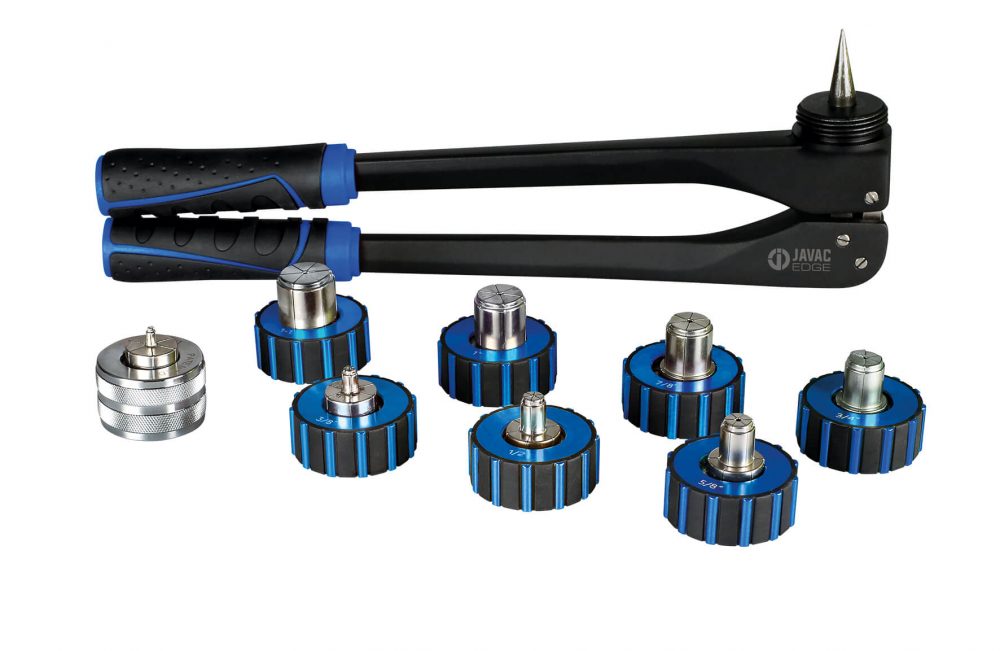

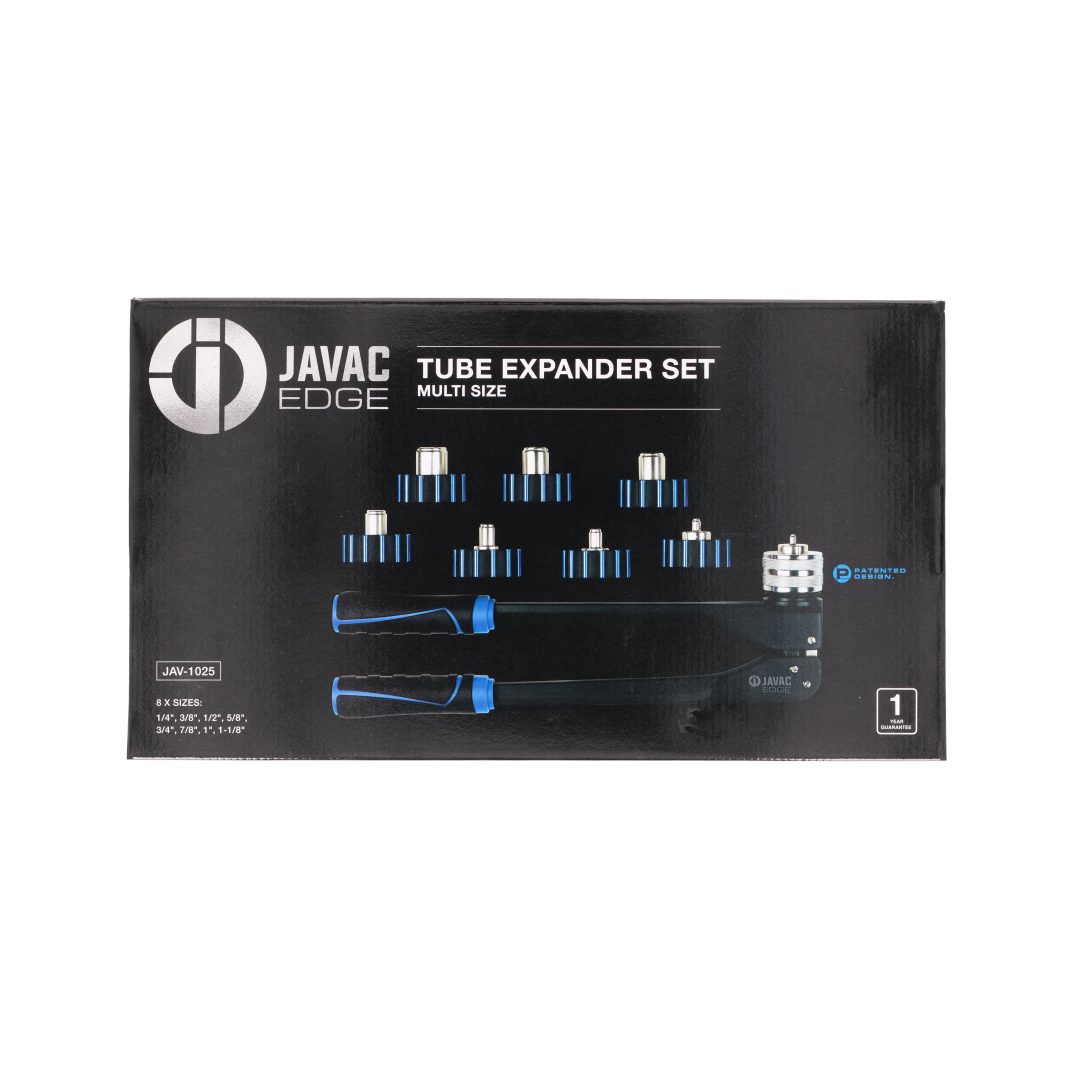

• 7 x expander heads: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1-1/8"

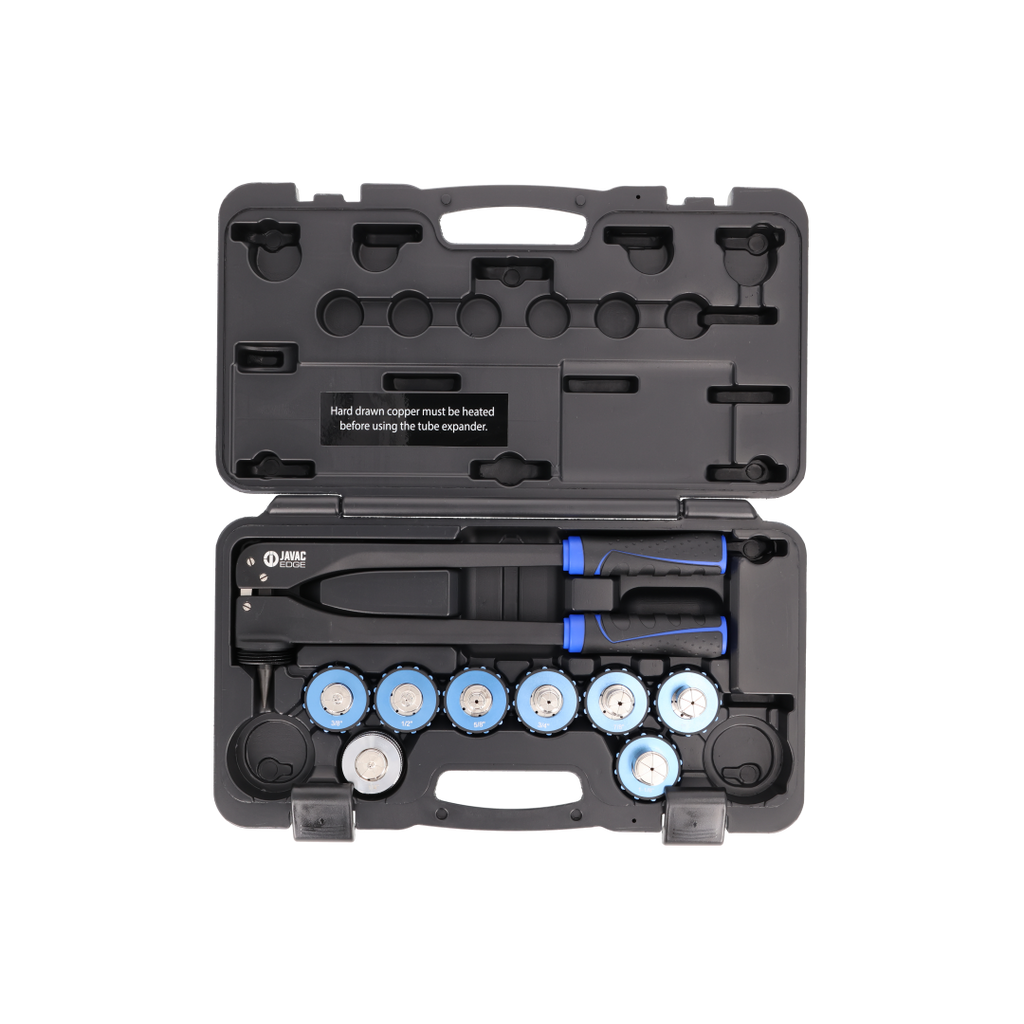

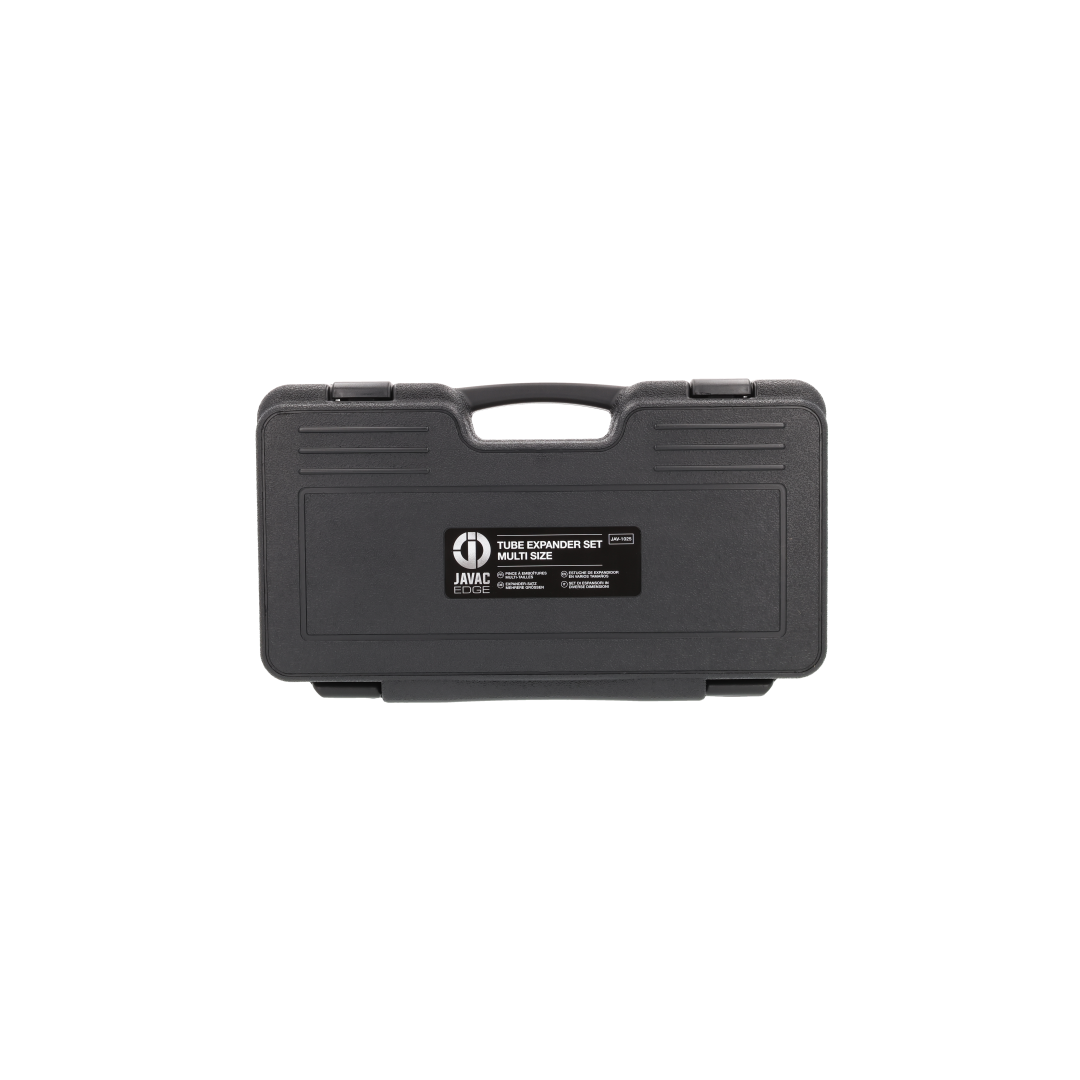

• Protective carry case

How to Use

1. Prepare the tube by deburring the inner and outer rims
2. Apply a small amount of lubricant to the expander cone and attach the correct expander head
3. Insert the expander head all the way into the tube. If the opening is too tight, first expand the tip using the smaller section at the end of the expander head
4. Bring the handles together to expand the tube. For best results, expand slightly, rotate the tube, then expand again — this ensures even expansion in all directions
5. Repeat until the tube is fully expanded

Specifications

• SKU: JAV-1025
• Expansion range: 1/4" to 1-1/8" OD (imperial)
• Number of heads: 7
• Operation: Lever-type
• Compatible material: Soft drawn coiled copper only
• Brand: Javac (Aspen Pumps Group)

Ideal Applications

• HVAC refrigerant pipework installation
• Copper tube joining and brazing preparation
• Split system and multi-split AC installations
• Commercial and residential refrigeration pipework
