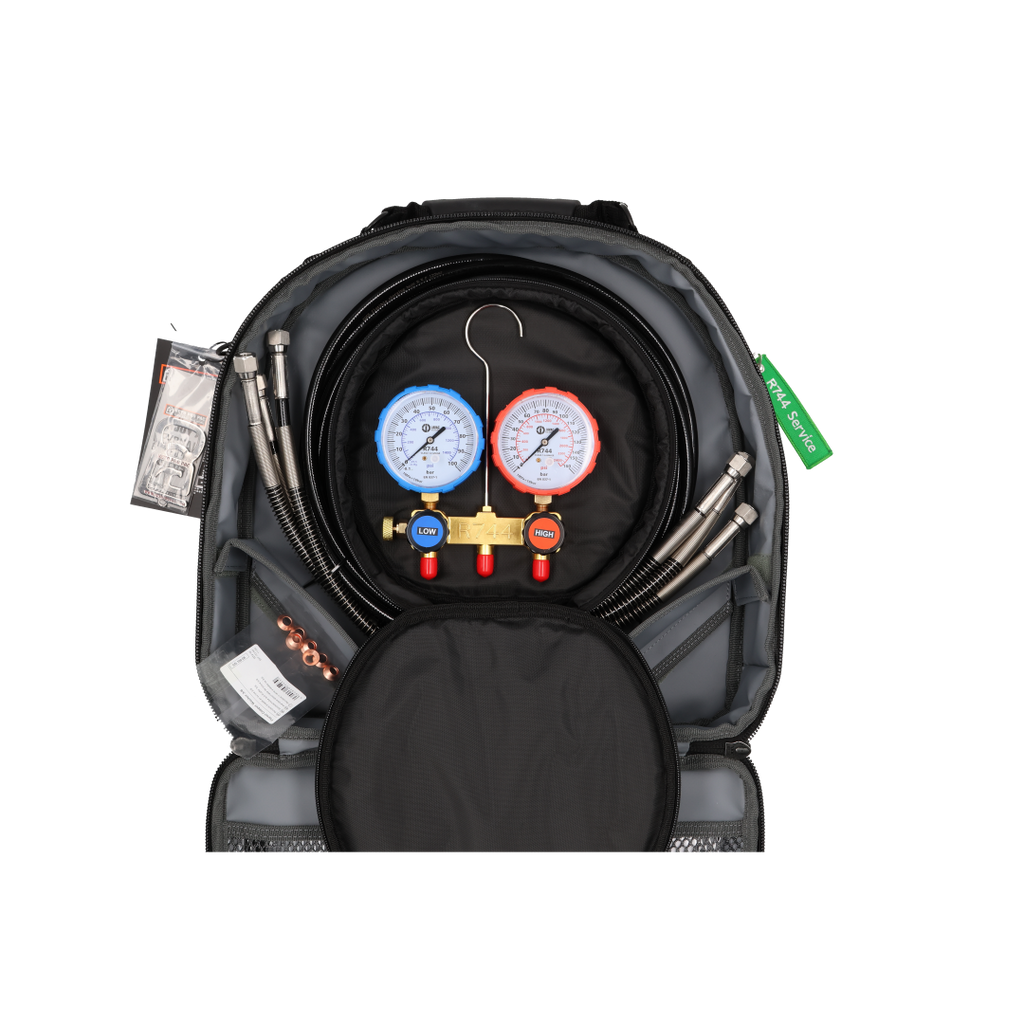

Javac JAV-1558 CO₂ Transcritical Service Manifold Kit with Steel Mesh Hoses & Veto Hose Hauler Bag

Javac JAV-1558 CO₂ Transcritical Service Manifold Kit

Specifically designed for use on modern CO₂ (R744) refrigeration systems, where higher operating pressures demand equipment you can rely on. Built around a durable two-valve manifold rated for high-side pressures up to 160 bar, this kit is suitable for both sub-critical and transcritical CO₂ applications. Supplied complete with steel mesh reinforced hoses and stored in a Veto Pro Pac Hose Hauler bag for professional on-site use.

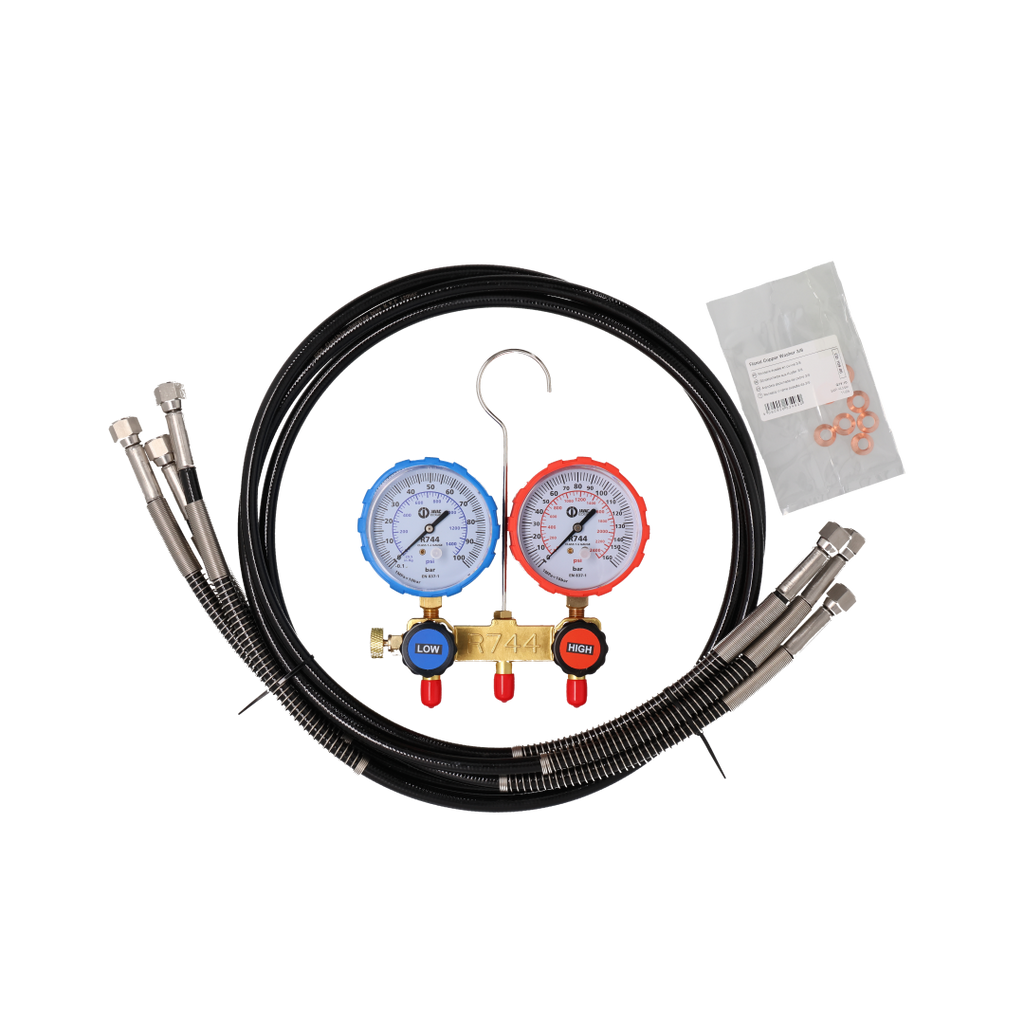

What's Included

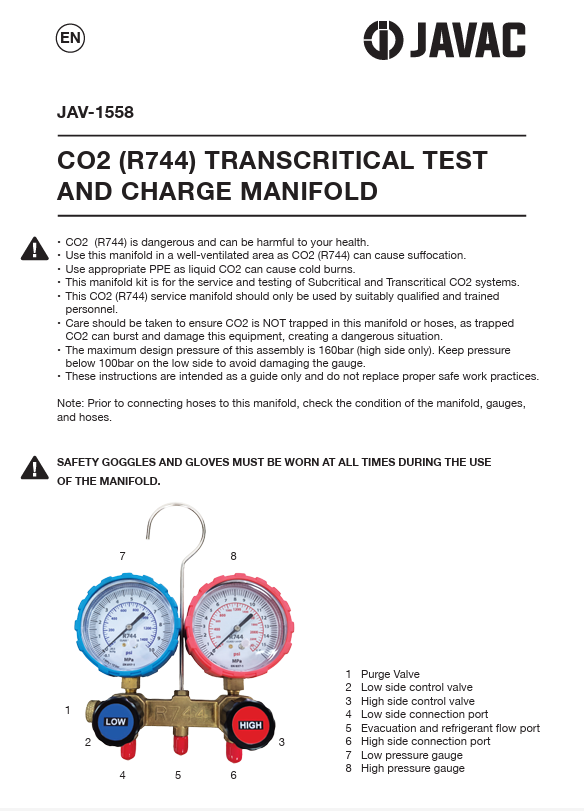

• 1× Javac Edge CO₂ Rated Service Manifold — two-valve manifold with bleed valve; low side 100 bar, high side 160 bar
• 3× Double Layer Steel Mesh Reinforced Hoses — rated for high-pressure CO₂ service; strength and security at transcritical pressures

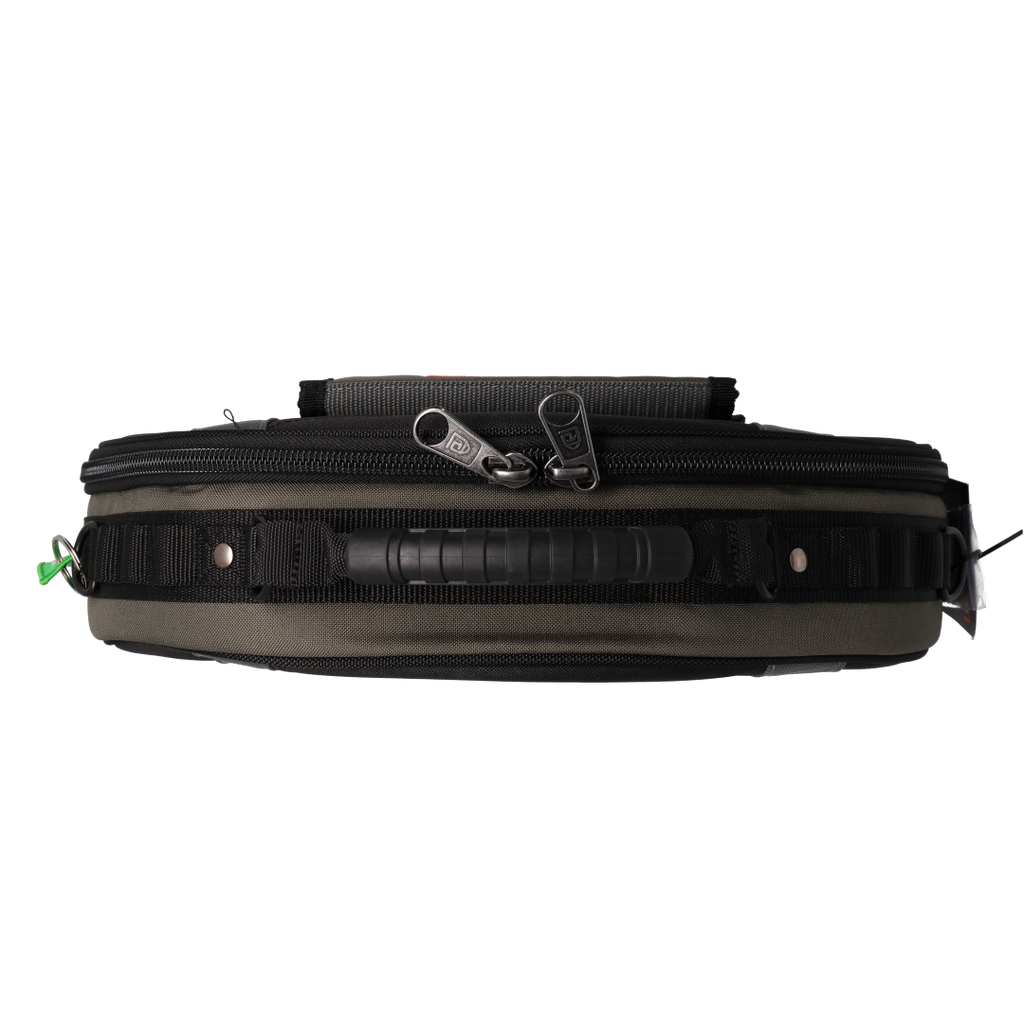

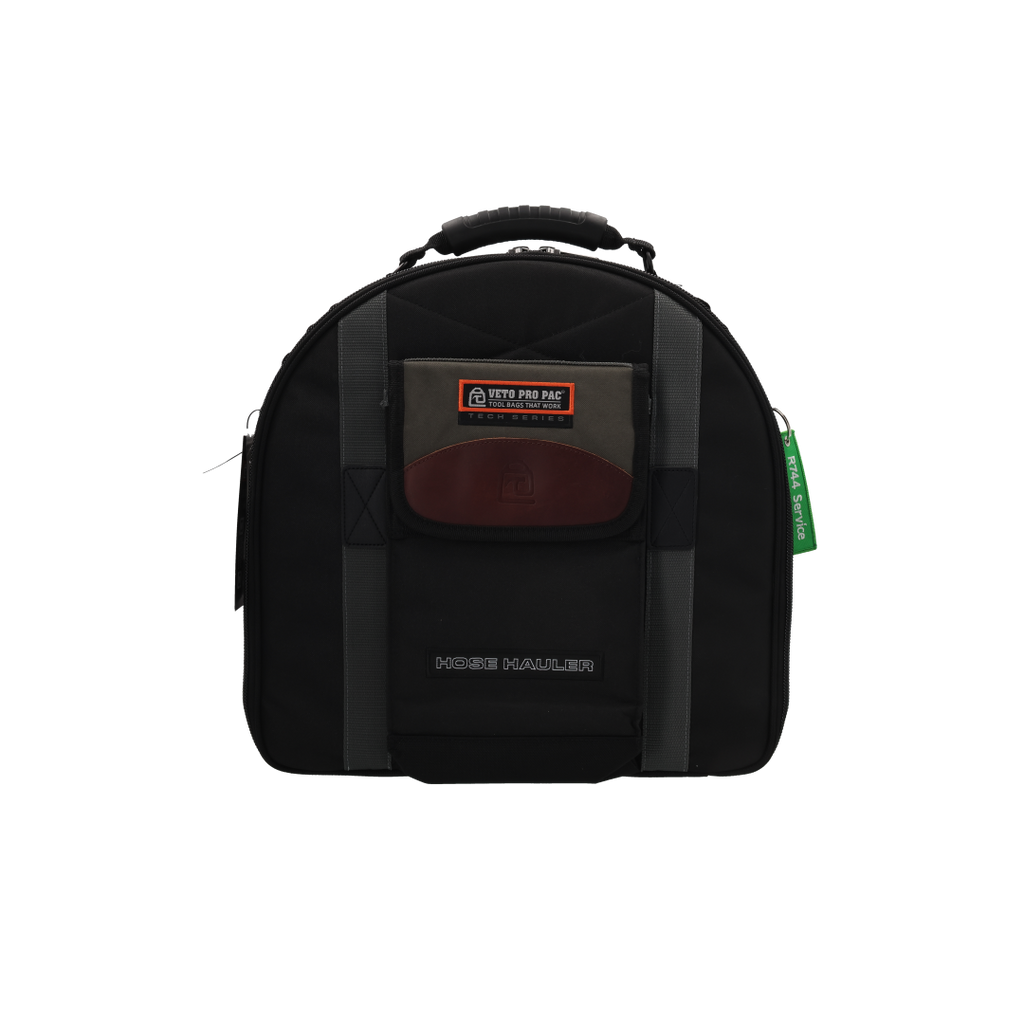

• 1× AX3685 Veto Pro Pac Hose Hauler Bag — professional HVAC-R tool bag with hose coil compartment, multiple pockets and removable parts bag
• 10× CD-109-06 Copper Sealing Washers — SKY part number 109-04; use new washers on every connection for leak-free service

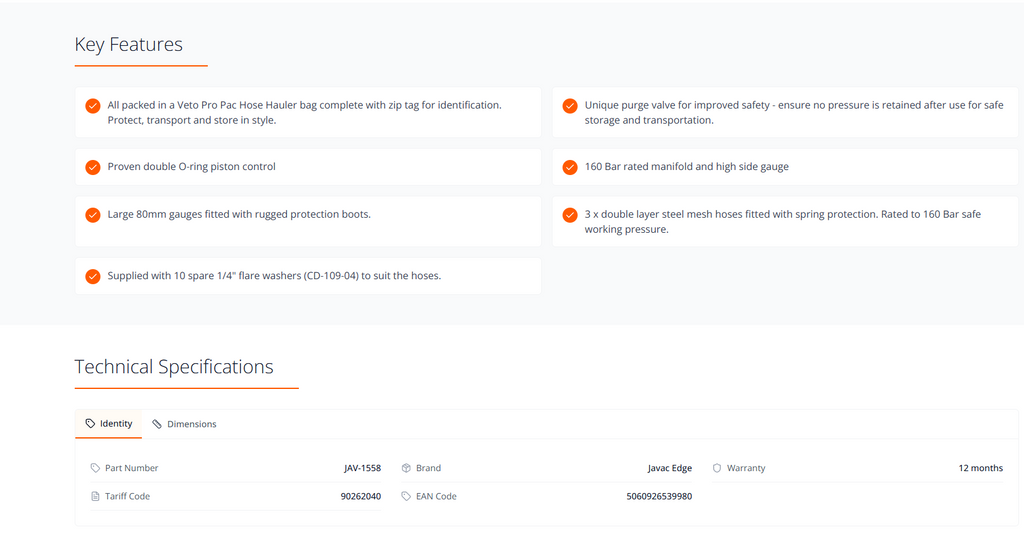

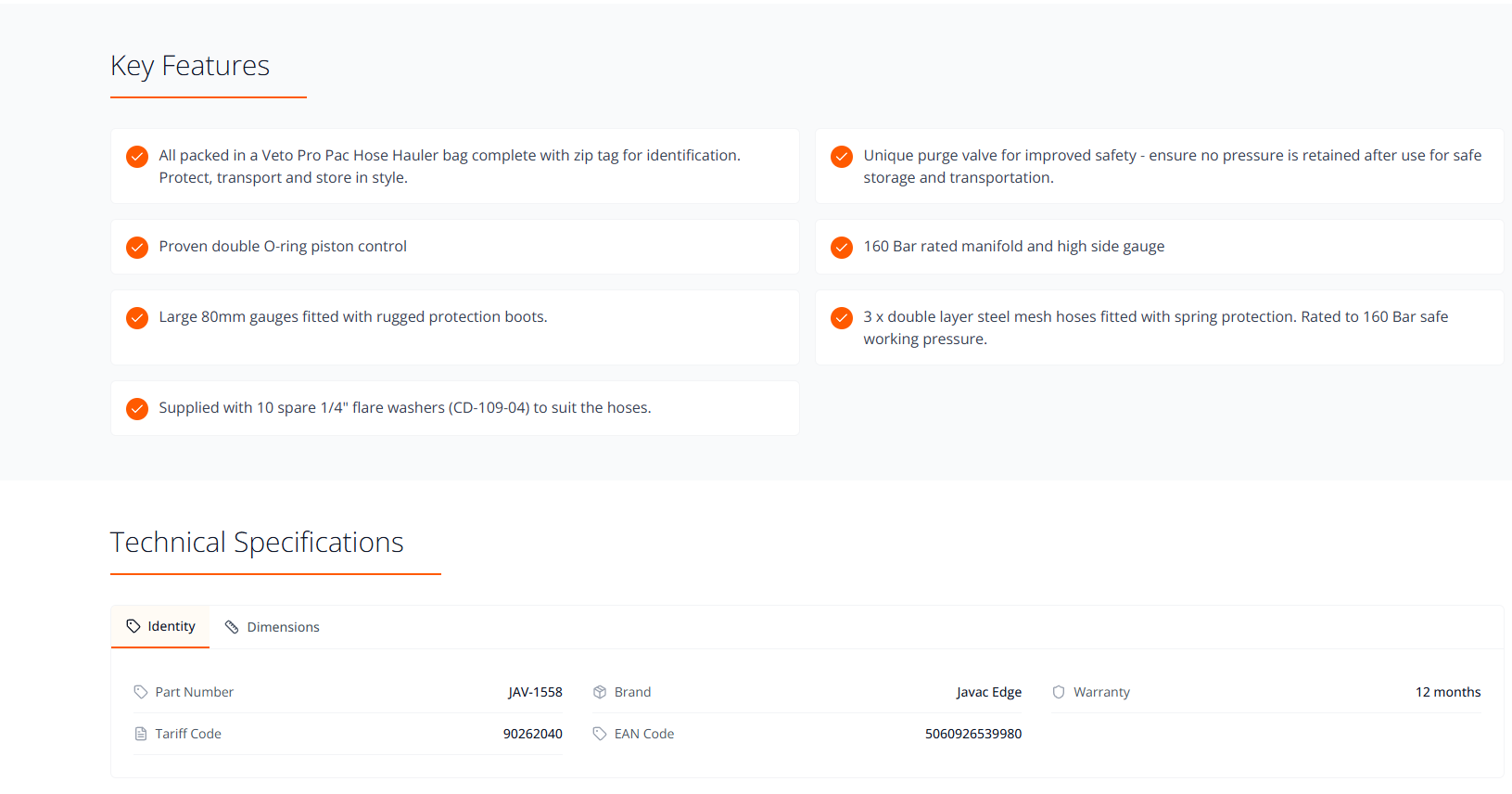

Key Features

• 160 Bar High Side Rating — suitable for transcritical CO₂ systems operating above the critical point
• 100 Bar Low Side Rating — covers all sub-critical and transcritical CO₂ operating pressures
• Integrated Bleed Valve — safely depressurise hoses after closing service valves and before disconnecting; prevents pressure build-up at ambient temperatures which could damage gauges
• Steel Mesh Reinforced Hoses — double layer construction for added strength and security at high pressures
• R744 Rated Throughout — manifold, hoses and fittings all rated for CO₂ service

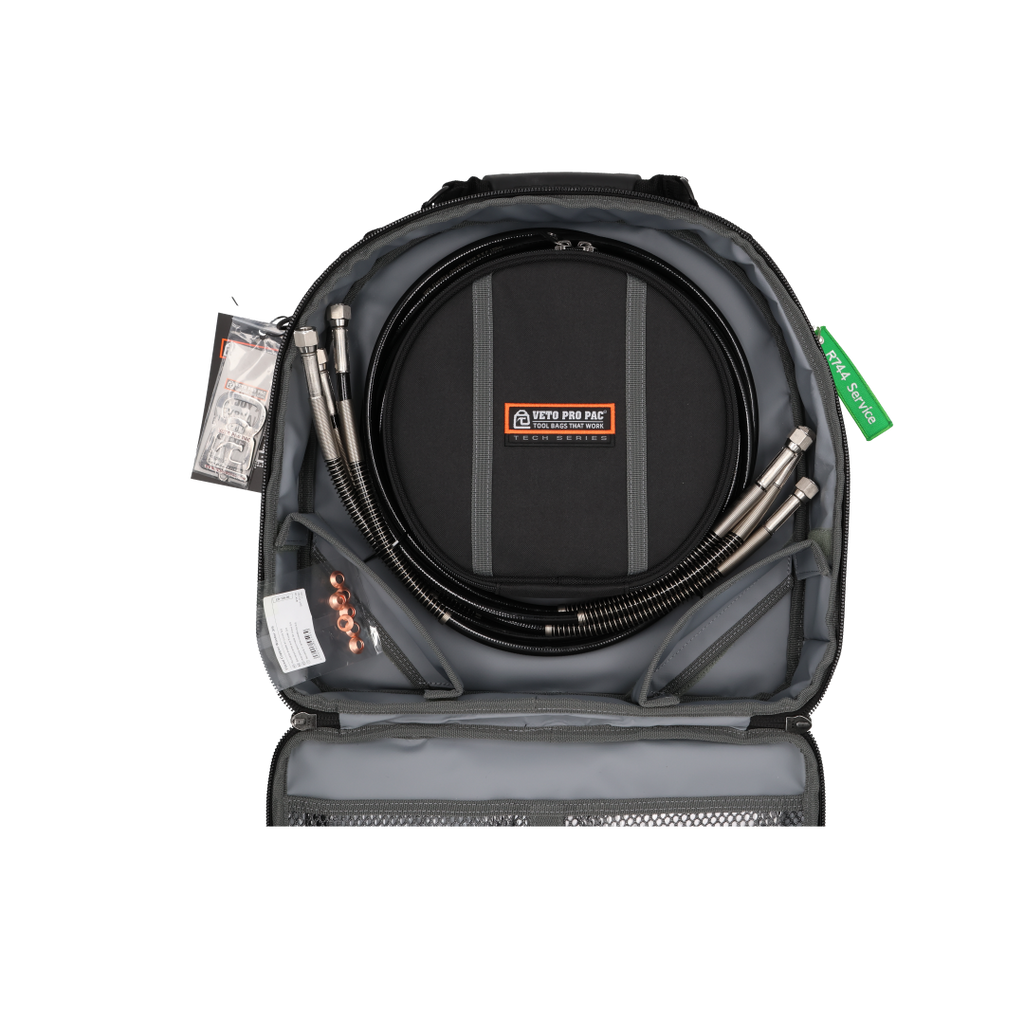

• Veto Pro Pac Hose Hauler — purpose-built HVAC-R bag keeps kit organised and protected on site

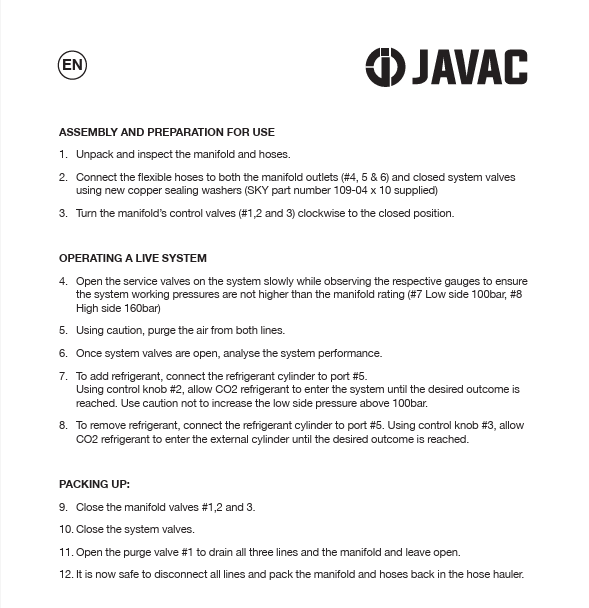

Assembly & Operating Notes

• Always connect hoses using new copper sealing washers (supplied) to ensure leak-free connections
• Turn all control valves clockwise to closed position before connecting to a live system
• Low side gauge (#7) max 100 bar — do not exceed when opening service valves
• High side gauge (#8) max 160 bar — monitor carefully on transcritical systems
• Use bleed valve (#1) to safely relieve trapped R744 before disconnecting hoses
• Always close the bleed valve before connecting to a system

Technical Specifications

• Part Number: JAV-1558
• Refrigerant: CO₂ / R744
• Low Side Max Pressure: 100 bar
• High Side Max Pressure: 160 bar
• Hose Construction: Double layer steel mesh reinforced
• Sealing Washers: Copper (10× supplied, SKY 109-04)
• Warranty: 12 months
