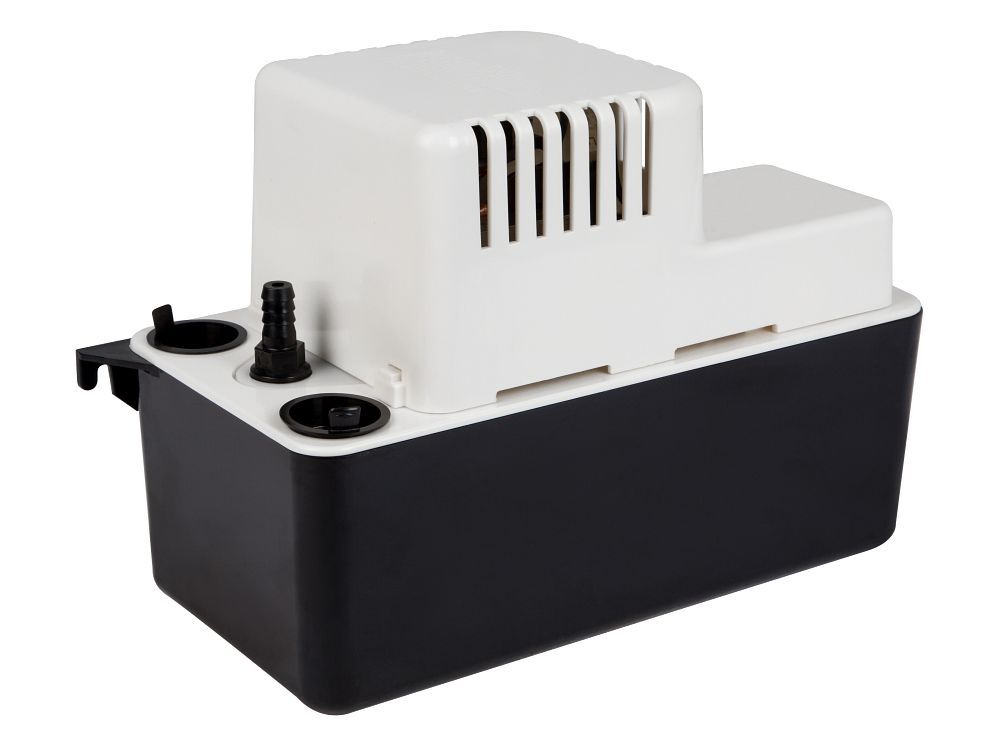

Little Giant VCMA-20S Condensate Removal Tank Pump – 554471
The Little Giant VCMA-20S is a reliable, self-contained condensate-removal tank pump designed for air-conditioning, refrigeration, and dehumidifier applications. Available in both 115V and 230V configurations, it delivers 80 GPH at 1ft head with a maximum shut-off head of 20ft (6.1m) on 115V or 17ft (5.2m) on 230V — making it a versatile choice for a wide range of installation scenarios.
Key Features
- Dual voltage available — 115V/60Hz and 230V/50-60Hz versions
- 80 GPH capacity at 1ft head — handles high condensate volumes
- Max shut-off head: 20ft (6.1m) at 115V | 17ft (5.2m) at 230V
- 3/8" barbed (9.5mm) discharge outlet — compatible with standard condensate hose
- Glass-filled polypropylene impeller — durable and chemical resistant
- Max liquid temperature: 140°F (60°C) — suitable for high-temp condensate applications
- Automatic float switch operation — activates when the tank fills, no manual intervention
- Built-in tank reservoir — no separate condensate tray required
Technical Specifications
| Parameter | Value |
|---|---|
| Model | VCMA-20S |
| Part Number | 554471 |
| Capacity | 80 GPH @ 1ft |
| Shut Off Head (115V) | 20ft (6.1m) |
| Shut Off Head (230V) | 17ft (5.2m) |
| Max Liquid Temp | 140°F (60°C) |
| Discharge | 3/8" barbed (9.5mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical (115V) | 115V, 60Hz, 1.5A |
| Electrical (230V) | 230V, 50/60Hz, 0.5A |
| Operation | Automatic float switch |
| Brand | Little Giant |
| Country of Origin | USA |

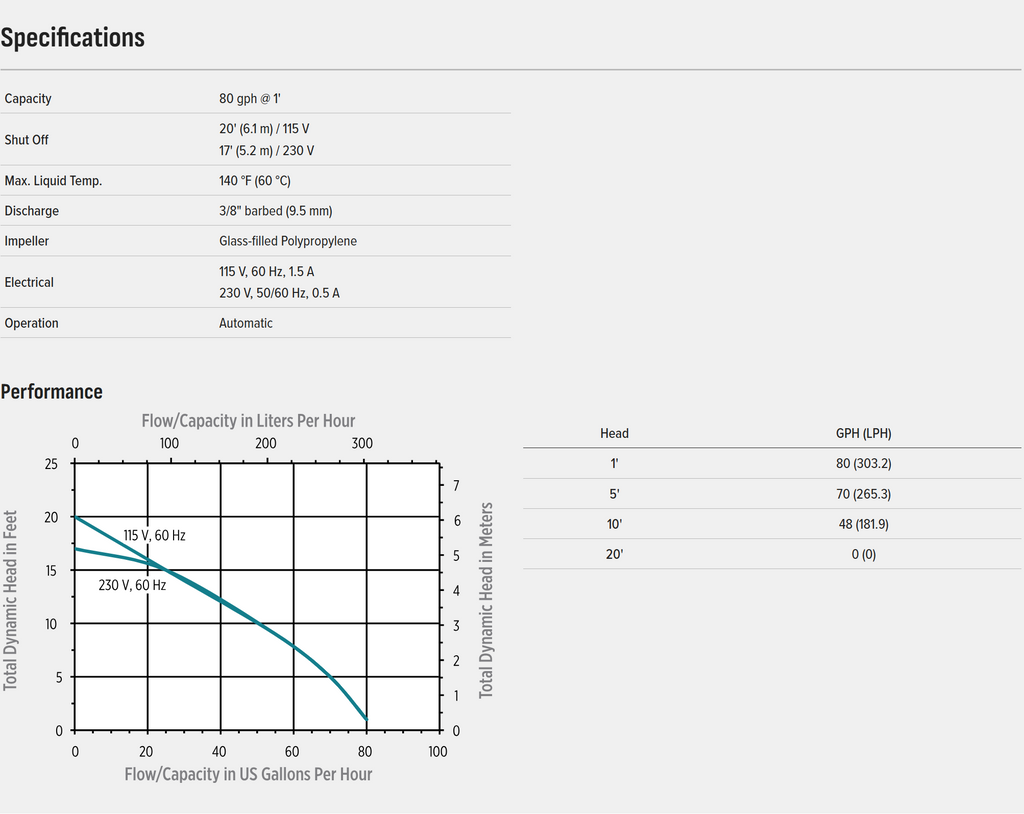

Performance at a Glance
| Head | Flow Rate |
|---|---|
| 1ft | 80 GPH (303 LPH) |
| 5ft | 70 GPH (265 LPH) |
| 10ft | 48 GPH (182 LPH) |
| 20ft | 0 GPH (shut-off) |
