Armacell Tubolit DuoSplit Pre-Insulated Twin Copper Pipe 1/4" & 1/2" | 25m Coil | DZC-061288/E25
- UK stock – fast dispatch
- Free UK Mainland Delivery over £100
- Expert technical support
- Trade accounts available
£225.31
Sale price
£225.31
Regular price
Shipping calculated at checkout.
REFcom Elite registered supplier
Achilles Silver accredited supplier
UK HVAC specialist since 2005
Fast UK dispatch
✓ Trade Pricing | ✓ Technical Support Available | ✓ Secure Checkout

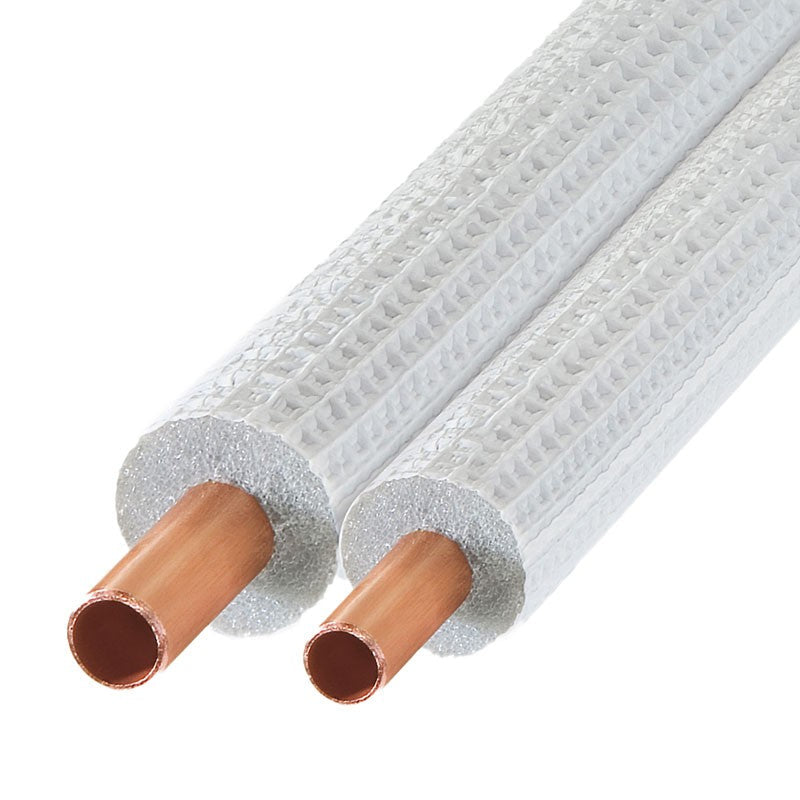

The Armacell Tubolit DuoSplit DZC-061288/E25 is a pre-insulated twin copper pipe system for connecting indoor and outdoor units on split, multi-split and heat pump air conditioning systems. Supplied as a 25m coil with 1/4" and 1/2" copper pipes pre-insulated from the factory, it eliminates the need for separate lagging on site and speeds up installation significantly.
Key Features
- 1/4" & 1/2" copper pipe sizes — standard mini split line set dimensions
- Pre-insulated from factory — no separate lagging required on site
- Patented join-split technology — easy separation at bends and connections
- Euroclass B fire rated — B(L)-s1,d0 to EN 13501-1
- UV resistant — Very Good rating (TB 142, EN ISO 4892-2)
- Service temperature range: -50°C to +100°C
- Thermal conductivity: λd < 0.036 W/(m·K) at 0°C
- Compatible with R-410A, R-407C and R32 refrigerants
- Copper to EN 12735-1 — soft-annealed, seamlessly drawn refrigeration grade
- No special tools required for installation
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DZC-061288/E25 |
| Pipe Sizes | 1/4" & 1/2" |
| Coil Length | 25m |
| Insulation Material | Closed-cell polyethylene foam |
| Outer Coating | Polyolefin-copolymer (UV resistant) |
| Copper Standard | EN 12735-1 |
| Fire Rating | B(L)-s1,d0 (Euroclass B) |
| Service Temperature | -50°C to +100°C |
| Thermal Conductivity | λd < 0.036 W/(m·K) at 0°C |
| UV Resistance | Very Good — TB 142 |
| Compatible Refrigerants | R-410A, R-407C, R32 |
| Colour | White |
| Dimensions Standard | EN 14313 |
Installation Notes
No special tools required. Matching accessories facilitate assembly. Insulation should remain uncut along the complete applied length and glued to the pipe at both ends. It is recommended that the insulation tube ends are additionally protected with tape. Certificate of Conformity with EN 12735-1 is available on request.
Tools Required for Installation
To cut, flare and connect the 1/4" and 1/2" copper pipes in this coil you will need:
- Javac Edge Medium Tube Cutter JAV-1013 — titanium blade, cuts 1/8"–1-5/8" OD, covers both pipe sizes in this coil
- Javac Tube Prep Kit — cutter, straightener and flaring/swaging kit in one — ideal for new installers
- Javac Edge 2-in-1 Flaring & Swaging Tool JAV-1023 — diamond cone, 6 tube sizes including 1/4" and 1/2"
- Javac JAV-275K Flaring & Swaging Kit 1/8"–3/4" — full kit with case, covers all common AC pipe sizes
- Javac Edge Flare Size Gauge JAV-1022 — verify flare quality on 1/4"–3/4" pipe before connection
- Flare Nut Kit — replacement flare nuts for 1/4" and 1/2" connections
