Little Giant VCL-45S Heavy-Duty Tank Condensate Pump | 1560 LPH | 10.5m Head

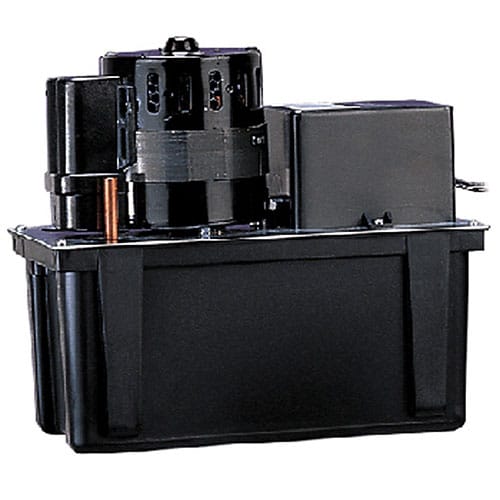

Little Giant VCL-45S Heavy-Duty Tank Condensate Pump

The Little Giant VCL-45S is a heavy-duty centrifugal tank condensate pump delivering the highest flow rate of 1560 LPH with a 10.5m maximum head. Built to move large quantities of condensate water fast, it's the go-to choice for cassette air conditioning, ducted systems, refrigeration, and de-humidifier applications.

Key Features & Benefits

• Maximum flow rate: 1560 LPH – highest in class for heavy-duty applications
• Maximum head: 10.5m – suitable for long or elevated discharge runs
• Trouble-free centrifugal pump – reliable, low-maintenance operation
• 3.8 litre tank capacity – handles high condensate volumes
• Copper outlet (3/8") – durable and corrosion-resistant
• High level alarm – 48V / 5A for system protection
• 2.2L drink cycle – efficient pump activation management
• Ideal for cassette A/C, ducted systems, refrigeration, and de-humidifiers

What's Included

• VCL-45S tank pump (3.8L)
• 3/8" copper outlet
• Installation instructions

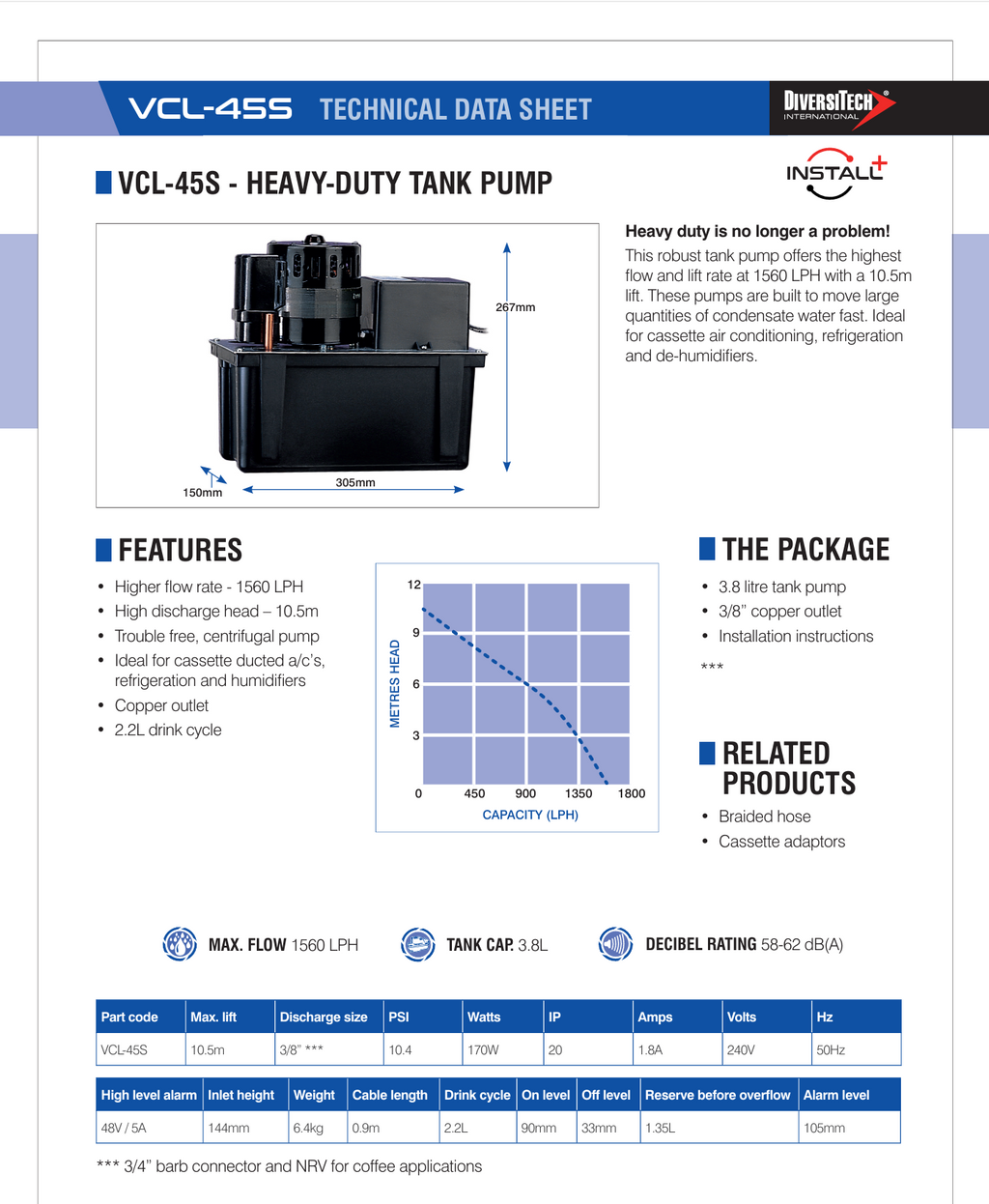

Specifications

• Part code: VCL-45S
• Max. flow: 1560 LPH
• Max. lift: 10.5m
• Discharge size: 3/8" (3/4" barb connector & NRV for coffee applications)
• Tank capacity: 3.8L
• Power: 240V / 50Hz
• Watts: 170W
• Amps: 1.8A
• IP rating: IP20
• High level alarm: 48V / 5A
• Inlet height: 144mm
• Cable length: 0.9m
• Drink cycle: 2.2L
• On level: 90mm | Off level: 33mm
• Reserve before overflow: 1.35L
• Alarm level: 105mm
• Noise level: 58–62 dB(A)
• Dimensions: 305mm x 150mm x 267mm
• Weight: 6.4kg
• Brand: Little Giant (distributed by Diversitech)

Ideal Applications

• Cassette air conditioning units
• Ducted A/C systems
• Commercial refrigeration
• De-humidifiers
• High-volume condensate removal
