Nitrogen Pressure Testing for HVAC Systems

Nitrogen pressure testing is a mandatory step in any professional HVAC or refrigeration installation. It confirms the integrity of the refrigeration circuit before evacuation begins — and identifying leaks at this stage is far less costly than discovering them after the system has been charged with refrigerant.

This guide covers the correct nitrogen pressure testing procedure for AC and refrigeration systems, including test pressures by refrigerant type, standing test duration, leak detection methods, and F-Gas compliance requirements.

Why Nitrogen Pressure Testing Is Non-Negotiable

Pressure testing with dry nitrogen (OFN — Oxygen Free Nitrogen) serves two critical functions in HVAC commissioning:

1. Leak verification — confirms the refrigeration circuit is sealed before refrigerant is introduced
2. System integrity — validates that pipework, fittings, and joints can withstand operating pressures

Skipping or shortcutting the pressure test is one of the most common causes of refrigerant loss, callback visits, and F-Gas compliance failures. A system that has not been pressure tested before charging cannot be considered professionally commissioned.

Under F-Gas regulations, engineers must be able to demonstrate that leak checks have been carried out before and after charging. A documented nitrogen pressure test is the foundation of that compliance record.

Equipment Required for Nitrogen Pressure Testing

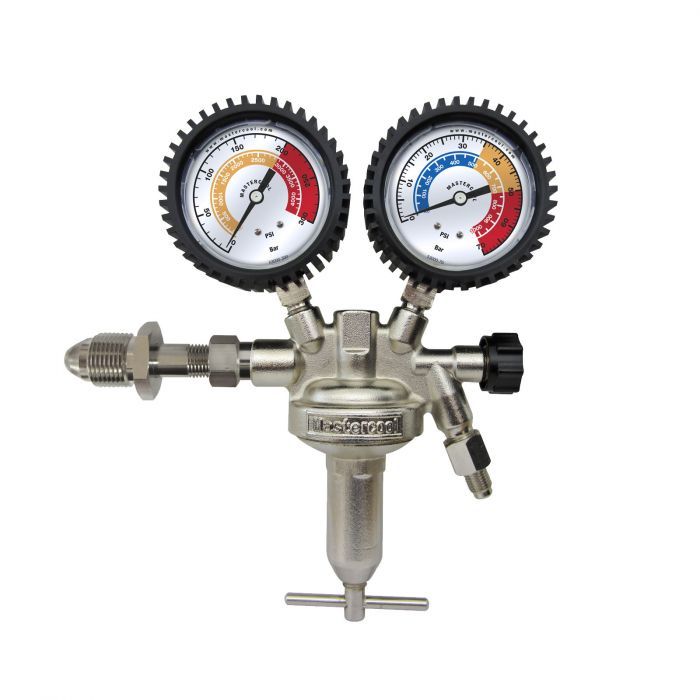

• Dry nitrogen cylinder (OFN)
• Nitrogen regulator with pressure gauge
• Flexible nitrogen charging hose
• Manifold gauge set — for monitoring system pressure
• Leak detection equipment — electronic detector or leak detection fluid
• Valve core removal tools — to improve flow during pressurisation

Never use compressed air or oxygen for pressure testing. Compressed air contains moisture that contaminates the refrigeration circuit. Oxygen in contact with refrigerant oil creates an explosive mixture. Dry nitrogen is the only safe and compliant option.

Nitrogen Pressure Test Pressures by Refrigerant

Important: Always refer to the equipment manufacturer's commissioning documentation for the specified test pressure. Never exceed the maximum allowable working pressure (MAWP) of any system component. The values above are common industry references — manufacturer specifications take precedence.

Step-by-Step Nitrogen Pressure Testing Procedure

Step 1 — Inspect the System Before Testing

Before pressurising, visually inspect all pipework joints, flare connections, brazed joints, and valve connections. Tighten any loose fittings. Confirm all service valves are in the correct position for the test configuration.

Step 2 — Connect the Nitrogen Equipment

Connect the nitrogen regulator to the cylinder and set the output pressure to the required test pressure for the system. Connect the nitrogen charging hose to the system via the service port. Do not pressurise yet.

If testing high and low sides separately, ensure the appropriate valves are closed to isolate each circuit section correctly.

Step 3 — Pressurise in Stages

Do not pressurise directly to full test pressure in a single step. Pressurise in stages — typically to 10 bar, then 20 bar, then full test pressure — pausing at each stage to check for audible leaks and monitor the pressure gauge for any immediate drop.

Staged pressurisation allows early identification of significant leaks before full test pressure is applied, reducing the risk of joint failure under sudden high pressure.

Step 4 — Check for Leaks at Full Pressure

Once at full test pressure, use leak detection equipment to check all joints, connections, and fittings systematically. Apply leak detection fluid to flare connections, brazed joints, valve stems, and Schrader ports.

Electronic leak detectors are more sensitive than leak detection fluid for small leaks — use both where possible on critical systems.

Step 5 — Perform a Standing Pressure Test

Once no leaks are identified, isolate the nitrogen supply and monitor the system pressure over the standing test period:

• Residential split systems: minimum 1 hour
• VRF and VRV systems: minimum 24 hours
• Commercial refrigeration: minimum 24 hours, often longer per manufacturer specification

Record the pressure at the start and end of the standing test. Allow for temperature stabilisation — ambient temperature changes cause minor pressure fluctuation that is not indicative of a leak. A genuine leak will show a consistent, progressive pressure drop independent of temperature.

Step 6 — Document the Test Results

Record the test pressure, test duration, start pressure, end pressure, ambient temperature, and engineer details. This documentation forms part of the F-Gas compliance record for the installation and must be retained.

Step 7 — Release Nitrogen and Proceed to Evacuation

Once the standing test is passed, release the nitrogen pressure slowly and proceed immediately to system evacuation. Do not leave a pressure-tested system open to atmosphere — moisture will re-enter the circuit.

Nitrogen Sweeping vs Nitrogen Pressure Testing

These are two distinct procedures that are often confused:

Nitrogen pressure testing — performed before evacuation to verify system integrity under pressure. The system is pressurised to test pressure and held for a standing period.

Nitrogen sweeping — performed after pressure testing and before deep evacuation. Low-pressure nitrogen is passed through the circuit to displace atmospheric moisture and contaminants. It is not a leak test.

Both procedures are part of a complete commissioning sequence. Pressure testing confirms integrity; nitrogen sweeping improves evacuation efficiency. Neither replaces the other.

Common Nitrogen Pressure Testing Mistakes

• Using compressed air instead of OFN — introduces moisture and creates an explosion risk with refrigerant oil. Never acceptable.
• Pressurising directly to full test pressure — risks joint failure and makes early leak identification harder. Always pressurise in stages.
• Skipping the standing test — a brief pressure check is not a standing test. Small leaks may not be immediately apparent without a sustained hold period.
• Not accounting for temperature variation — recording a pressure drop caused by ambient temperature change as a leak, or vice versa. Always note ambient temperature at start and end of test.
• Proceeding to evacuation without passing the pressure test — evacuating a leaking system wastes time, contaminates the vacuum pump, and draws atmospheric moisture into the circuit.
• No documentation — failing to record test results leaves the installation without an F-Gas compliance record.

F-Gas Compliance and Pressure Testing

Under UK F-Gas regulations, engineers working on systems containing fluorinated refrigerants must hold appropriate F-Gas certification and must carry out leak checks before and after charging.

A documented nitrogen pressure test is the standard method for demonstrating pre-charge leak verification. Without it, the installation cannot be considered compliant.

Key compliance points:

• Test must be performed with dry nitrogen — not refrigerant or compressed air
• Test pressure, duration, and results must be recorded
• Engineer certification details must be documented
• Records must be retained for the life of the equipment

Frequently Asked Questions

What pressure should I use for nitrogen pressure testing an AC system?

Test pressure depends on the refrigerant and system design pressure. For R410A and R32 systems, 40 bar (580 PSI) high side is standard. Always refer to the manufacturer's commissioning documentation and never exceed the MAWP of any system component.

How long should a nitrogen standing pressure test last?

A minimum of 1 hour for residential split systems. VRF, VRV, and commercial refrigeration systems typically require a 24-hour standing test. The pressure must remain stable throughout — any consistent drop indicates a leak.

Can I use refrigerant to pressure test an AC system?

No. Using refrigerant for pressure testing is illegal under F-Gas regulations and dangerous. Dry nitrogen (OFN) must always be used.

Why does nitrogen pressure drop during a standing test?

A consistent pressure drop indicates a leak. Minor fluctuation caused by ambient temperature change is normal — always record ambient temperature at the start and end of the test to distinguish temperature effect from genuine leakage.

Do I need to pressure test before evacuation?

Yes, always. Pressure testing must be completed and passed before evacuation begins. Evacuating a leaking system wastes time, contaminates the vacuum pump, and risks drawing atmospheric moisture into the circuit.
