Why Is My AC Remote Not Working Even With New Batteries?

Your AC remote has fresh batteries in it. You point it at the indoor unit. Nothing happens. This is one of the most common AC fault calls — and in most cases it is not the remote that is the problem.

This guide works through every cause systematically, from the simplest fixes to component-level faults, so you can diagnose and resolve the issue without unnecessary parts replacement.

Step 1: Test the IR signal with a smartphone camera

Before assuming anything is wrong with the remote, confirm it is actually transmitting. Point the remote at your smartphone camera (use the rear camera, not the selfie camera) and press any button while watching the screen.

If the remote is working, you will see a purple or white light flashing from the IR emitter tip. If you see nothing, the remote is either faulty or the batteries are not making proper contact.

This test takes 10 seconds and eliminates the remote as a variable before you investigate anything else.

Step 2: Check battery contact and polarity

Even new batteries can fail to make contact if:

• The battery terminals are corroded or dirty — clean with a dry cloth or fine sandpaper
• The batteries are inserted with incorrect polarity — check the +/- markings carefully
• The battery compartment spring contacts are flattened — gently lift them with a small screwdriver
• The batteries themselves are low-quality or have been stored incorrectly — try a different brand

Alkaline batteries are recommended. Rechargeable NiMH batteries run at 1.2V rather than 1.5V, which can cause marginal IR output on some remotes.

Step 3: Reset the remote

AC remotes can develop corrupted memory states that prevent normal operation. To reset:

1. Remove the batteries
2. Press and hold any button for 10 seconds to discharge residual power from the capacitors
3. Reinsert the batteries with correct polarity
4. Check the display shows a normal operating state (mode, temperature, fan speed)

Some remotes have a dedicated reset pinhole on the back or inside the battery compartment. Press this with a straightened paperclip for 3 seconds with batteries installed.

Step 4: Check for IR signal obstruction

The IR receiver on the indoor unit requires a clear line of sight to the remote. Common obstructions include:

• Furniture, curtains, or blinds partially blocking the unit front panel
• Decorative covers or filters fitted over the unit that block the receiver window
• Direct sunlight hitting the receiver — strong IR from sunlight can saturate the receiver and make it temporarily unresponsive
• Fluorescent or LED lighting with high IR output interfering with the signal

Try operating the remote from directly in front of the unit at close range (1–2 metres). If it works at close range but not from normal operating distance, the IR emitter is weak — likely a battery or remote fault.

Step 5: Clean the IR receiver on the indoor unit

The IR receiver lens on the indoor unit front panel accumulates dust, grease, and grime over time. A dirty receiver lens significantly reduces sensitivity.

With the unit powered off, gently clean the small dark receiver window on the front panel with a dry microfibre cloth. Do not use solvents or water. Power the unit back on and test.

Step 6: Check for pairing issues

Some AC systems use paired remotes — the remote is coded to a specific indoor unit. If the remote has been replaced or reset, it may need re-pairing. Refer to the installation manual for the pairing procedure, which typically involves:

1. Powering the indoor unit off at the isolator
2. Restoring power
3. Pressing a specific button combination on the remote within a set time window

Universal replacement remotes also require a code to be programmed for the specific brand and model.

Step 7: Suspect the indoor unit PCB or IR receiver module

If the remote is confirmed working (IR signal visible on camera), batteries are good, there is no obstruction, and the receiver is clean — the fault is in the indoor unit itself.

The IR receiver is a small 3-pin component mounted on the front panel PCB or on a separate receiver board. It can fail due to:

• Power surge or voltage spike
• Moisture ingress
• Age-related component failure

Diagnosis: most indoor units have a manual override button (usually a small button behind the front panel or on the PCB). If the unit responds to the manual override but not the remote, the IR receiver or main PCB is the fault.

In many cases the IR receiver module can be replaced independently of the main PCB — it is a low-cost component. If the main PCB has failed, a replacement board matched to the unit model is required.

See our range of AC maintenance products and HVAC tools for servicing equipment.

Step 8: Consider a replacement remote

If the remote has failed and the indoor unit PCB is confirmed working, a replacement remote is the most cost-effective solution. Options include:

• OEM replacement — exact match for the brand and model, guaranteed compatibility
• Universal remote — compatible with most major brands via code programming, lower cost

When ordering a replacement, note the brand, model number of the indoor unit, and if possible the part number printed on the original remote PCB.

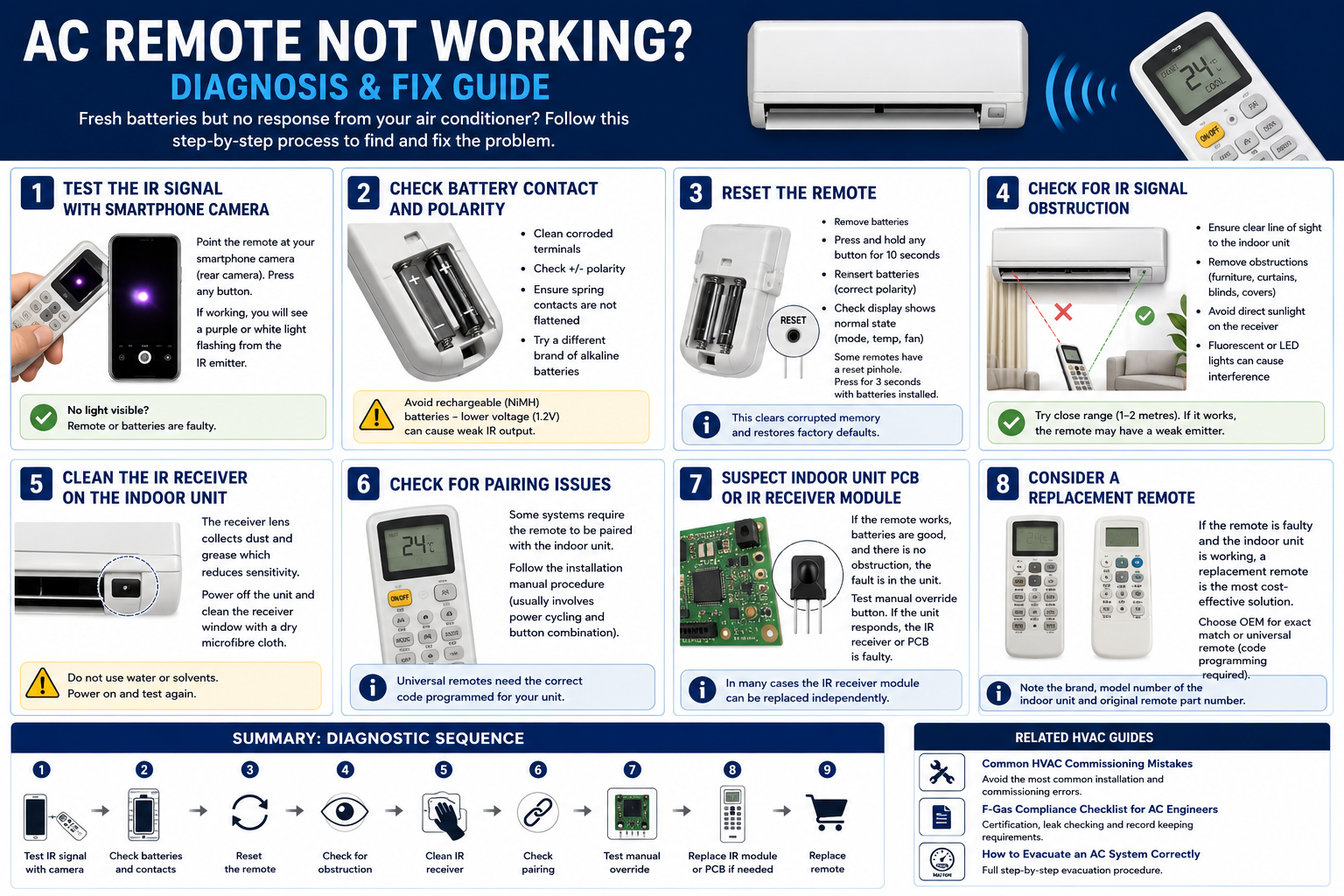

Summary: diagnostic sequence

1. Test IR signal with smartphone camera
2. Check battery contact, polarity, and quality
3. Reset the remote
4. Check for IR obstruction and direct sunlight
5. Clean the IR receiver lens on the indoor unit
6. Check pairing if applicable
7. Test manual override on indoor unit — if this works, fault is IR receiver or PCB
8. Replace IR receiver module or PCB as required
9. Replace remote if remote is confirmed faulty
