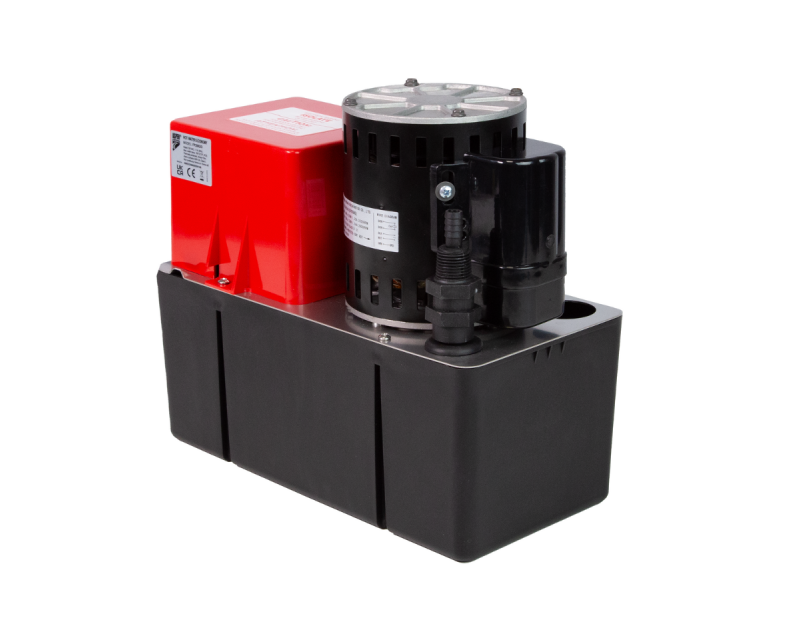

Aspen FP2092/3 High-Temp Condensate Pump 900 L/h Max Flow

Aspen FP2092/3 Hot Water Economy Condensate Tank Pump

The Aspen FP2092/3 Hot Water Economy is a high-performance condensate removal tank pump designed for demanding applications where water temperatures reach up to 100°C. With a maximum flow rate of 900 L/h and a maximum head of 6m, it handles high-volume condensate removal from humidifiers, refrigeration systems, and air handling units (AHUs) with ease.

Part of the Aspen Pumps Tank Pump range, the Hot Water Economy is supplied with a hard-wired 2m power cable and an installation manual — ready to install straight from the box.

Key Features & Benefits

• Rated to 100°C – handles the most demanding high-temperature condensate applications
• 900 L/h max flow – suitable for systems up to 1200kW / 4m Btu/h
• 6m max head (flow rate 280 L/h at max head)
• 4L tank capacity – large buffer for high condensate output systems
• 40mm inlet – large bore for high volume applications
• High level safety switch – 5.0A normally closed, for system shutdown on high water level
• Continuous rated – Class I appliance
• Low noise – 64dB(A) at 1m
• IP20 protection
• Supplied with hard-wired 2m power cable and install manual

What's in the Box

• Aspen Hot Water Economy pump (FP2092/3)
• Hard-wired 2m power cable
• Install manual

Suggested Accessories

• FP2007 – Rubber adaptor 3/4" (19mm) – 1-1/2" (38mm)
• FP2038 – Tube to soil stack adaptor
• AX5111 – Vinyl tube braided 3/8" (10mm)

Specifications

Ideal Applications

• Humidifiers – primary application
• Refrigeration condensate removal
• Air handling units (AHUs)
• Industrial and commercial high-temperature condensate systems up to 1200kW
