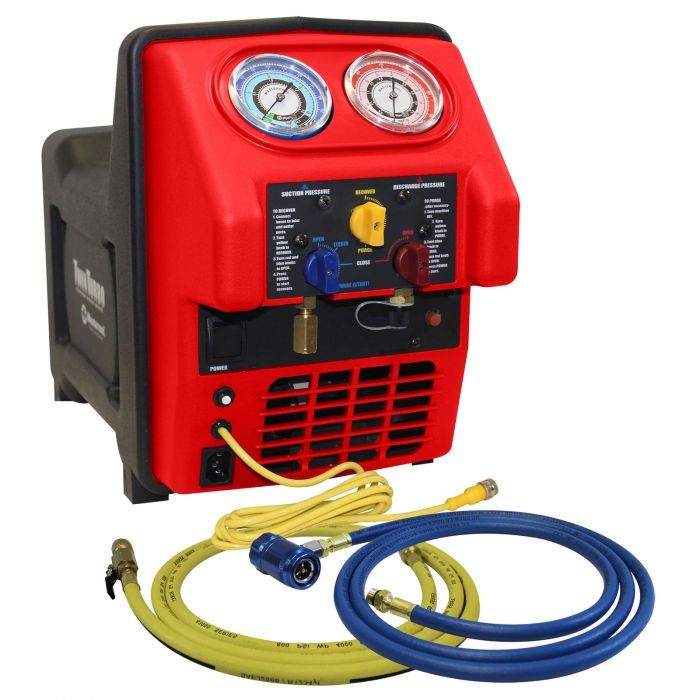

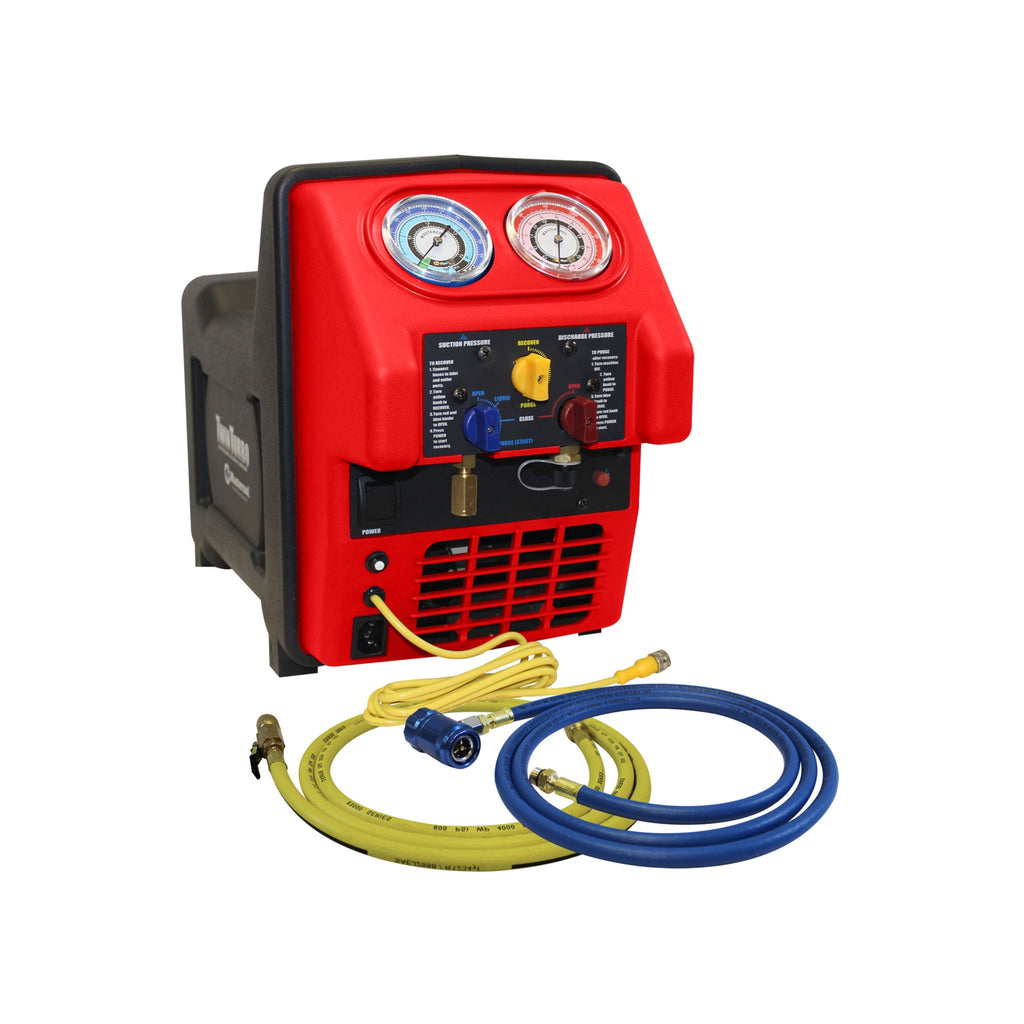

Mastercool 69390-220 Spark Free Twin Turbo Refrigerant Recovery Machine | R1234yf

Mastercool 69390-220 Spark Free Twin Turbo Refrigerant Recovery Machine for R1234yf

The Mastercool 69390-220 is a professional spark-free twin turbo refrigerant recovery machine designed specifically for contaminated mobile A/C systems using R1234yf. Approved for use with all A/C refrigerants including A2L and A3 flammable refrigerants, it meets all requirements of SAE J2851 as a contaminated recovery-only device.

Featuring a revolutionary double piston oil-less compressor and the largest volume recovery rate on the market, it's the go-to machine for automotive and HVAC engineers working with next-generation refrigerants.

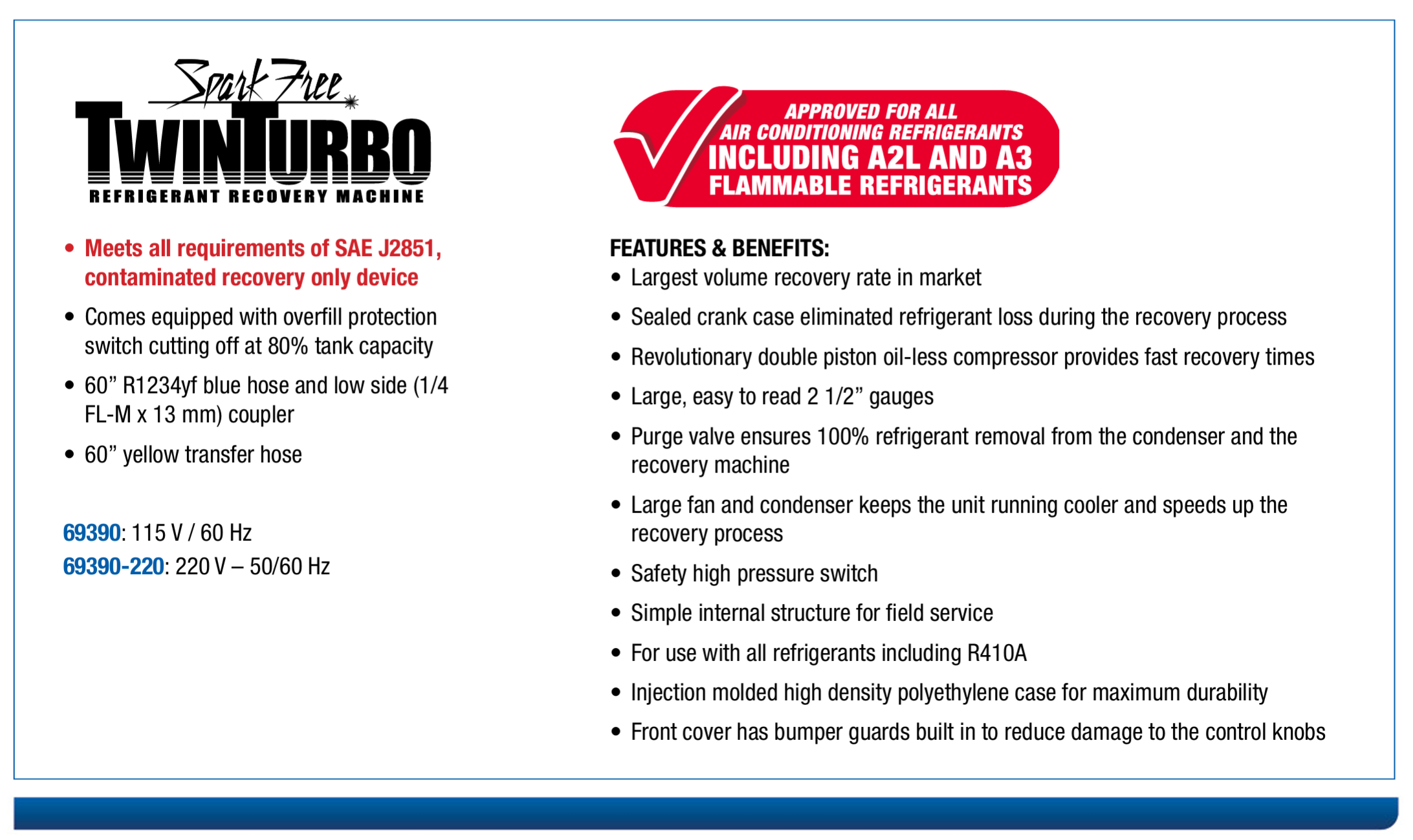

Key Features & Benefits

• Approved for all A/C refrigerants including A2L and A3 flammable refrigerants – R1234yf, R410A, all CFC, HCFC, and HFCs
• Spark-free design – safe for use with combustible gases
• Meets SAE J2851 – contaminated recovery only device
• Revolutionary double piston oil-less compressor – largest volume recovery rate in the market
• Sealed crank case – eliminates refrigerant loss during recovery
• Purge valve – ensures 100% refrigerant removal from condenser and machine
• Overfill protection switch – cuts off at 80% tank capacity

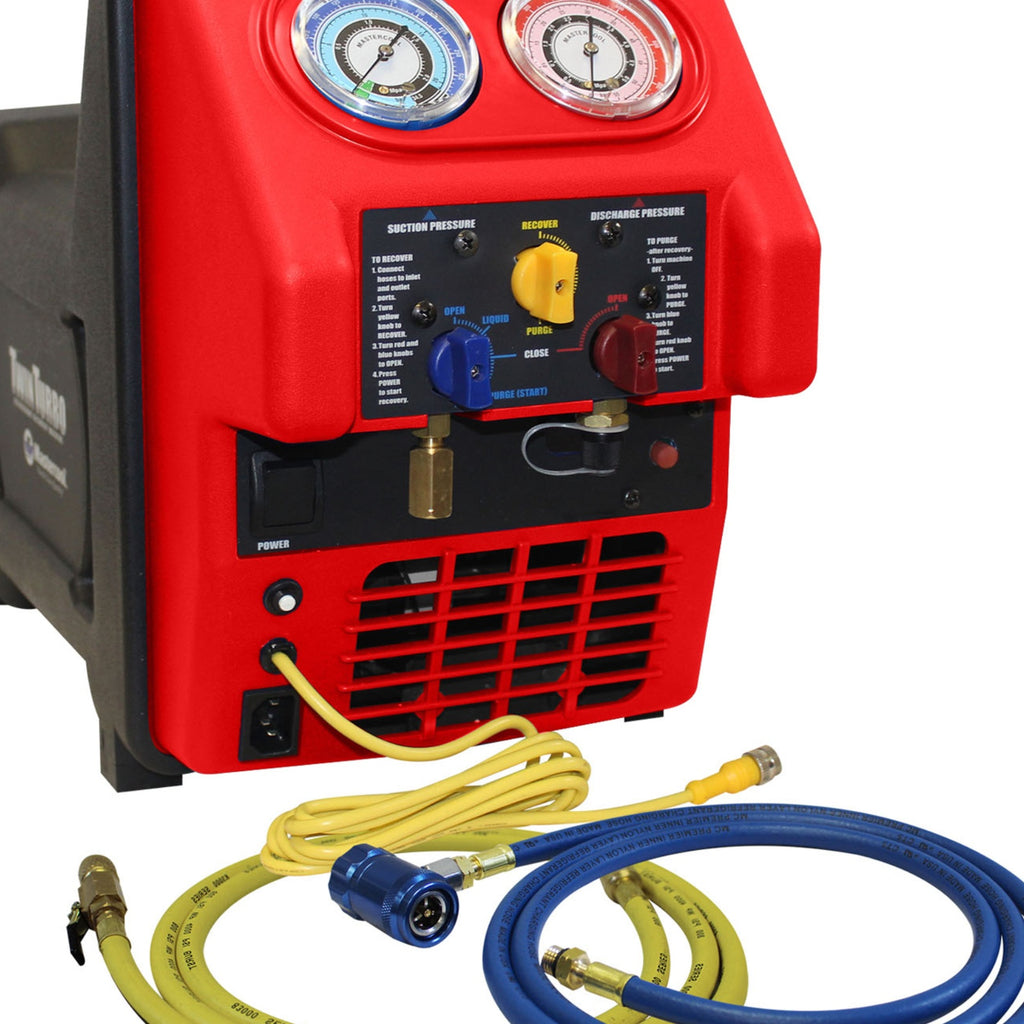

• Large 2-1/2" easy-read gauges – clear monitoring during recovery
• Large fan and condenser – keeps unit running cooler for faster recovery
• Safety high pressure switch – built-in protection
• Bumper guards on front cover – protects control knobs from damage
• Simple internal structure – designed for easy field service
• Injection moulded HDPE case – maximum durability on site

What's Included

• Mastercool 69390-220 recovery machine
• 60" R1234yf blue hose with low side coupler (1/4 FL-M x 13mm)
• 60" yellow transfer hose

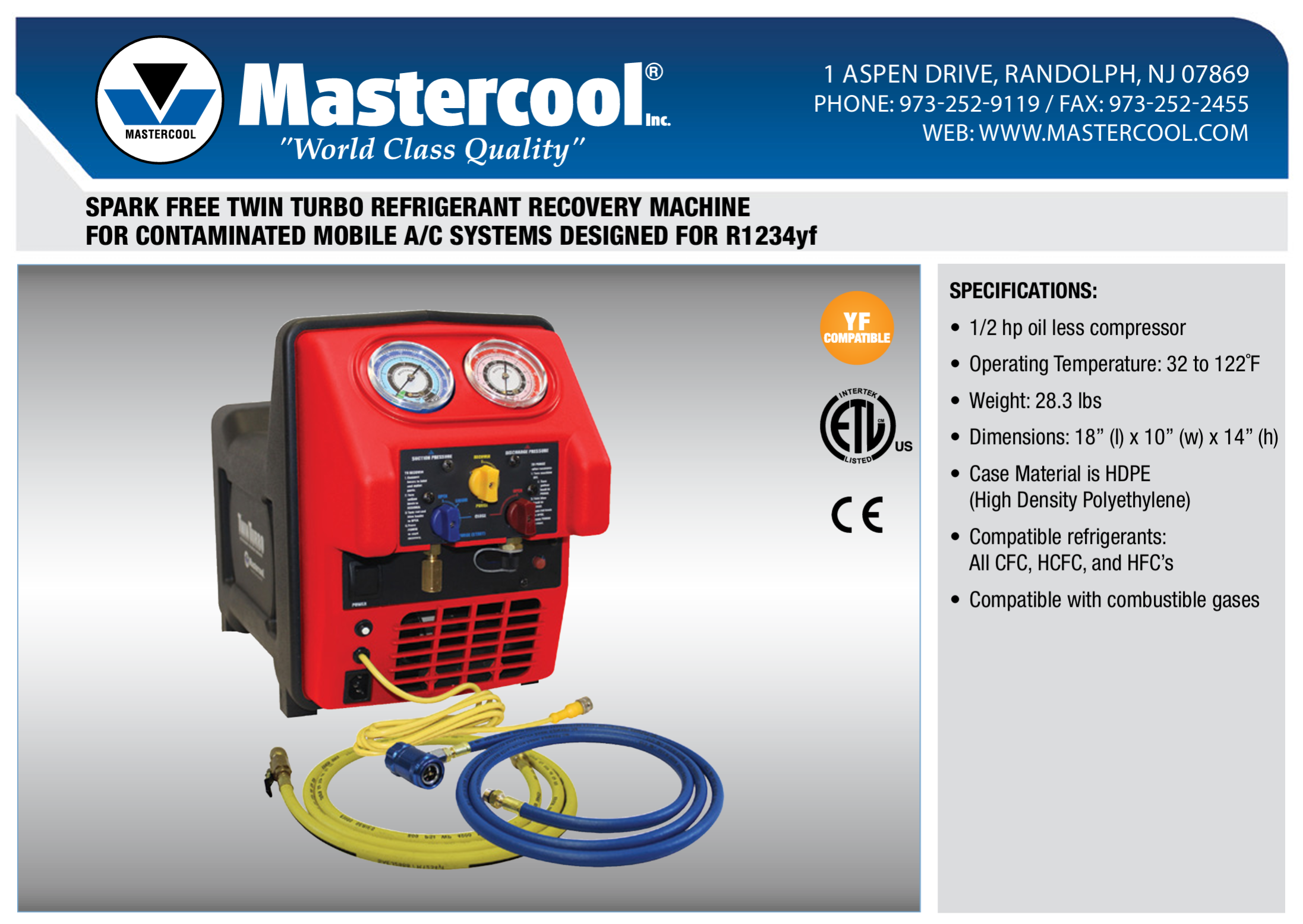

Specifications

• SKU: 69390-220
• Power: 220V – 50/60 Hz
• Compressor: 1/2 hp oil-less double piston
• Operating temperature: 32 to 122°F (0 to 50°C)
• Compatible refrigerants: R1234yf, R410A, all CFC, HCFC, HFC, A2L and A3 flammable refrigerants
• Case material: HDPE (High Density Polyethylene)
• Weight: 12.8kg (28.3 lbs)
• Dimensions: 457mm (l) x 254mm (w) x 356mm (h)
• Certifications: ETL listed, CE marked, SAE J2851
• Brand: Mastercool

Ideal Applications

• R1234yf contaminated mobile A/C system recovery
• Automotive air conditioning servicing
• HVAC/R refrigerant recovery
• Flammable refrigerant (A2L/A3) recovery applications
