Choosing the right condensate pump is essential for maintaining efficient and reliable performance in any air conditioning or HVAC system. The wrong pump — undersized, oversized, too noisy, or unsuitable for the installation — can lead to condensate overflow, water damage, nuisance shutdowns, and avoidable call-backs.

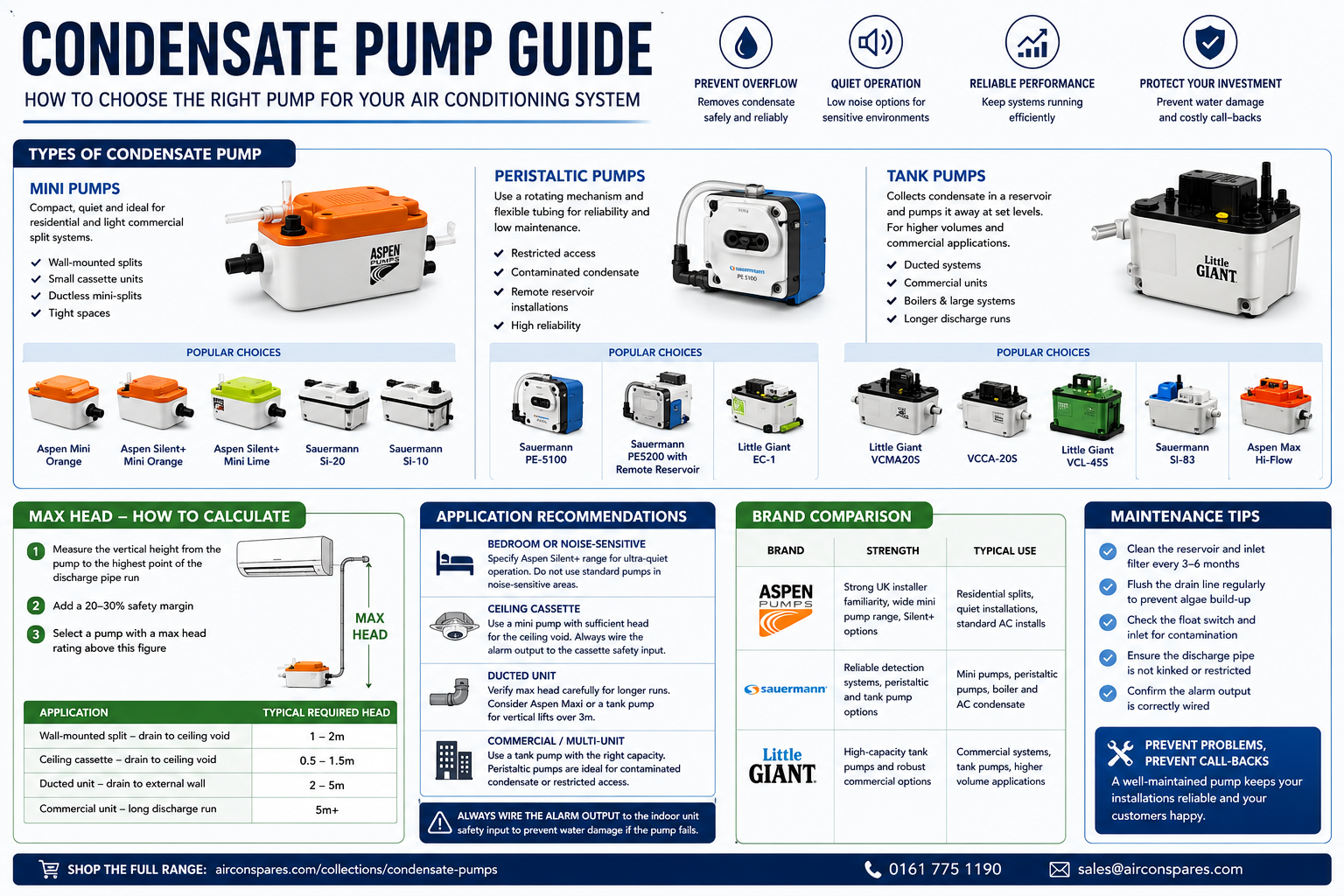

This guide explains how to select the right condensate pump based on application type, max head, flow rate, noise level, available space, maintenance access, and installation environment.
We stock a wide range of condensate pumps from leading HVAC brands including Aspen, Sauermann, and Little Giant. Browse our full condensate pump range or use this guide to narrow down the right option for your installation.
Types of Condensate Pump
Mini Condensate Pumps
Mini condensate pumps are compact, quiet, and designed for residential or light commercial air conditioning systems. They are most commonly used with wall-mounted split systems, small cassette units, and ductless mini-splits where gravity drainage is not possible.
Mini pumps are typically installed beside, behind, or inside trunking near the indoor unit. They are the default choice for many domestic and small office installations where space and appearance matter.
Best for:
- Wall-mounted split systems
- Small commercial indoor units
- Domestic bedrooms and living spaces
- Installations where the pump must be concealed
Key products:
- Aspen Mini Orange Condensate Pump — one of the most widely used mini pumps in the UK
- Aspen Silent+ Mini Orange Gen 5 — ultra-quiet operation for bedrooms and noise-sensitive environments
- Aspen Silent+ Mini Lime — compact silent pump for tight installations
- Sauermann Si-20 Mini Condensate Pump — suitable for air conditioning units up to 20kW
- Sauermann SI-10 Universal Quiet Condensate Pump — universal fit, quiet operation
Browse all mini condensate pumps.
Peristaltic Condensate Pumps
Peristaltic condensate pumps use a rotating mechanism to move condensate through flexible tubing. Because the moving parts do not sit directly in the condensate water path, they are reliable in installations where contamination, algae, or restricted access may be an issue.
They are commonly used in mini-split systems, cassette units, and applications where the pump needs to be mounted away from the detection reservoir.
Best for:
- Restricted maintenance access
- Contaminated condensate environments
- Remote reservoir installations
- Installations requiring reliable intermittent operation
Key products:
- Sauermann PE-5100 Peristaltic Condensate Pump — compact and reliable for mini-split applications
- Sauermann PE5200 with Remote Detection Reservoir — useful where the pump is not easily visible
- Little Giant EC-1 Mini Condensate Pump — high flow rate, suitable for mini-split systems up to 12kW
Browse all peristaltic condensate pumps.
Tank Condensate Pumps
Tank condensate pumps collect water in a reservoir and pump it away once the float switch reaches a set level. They are designed for higher condensate volumes and applications where a mini pump would cycle too frequently.
Tank pumps are typically used with larger split systems, cassette units, ducted systems, commercial air conditioning, boilers, and applications where more storage volume is required.
Best for:
- Ducted air conditioning systems
- Commercial indoor units
- Boilers and heating appliances
- Longer discharge runs
- Higher condensate volume applications
Key products:
- Little Giant VCMA20S Condensate Removal Tank Pump
- VCCA-20S Condensate Removal Pump for AC Systems
- Little Giant VCL-45S Heavy-Duty Tank Pump — 1560 LPH flow rate and 10.5m head for larger commercial applications
- Sauermann SI-83 2 Litre Condensate Tank Pump — suitable for boilers and AC systems
- Aspen Max Hi-Flow Condensate Tank Pump
Browse all tank condensate pumps.
How to Choose the Right Condensate Pump
- Application: Residential mini-split installations typically use a compact mini pump or peristaltic pump. Larger commercial, cassette, and ducted systems usually require a tank or reservoir pump.
- Space constraints: Mini and peristaltic pumps fit into tight spaces near the indoor unit. Tank pumps need more room and are usually installed separately.
- Noise level: For bedrooms, living rooms, hotels, and offices, specify a quiet model such as the Aspen Silent+ range or Sauermann SI-10.
- Condensate volume: Match the pump’s flow rate to the expected condensate output. Larger systems and humid environments produce more condensate.
- Lift height: Check the pump’s maximum head. The pump must be capable of lifting condensate above the highest point of the discharge pipe.
- Maintenance access: Choose a pump with accessible service points if the installation will require regular cleaning.
- Alarm output: Always wire the pump alarm output to the indoor unit safety input where available.
Max Head — How to Calculate What You Need
Max head is one of the most important specifications when selecting a condensate pump. It defines the maximum vertical height the pump can lift condensate from the pump to the highest point of the discharge pipework.
If the discharge point is higher than the pump’s max head rating, the pump will not clear condensate reliably. This can cause overflow, pump cycling, indoor unit shutdown, or water damage.
- Measure the vertical height from the pump to the highest point of the discharge pipe run
- Add a 20–30% safety margin
- Select a pump with a max head rating above this figure
| Application | Typical Required Head |
|---|---|
| Wall-mounted split — drain to ceiling void | 1–2m |
| Ceiling cassette — drain to ceiling void | 0.5–1.5m |
| Ducted unit — drain to external wall | 2–5m |
| Commercial unit — long discharge run | 5m+ |
Application Recommendations
Bedroom or noise-sensitive installation: Specify the Aspen Silent+ range or another low-noise pump. Do not use a standard mini pump where night-time noise will be noticeable.
Wall-mounted split system: Use a compact mini pump with enough head for the discharge route. Aspen Mini Orange, Aspen Mini Lime, and Sauermann SI-10 are common choices.
Ceiling cassette: Choose a mini pump or tank pump with sufficient head for the ceiling void. Always wire the alarm output to the cassette safety input.
Ducted unit: Verify max head carefully for longer discharge runs. Consider a larger Aspen Maxi pump or tank pump for vertical lifts over 3m.
Commercial or multi-unit collection: Use a tank pump with appropriate reservoir capacity and flow rate. For contaminated condensate or difficult access, consider a peristaltic pump.
Always wire the alarm output to the indoor unit’s safety input where available. This shuts down the unit if the pump fails or overflows, preventing water damage.
Brand Comparison: Aspen vs Sauermann vs Little Giant
| Brand | Strength | Typical Use |
|---|---|---|
| Aspen | Strong UK installer familiarity, wide mini pump range, Silent+ options | Residential split systems, quiet installations, standard AC installs |
| Sauermann | Reliable detection systems, peristaltic and tank pump options | Mini pumps, peristaltic pumps, boiler and AC condensate handling |
| Little Giant | High-capacity tank pumps and robust commercial options | Commercial systems, tank pumps, higher condensate volume applications |
Maintenance Tips
Condensate pumps require periodic maintenance to prevent blockages and ensure reliable operation. Clean the reservoir and inlet filter every 3–6 months, and flush the drain line regularly to prevent algae build-up.
Common maintenance issues include:
- Blocked inlet filters
- Algae build-up in drain hose
- Float switch contamination
- Kinked discharge pipe
- Incorrectly wired alarm output
- Pump installed above its rated head limit
For broader installation and commissioning issues, see our guide to common HVAC commissioning mistakes.
Need help choosing the right pump for your installation? Contact our team at sales@airconspares.com or call 0161 775 1190 for expert advice.
Related HVAC Installation Guides
- VRF/VRV System Commissioning Guide — commissioning procedure for multi-indoor unit systems
- F-Gas Compliance Checklist for AC Engineers — certification, leak checking, and record keeping
- Common HVAC Commissioning Mistakes — installation and commissioning errors to avoid
- How to Evacuate an AC System Correctly — full commissioning procedure
Frequently Asked Questions
Which condensate pump do I need for a wall-mounted split system?
For most residential wall-mounted split systems, an Aspen Mini or equivalent mini condensate pump is the standard specification. Always verify the max head rating against the height of your discharge point and add a 20–30% safety margin.
What is max head and why does it matter?
Max head is the maximum vertical height the pump can lift condensate. If your discharge point is higher than the pump’s max head rating, the pump will not clear condensate reliably and may overflow.
Which condensate pump is quietest?
The Aspen Silent+ range is one of the most widely specified ultra-quiet condensate pump ranges in the UK. Always check the manufacturer’s dB(A) rating for bedrooms, hotels, offices, and other noise-sensitive installations.
Do I need to wire the alarm output?
Yes. Always wire the condensate pump alarm output to the indoor unit’s safety input where available. This shuts down the unit if the pump fails or overflows, helping prevent water damage.
What is a peristaltic condensate pump and when should I use one?
A peristaltic condensate pump uses a rotating mechanism with no impeller directly in contact with the liquid. It is useful for contaminated condensate, restricted maintenance access, and installations where reliability is critical.
