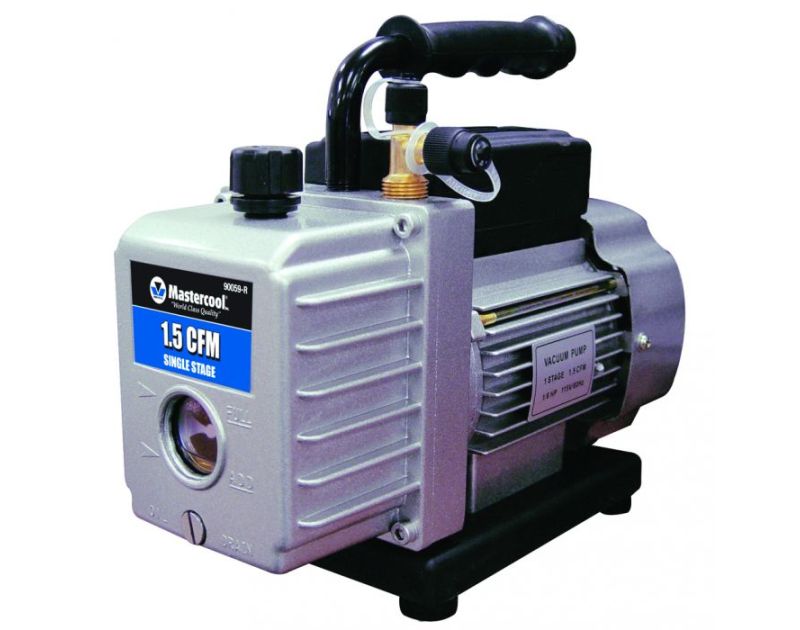

Mastercool Vacuum Pump Air Conditioning 42 litre per Min Single Stage 1.5 CFM

£216.92 £180.77

Mastercool 90059-220B Air Conditioning Vacuum Pump 42 litre per Min Single Stage 1.5 CFM

A good quality vacuum pump is an integral tool for complete a/c service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, mastercool has a model for your application.


  • High efficiency one stage 42 lit/min pump
  • Easy access oil fill port
  • Ultimate vacuum: 75 microns 1/6 hp 220 volt motor
  • Weight: 7.25 kg
  • Internal check valve on pump access fitting prevents oil blowout
  • Oil capacity: 177 ml

Technical Details:

  • High volume fan provides cool air motor and pump
  • Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
  • Non-slip cushion handle
  • Includes T-fitting with 1/4″ flare and 1/2″ acme ports
  • Cooling fins to keep temperature cooler during extended motor operation
  • Manifold valve isolates pump from the system testing for leaks
  • No. of Stages: 1
  • Free Air Displacement: 35 lit/min, 42 lit/min 1.5 CFM
  • Ultimate Vacuum: 75 Microns
  • Pump Motor: 1/6 HP
  • Pump Speed: 2850/3450 RPM
  • Electrical Specs: 220 V/50 Hz, 220 V/60 Hz
  • Shipping Weight: 16 lbs (7.25 kg)
  • Dimensions in cm: 29.5 x 11.5 x 21.5 x 18
  • Supplied With European 2 Pin Plug

Important!: use oil specifically refined for deep vacuum pumps. Use of oil not refined for deep vacuum pumps and/or operating with contaminated oil will void warranty.In order to make the best use of your investment, familiarize yourself with the new features and operating instructions before starting vac pump. Routine care and maintenance of your vacuum pump will give you years of reliable service.Each vacuum pump has been factory tested for cfm and micron performance. The serial number has been recorded. Complete and mail the warranty form immediately to validate your warranty.

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

This vacuum pump has been tested at the factory and shipped with only trace amounts of oil.

Oil must be added before operating.

Failure to add oil will damage cartridge and void warranty.
