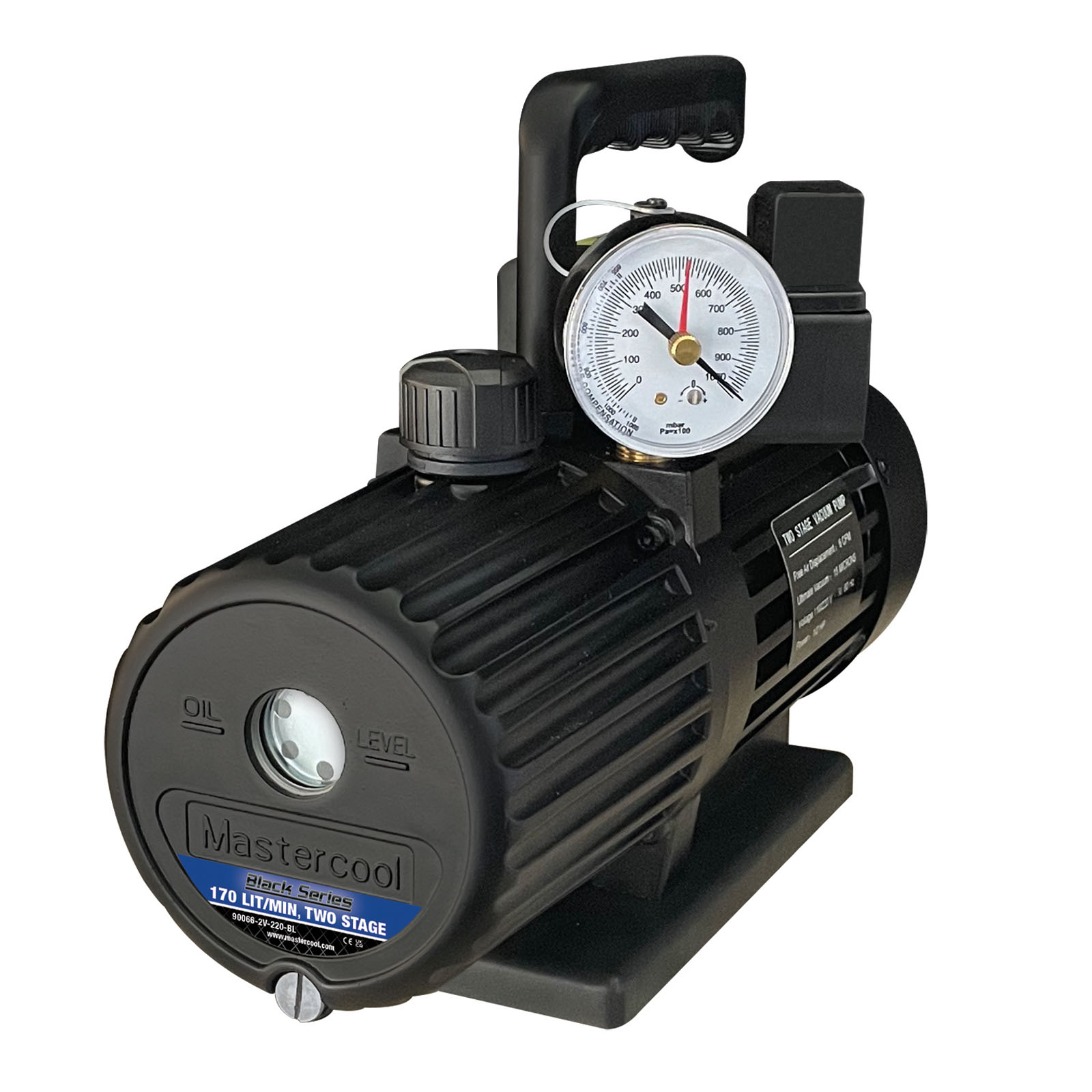

Selecting the correct vacuum pump is one of the most consequential equipment decisions an HVAC engineer makes. An undersized or poorly maintained pump cannot achieve the vacuum depth required for professional commissioning — and the consequences show up months later as compressor failures, acid contamination, and system callbacks.
This guide covers how to select the correct vacuum pump for AC and refrigeration work, including CFM sizing by system type, two-stage vs single-stage performance, oil maintenance, and what to look for when comparing pump specifications.
Two-Stage vs Single-Stage Vacuum Pumps
For professional HVAC and refrigeration commissioning, a two-stage vacuum pump is the only appropriate choice. Here is why:
Single-stage pumps use one compression stage and typically achieve an ultimate vacuum of 75–150 microns at the pump inlet. While adequate for some light applications, they cannot reliably achieve the sub-500 micron system targets required for professional AC commissioning — particularly once hose losses and system volume are accounted for.
Two-stage pumps use two compression stages in series, achieving ultimate vacuum levels below 20 microns at the pump inlet. This headroom is essential — it ensures the pump can pull the system well below target even accounting for hose restrictions, moisture outgassing, and system volume.
All professional HVAC commissioning work should use a two-stage vacuum pump. Single-stage pumps are not suitable for refrigeration system evacuation.
How to Size a Vacuum Pump by CFM
CFM (cubic feet per minute) is the primary sizing parameter for vacuum pump selection. It determines how quickly the pump can remove gas from the system — directly affecting pull-down time to target micron levels.
| System Type | Recommended Pump CFM |
|---|---|
| Small split systems (up to 5kW) | 3–5 CFM |
| Residential split systems | 5–8 CFM |
| Large split / light commercial | 8–12 CFM |
| VRF / VRV systems | 12 CFM+ |
| Commercial refrigeration | 12 CFM+ (often multiple pumps) |
CFM rating alone does not tell the full story. A high-CFM pump with contaminated oil or worn seals will underperform a well-maintained lower-CFM pump. Pump condition and oil quality are as important as the rated specification.
Key Specifications to Compare
When selecting a vacuum pump for HVAC work, evaluate the following:
Ultimate vacuum (microns) — the deepest vacuum the pump can achieve at its inlet under ideal conditions. Look for below 20 microns for professional two-stage pumps. This is the headroom that ensures reliable system pull-down.
CFM rating — determines pull-down speed. Match to system volume as per the table above.
Oil sight glass — essential for monitoring oil condition during and after evacuation. Avoid pumps without a visible oil level indicator.
Oil drain and fill design — pumps that are easy to drain and refill encourage regular oil changes, which directly affects performance. A difficult oil change procedure leads to contaminated oil being left in service too long.
Inlet port size — larger inlet ports reduce restriction and improve pull-down speed when using large-bore vacuum hoses. 1/4" flare inlets are standard; some higher-capacity pumps offer larger connections.
Continuous duty rating — confirms the pump is designed for sustained operation during long pull-downs on large systems.
Vacuum Pump Oil — The Most Overlooked Factor
Contaminated vacuum pump oil is the single most common cause of poor evacuation performance on site. An engineer with a quality pump and dirty oil will consistently underperform an engineer with a modest pump and clean oil.
Oil becomes contaminated by:
- Moisture absorbed during evacuation
- Refrigerant vapour drawn back through the pump
- Particulate contamination from dirty systems
- Oxidation from extended use without oil changes
Contaminated oil appears dark brown or milky. Fresh vacuum pump oil is clear or very pale yellow. If the oil in your pump is discoloured, change it before the next job.
Oil change intervals:
- After every major evacuation (VRF, commercial refrigeration, burnout repairs)
- Every 3–4 residential jobs as a minimum
- Before commissioning any critical system
- Immediately if the oil appears dark or milky
Always use vacuum pump oil specified for refrigeration use. General-purpose oils are not formulated to handle refrigerant vapour and moisture absorption in the same way.
Connecting the Pump Correctly
Pump selection is only part of the equation. How the pump is connected to the system directly affects achievable vacuum depth and pull-down speed.
- Use large-bore vacuum hoses — standard 1/4" charging hoses create significant flow restriction. Dedicated vacuum hoses with larger internal diameter reduce pull-down time substantially on larger systems.
- Remove Schrader cores — use core removal tools to eliminate valve restriction during evacuation. This is one of the highest-impact changes an engineer can make to evacuation speed.
- Connect the micron gauge at the system — not at the pump. The pump may be pulling deep vacuum while the system remains at a higher pressure due to hose restrictions.
- Minimise hose length — longer hoses increase volume and restriction. Use the shortest practical hose run between pump and system.
When to Replace a Vacuum Pump
A vacuum pump that cannot achieve its rated ultimate vacuum — even with fresh oil and clean connections — has worn internal components and should be serviced or replaced. Signs of a failing pump include:
- Unable to pull below 500 microns at the pump inlet with fresh oil
- Excessive oil consumption
- Unusual noise during operation
- Oil discolouration immediately after an oil change
- Visible oil mist from the exhaust port
A pump that cannot achieve its rated specification is a liability on every commissioning job it is used on.
Frequently Asked Questions
What size vacuum pump do I need for a split AC system?
For most residential split systems, a two-stage pump rated between 5 CFM and 8 CFM is appropriate. Larger VRF and commercial systems benefit from 12 CFM or above.
What is the difference between a single-stage and two-stage vacuum pump?
A two-stage pump achieves significantly deeper ultimate vacuum — typically below 20 microns at the pump inlet — compared to 75–150 microns for a single-stage pump. Two-stage pumps are the correct choice for all professional HVAC commissioning work.
How often should vacuum pump oil be changed?
After every major evacuation job, or every 3–4 residential jobs as a minimum. Always change oil before commissioning critical systems and immediately if the oil appears dark or milky.
Can I use any oil in a vacuum pump?
No. Always use vacuum pump oil specifically formulated for refrigeration vacuum pumps. Incorrect oil reduces performance and can damage the pump.
What CFM vacuum pump do I need for VRF systems?
VRF and VRV systems typically require 12 CFM or above to achieve sub-250 micron targets within a practical timeframe. Some engineers use multiple pumps in parallel on very large systems.
