R32 vs R410A — What Engineers Need to Know

R32 has become the dominant refrigerant for new residential air conditioning installations across the UK. If you're still primarily working with R410A systems, understanding the practical differences between these two refrigerants — and what changes in your commissioning workflow — is now essential knowledge for any professional HVAC engineer.

This guide covers the key technical differences between R32 and R410A, A2L safety requirements, tooling implications, pressure differences, and F-Gas compliance considerations.

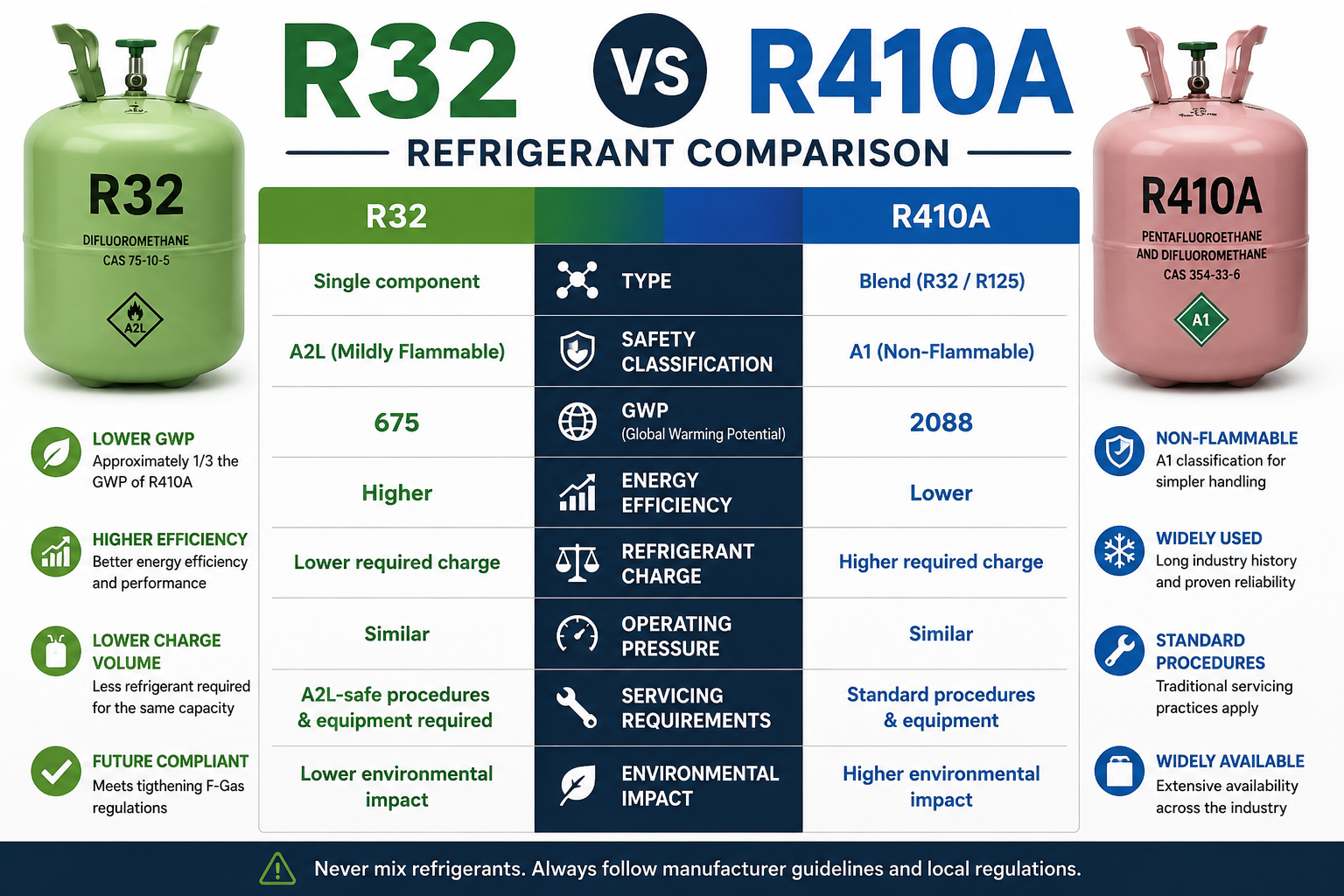

R32 vs R410A: Key Properties at a Glance

GWP and F-Gas Phase-Down

R410A has a GWP of 2,088 — more than three times that of R32 at 675. Under UK and EU F-Gas regulations, high-GWP refrigerants are subject to progressive phase-down through quota restrictions on bulk HFC supply. R410A is directly affected by these restrictions.

R32's lower GWP of 675 makes it significantly more compliant with F-Gas phase-down targets, which is why virtually all major AC manufacturers — Daikin, Mitsubishi Electric, Samsung, LG, Panasonic, and others — have transitioned their residential split system ranges to R32.

For engineers, this means:

• New residential split installations are almost exclusively R32
• R410A systems will remain in service for many years but new equipment is being phased out
• Servicing and topping up R410A systems will become more expensive as supply tightens
• F-Gas records must correctly identify the refrigerant type on every system

A2L Flammability — What It Means in Practice

The most significant practical difference between R32 and R410A is flammability classification. R410A is A1 — non-flammable. R32 is A2L — mildly flammable.

A2L means R32 has a lower flammability limit (LFL) and can ignite under specific conditions — but it requires a relatively high concentration in air (14.4% by volume) and an ignition source to do so. It will not ignite from a spark in normal field conditions, but it cannot be treated identically to A1 refrigerants.

Practical A2L safe working requirements:

• Adequate ventilation in the work area before and during refrigerant handling
• No ignition sources (open flames, sparks, non-rated electrical equipment) in the immediate work area
• A2L-rated vacuum pump for evacuation
• A2L-compatible recovery machine and cylinder
• Leak detection equipment capable of detecting R32
• Awareness of charge size limits in occupied spaces (manufacturer and building regulation dependent)

Most modern AC equipment is designed and tested for R32 use. The risk profile is manageable with correct working practices — but engineers must not apply R410A procedures unchanged to R32 systems.

Pressure Differences

R32 operates at higher pressures than R410A. The critical pressure of R32 is 57.8 bar versus 49.0 bar for R410A. This has implications for:

• Pressure testing — nitrogen test pressures for R32 systems are higher. Always refer to the manufacturer's commissioning documentation for the specified test pressure. Do not apply R410A test pressures to R32 systems.
• Manifold gauge sets — ensure your manifold gauge set is rated for R32 operating pressures. Most modern digital manifolds cover R32, but older analogue sets may not.
• Hose ratings — verify hose pressure ratings are appropriate for R32 working pressures.
• Discharge temperature — R32 systems run higher discharge temperatures than R410A equivalents. This is normal and expected — do not confuse high discharge temperature with a fault on R32 systems.

Tooling Requirements for R32

Vacuum Pump

Standard vacuum pumps are not rated for A2L refrigerants. For R32 evacuation, use a pump specifically rated for A2L use. The Javac CC-141-A2L is the most widely used A2L-rated vacuum pump in the UK professional market and is specifically engineered for R32, R1234yf, and R290 systems.

See our full comparison: Mastercool vs Javac Vacuum Pumps.

Recovery Machine

Use a recovery machine rated for A2L refrigerants when recovering R32. Standard recovery machines may not be rated for A2L use — check manufacturer specifications before use on R32 systems.

Manifold Gauge Set

Ensure your manifold gauge set includes R32 on its refrigerant scale and is rated for R32 operating pressures. Most modern digital manifolds are R32-compatible — verify before use.

Leak Detection

Use leak detection equipment capable of detecting R32. Most modern electronic refrigerant detectors cover R32, but verify the specification of older equipment.

Micron Gauge and Evacuation

Standard digital micron gauges are compatible with R32 evacuation. Evacuation procedure and target micron levels are the same as for R410A systems — below 500 microns for residential splits, below 250 microns for VRF systems.

See our full evacuation guide: How to Evacuate an AC System Correctly.

Refrigerant Charge Differences

R32 has a higher refrigerating effect per kg than R410A, which means R32 systems typically require a lower charge weight than an equivalent R410A system. Always charge to the manufacturer's specified weight — do not use R410A charge weights on R32 systems.

Pipe run correction factors also differ between R32 and R410A. Always refer to the specific manufacturer's installation manual for the correct additional charge per metre of pipe run.

Oil Compatibility

Both R32 and R410A use polyolester (POE) oil. However, R32 and R410A systems must not be cross-contaminated — use dedicated recovery cylinders for each refrigerant type and ensure manifold hoses are purged between different refrigerant systems.

R32 and R410A must never be mixed in the same system. They are different refrigerants with different thermodynamic properties and cannot be blended on site.

Nitrogen Pressure Testing on R32 Systems

Nitrogen pressure testing procedure is the same for R32 and R410A systems, but test pressures differ due to R32's higher operating pressures. Always refer to the manufacturer's commissioning documentation for the correct test pressure — do not apply R410A test pressures to R32 systems.

See our full guide: Nitrogen Pressure Testing for HVAC Systems.

Common R32 Commissioning Mistakes

• Using a non-A2L-rated vacuum pump — standard pumps are not rated for R32 evacuation
• Applying R410A test pressures to R32 systems — R32 requires higher test pressures per manufacturer specification
• Confusing high discharge temperature with a fault — R32 runs higher discharge temperatures than R410A; this is normal
• Using R410A charge weights — R32 requires lower charge weight; always use manufacturer-specified values
• Not verifying manifold gauge R32 compatibility — older analogue manifolds may not cover R32 pressure range
• Mixing R32 and R410A — never acceptable under any circumstances
• Ignoring A2L ventilation requirements — adequate ventilation is required when handling R32

See our full guide: Common HVAC Commissioning Mistakes.

Frequently Asked Questions

Is R32 safe to work with?

R32 is A2L — mildly flammable. It requires A2L-rated tooling, adequate ventilation, and no ignition sources during handling. It is not dangerous when handled correctly, but it cannot be treated identically to R410A.

Can I use my existing R410A vacuum pump on R32 systems?

Standard vacuum pumps are not rated for A2L refrigerants. Use an A2L-rated pump such as the Javac CC-141-A2L for R32 evacuation.

What is the GWP of R32 compared to R410A?

R32 has a GWP of 675 versus R410A at 2,088 — approximately 68% lower. This makes R32 significantly more compliant with F-Gas phase-down targets.

Can R32 and R410A be mixed?

No. They must never be mixed. Always recover refrigerant fully before working on a system and use dedicated recovery cylinders for each refrigerant type.

Is R410A being phased out in the UK?

R410A is subject to F-Gas phase-down due to its high GWP. New equipment using R410A is being phased out, with manufacturers transitioning to R32. Existing R410A systems will remain in service for many years but new installations are increasingly R32.
